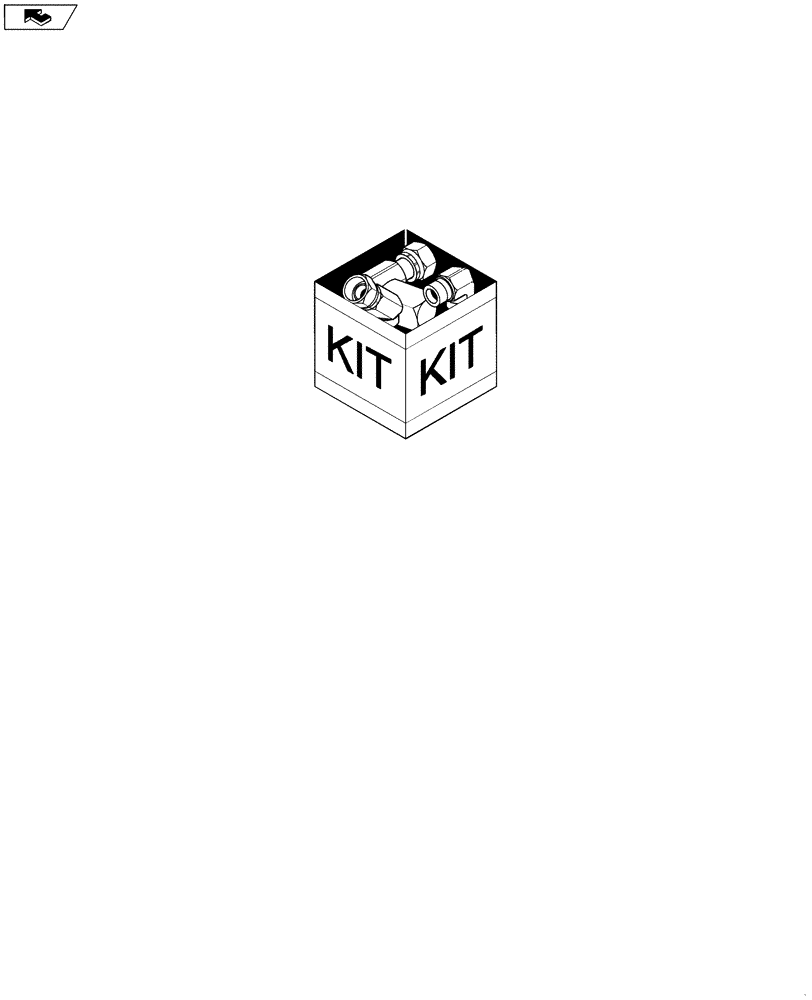

Запчасти Case IH STEIGER 500 (88.035.07) - DIA KIT - MEGAFLOW / TWINFLOW - WHEELED (88) - ACCESSORIES

1

84159461

KIT

MegaFlow / TwinFlow, Incl 2 - 44

1шт.

2

201-125

HYD CONNECTOR,11/16"-16 ORFS x 7/16"-20 ORB

1шт.

3

201-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

1шт.

4

86597761

HYD CONNECTOR,13/16"-16 ORFS x M27 x 2.0 ORB

1шт.

5

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

1шт.

6

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

1шт.

7

87301491

45 ELBOW

10 ORFS X 7/8-14 ORB

1шт.

8

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

9

84299709

CLAMP,38mm ID

Hose Mounting

1шт.

10

429414A1

COVER PLATE,70mm L x 30mm W x 3mm Thk

1шт.

11

84299706

BRACKET, SUPPORTING

HiFlow Hose Support

1шт.

12

84178463

HYDRAULIC PUMP,85 CC

MegaFlow, 85CC, Refer To 35.106.06

1шт.

13

A14141

FLANGE

Split Half Clamp 2.0

4шт.

14

84195080

FLANGE

Hydrostatic Pump

1шт.

15

84194169

HYD TUBE

Mega Supply

1шт.

16

84260065

HOSE ASSY.,25.4mm ID x 3460mm L, SAE 100R17

Supply, HiFlow

1шт.

17

84260066

HOSE ASSY.

Load Sense, HiFlow

1шт.

18

84225629

HOSE ASSY.

Suction, HiFlow

1шт.

19

84282889

HOSE ASSY.

Drain, HiFlow

1шт.

20

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

21

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

22

827-6080

BOLT,Hex, M6 x 80mm, Cl 10.9

2шт.

23

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

24

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

25

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.

26

827-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

4шт.

27

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

28

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

29

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

30

238-5345

O-RING,0.21" Thk x 3.975" ID, -345, Cl 5, 75 Duro

1шт.

31

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

32

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

33

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

3шт.

34

221579A1

PLUG,M22 x 1.5 ORB

1шт.

35

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

1шт.

36

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

37

238-6029

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

1шт.

38

700-148

HYD CONNECTOR,2" - 12 Male ORFS x M48 x 2 Male ORB

1шт.

39

NSS

NOT SOLD SEPARAT

Filter Assembly, Dual, HiFlow, Refer To 35.300.05

1шт.

40

84191470

ADAPTER

Dual Filter

1шт.

41

84183785

HYD TUBE

Filter Inlet, HiFlow

1шт.

42

84543509

HYD TUBE

Filter Outlet, HiFlow, Start Serial: ZCF131137

1шт.

43

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

4шт.

44

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.
