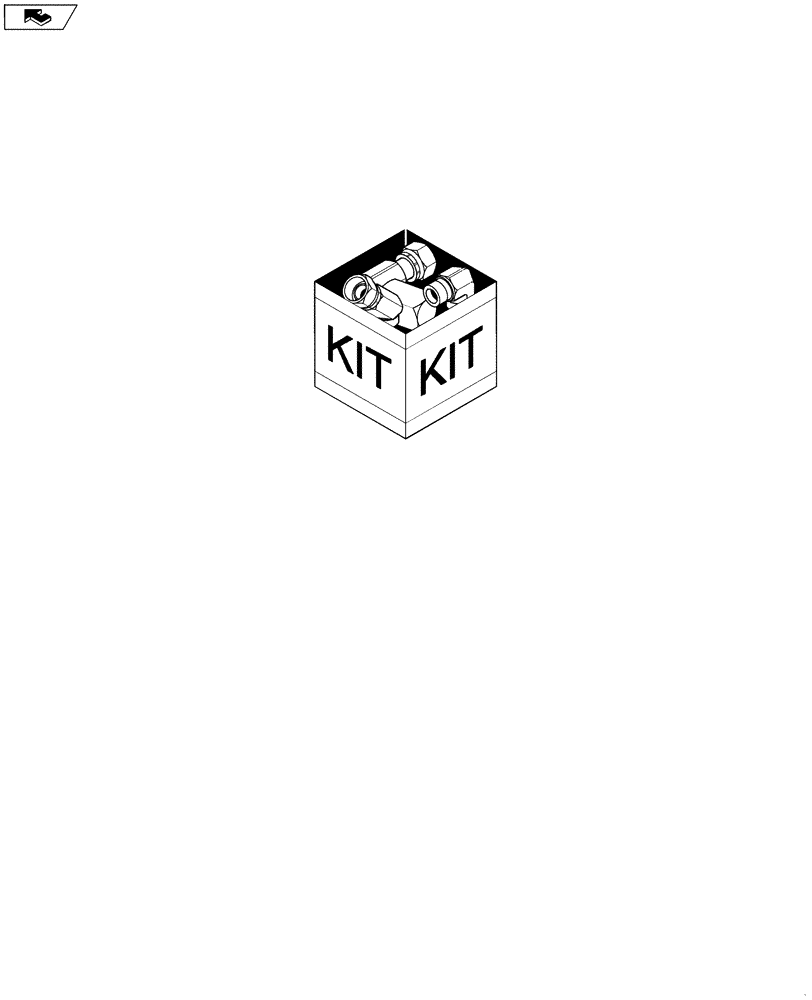

Запчасти Case IH STEIGER 500 (88.035.06) - DIA KIT - POWER BEYOND COUPLER & LOW PRESSURE MOTOR RETURN (88) - ACCESSORIES

1

84307668

KIT

Power Beyond Coupler & Low Pressure Return, Incl 2 - 15

1шт.

2

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

3

436249A1

FITTING

Bulkhead, 3/4 - 16 ORB x 13/16 - 14 ORFS

1шт.

4

298291A1

COUPLING, QUICK, FEM,Assembly, 3/4"

3/4 Auxiliary Coupler

2шт.

4

445015A1

SEAL KIT

For Ref 1

1шт.

5

294603A1

BODY

1/4 Auxiliary Coupler

1шт.

6

84305996

TUBE

Motor Return

1шт.

7

442477A2

BRACKET

Motor Drain

1шт.

8

385357A1

COUPLING

Female Disconnect

1шт.

9

701-903

NUT,13/16" - 16

1шт.

10

334216A1

CAP

Dust, 3/4 Coupler

2шт.

11

334218A1

CAP

Dust, 1/4 Coupler

1шт.

12

86539389

DUST CAP,29.2mm ID

Plug, Rubber

1шт.

13

347756A1

QUICK MALE COUPLING,ISO 6.3, 1/4" x 9/16" - 18, Fem SAE ORB

Nipple, 1/4 Body x 9/16-18 ORB

1шт.

14

347755A1

COUPLING,ISO 20, 3/4" x 1 1/16" - 12, Fem SAE ORB

Nipple, 3/4 Body x 1 1/16-12 ORB

2шт.

15

385358A1

QUICK MALE COUPLING,3/8"

3/8

1шт.
