Запчасти Case IH STEIGER 500 (88.035.04) - DIA KIT - 6 TO 8 EHR VALVES - CAB & ELECTRICAL COMPONENTS (88) - ACCESSORIES

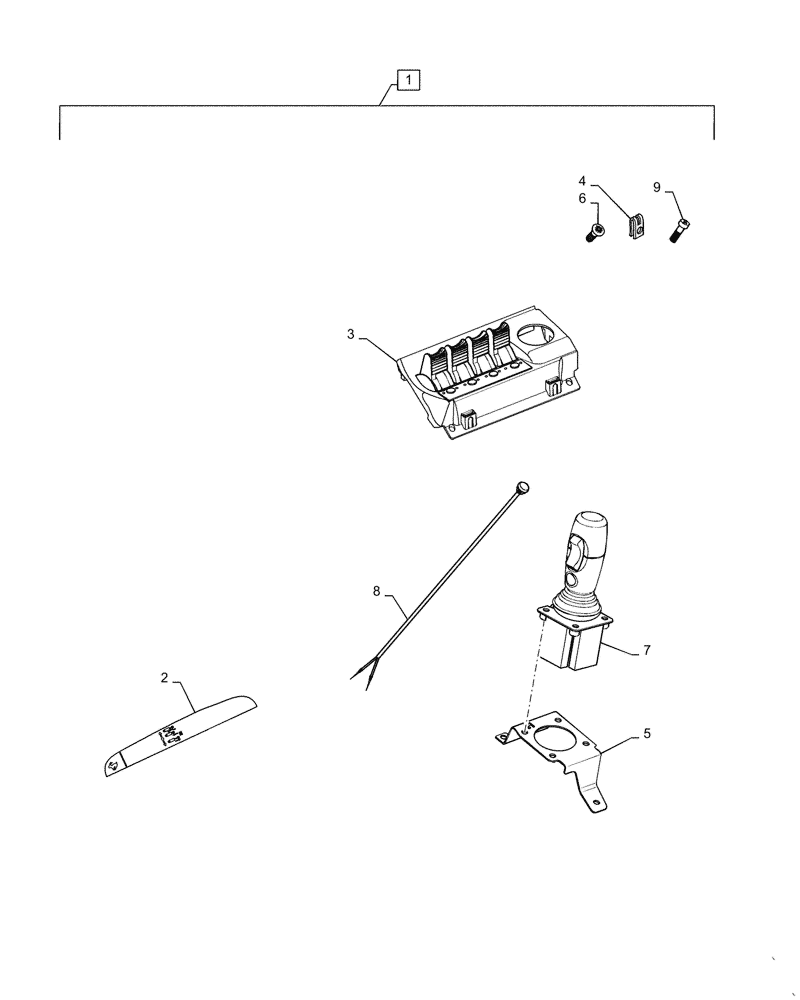

Схема запчастей Case IH STEIGER 500 - (88.035.04) - DIA KIT - 6 TO 8 EHR VALVES - CAB & ELECTRICAL COMPONENTS (88) - ACCESSORIES
4
2
3
9
5
8
6
7
1

Артикул

Название

Примечание

Количество

1

84319336

KIT

6 To 8 EHR Valves, Cab & Electrical Components, Incl 3 - 10

1шт.

2

84126448

DECAL

EHR W/ Joystick

1шт.

3

84202321

TOGGLE SWITCH

Assembly, 4 & 8 EHR, Refer To 55.440.04

1шт.

4

14369071

SPRING NUT,4.8mm x 14.6mm x 4mm

5шт.

5

84202338

BRACKET

Joystick

1шт.

6

15687901

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 9.50mm

2шт.

7

84208738

JOYSTICK

Assembly

1шт.

7

84208738R

REMAN-JOYSTICK

QUADTRAC« 450, QUADTRAC« 500, QUADTRAC« 550, QUADTRAC« 600, STEIGER 500, STEIGER 550, STEIGER 600 ALL (4/11-)

1шт.

7

84208738C

CORE-JOYSTICK

Return Number

1шт.

8

87485775

SWITCH ASSY

Joystick Float

1шт.

9

86639293

HEX SOC SCREW,M4 x 12mm, Cl 8.8

4шт.

Выбрано товаров: 11
