Запчасти Case IH STEIGER 500 (88.035.02) - DIA KIT - 4 TO 6 EHR VALVES - CAB & ELECTRICAL COMPONENTS (88) - ACCESSORIES

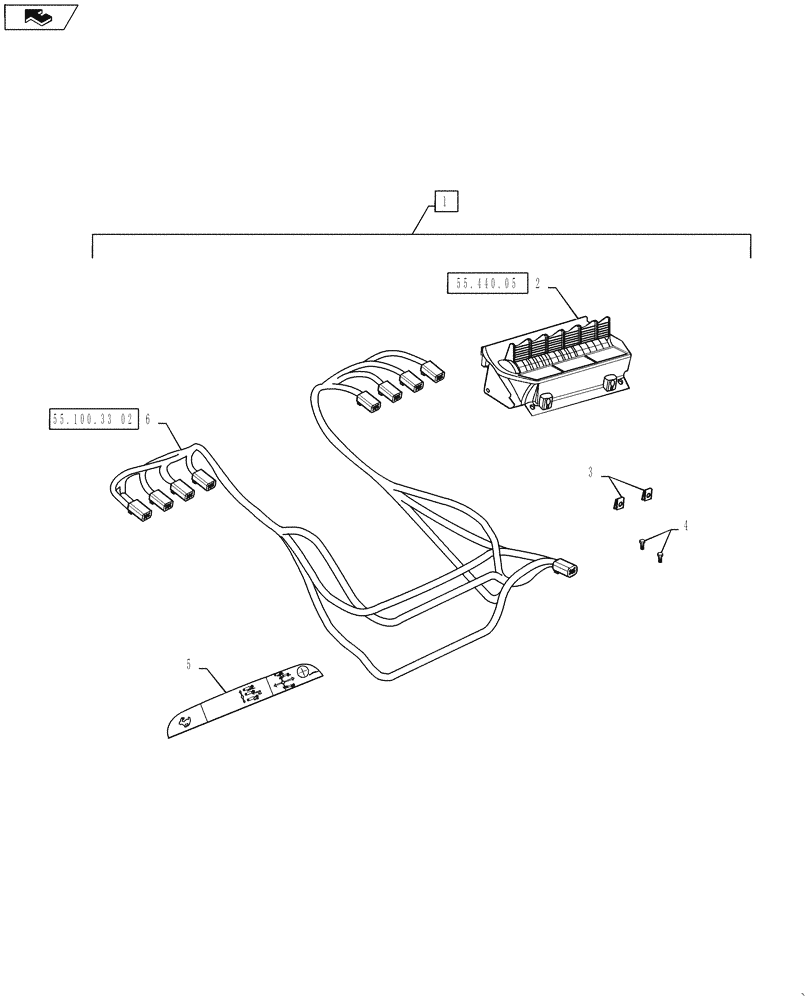

Схема запчастей Case IH STEIGER 500 - (88.035.02) - DIA KIT - 4 TO 6 EHR VALVES - CAB & ELECTRICAL COMPONENTS (88) - ACCESSORIES
1
2
5
4
home
3
55.440.05
55.100.33 02
6

Артикул

Название

Примечание

Количество

1

84330953

KIT

4 To 6 EHR Valves, Cab & Electrical Components, Incl 2 - 12

1шт.

2

84235842

SET OF LEVERS

6 Remotes, Refer To 55.440.05; Incl Wire Harnesses, NSS

1шт.

3

84148337

SPRING NUT

Spring, 4.8 x 14.6 x 7 ZND

5шт.

4

13276421

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 8.8, Full Thd

2шт.

5

84126455

DECAL

EHR, 6 Levers

1шт.

6

84158327

WIRE HARNESS

EHR Valves, 6 & 8 Spool, Refer To 55.100.33(02)

1шт.

7

L18331

CABLE TIE,375.9mm L, Nylon, Black

6шт.

Not Shown

1шт.

8

435437A1

CABLE TIE,3/16" x 7 1/4"

1шт.

Not Shown

1шт.

9

86637999

CLAMP,19mm, Coat, 11.9mm Bolt Hole, P Type

2шт.

Not Shown

1шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

Not Shown

1шт.

11

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

Not Shown

1шт.

12

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

Not Shown

1шт.

Выбрано товаров: 18
