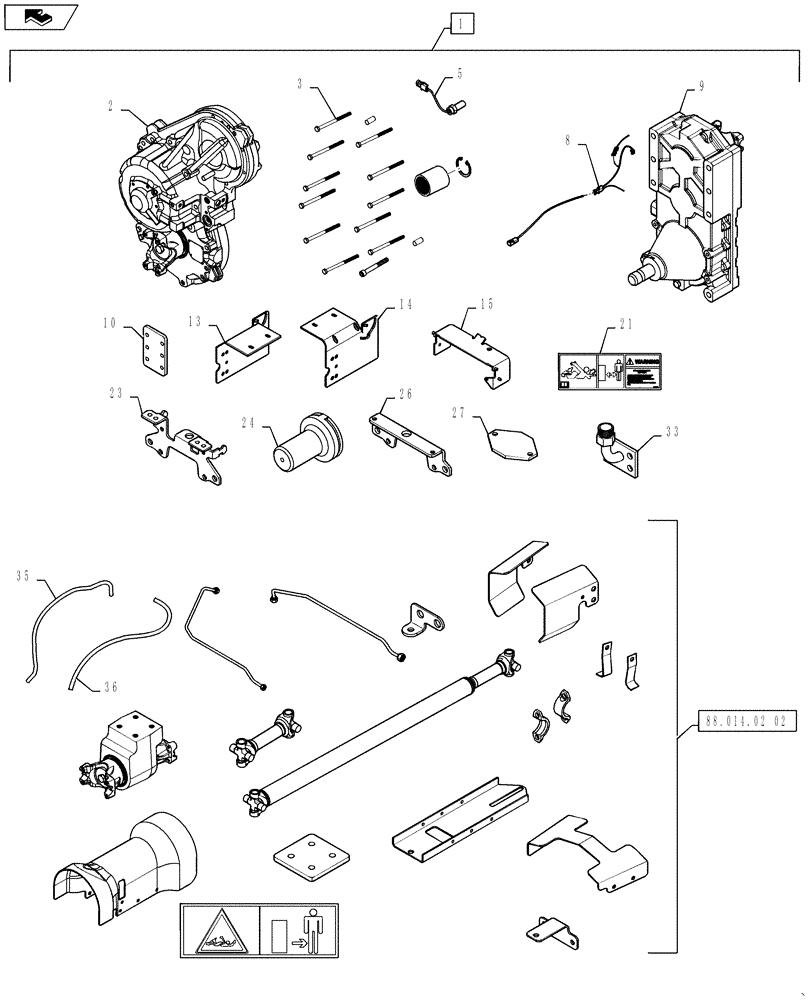

Запчасти Case IH STEIGER 500 (88.014.02[01]) - DIA KIT - PTO (EUROPE) (88) - ACCESSORIES

1

84366439

KIT

PTO (Euro), Incl 2 - 40, Also Incl Parts on Fig 88.014.02 (02)

1шт.

2

84317510

DRIVE

PTO, Clutch W/ Aux Pump Drive, Refer To 14.102.03

1шт.

3

84211194

KIT

PTO Mounting, Refer To 14.102.01

1шт.

4

435437A1

CABLE TIE,3/16" x 7 1/4"

1шт.

Not Shown

1шт.

5

47942959

VR Speed, 40mm Thread Length

SENSOR

1шт.

6

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

Not Shown

1шт.

7

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

Not Shown

1шт.

8

84311770

HARNESS

PTO, Refer To 55.100.32

1шт.

9

403073A1

GEARBOX ASSY

PTO Transfer Case, Refer To 14.102.07

1шт.

403073A1R

REMAN-PTO GEARBOX A.

QUADTRAC® 450, QUADTRAC® 500, QUADTRAC® 550, QUADTRAC® 600 & STEIGER 500, STEIGER 550, STEIGER 600 all (4/11-)

1шт.

403073A1C

CORE-PTO GEARBOX A.

Return Number

1шт.

10

405394A1

BRACE

PTO Shield Mounting

2шт.

11

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

10шт.

Not Shown

1шт.

12

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

Not Shown

1шт.

13

84416945

SHIELD

PTO, Right

1шт.

14

84416949

SHIELD

PTO, Left

1шт.

15

84416980

SHIELD

PTO, Flip-Up

1шт.

16

892-11012

LOCK WASHER,M12

4шт.

Not Shown

1шт.

17

829-1412

NUT,M12, Cl 10.9

4шт.

Not Shown

1шт.

18

365853A1

SPRING

PTO Shield

2шт.

Not Shown

1шт.

19

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

Not Shown

1шт.

20

733-2012

COTTER PIN,M2 x 12

2шт.

Not Shown

1шт.

21

327567A3

DECAL

PTO Safety

1шт.

22

392706A1

DECAL

PTO Safety ISO

1шт.

23

84271889

BRACKET

Optional PTO

1шт.

24

383716A1

SHIELD

PTO

1шт.

25

827-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

4шт.

Not Shown

1шт.

26

405398A1

BRACKET

1шт.

27

90390

COVER

Wire Harness

1шт.

28

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

Splitter Box

2шт.

29

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4шт.

Not Shown

1шт.

30

701-411

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

Not Shown

1шт.

31

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

1шт.

Not Shown

1шт.

32

84199773

FITTING

Orifice, 3mm

1шт.

Not Shown

1шт.

33

86992408

FITTING

Tube Adapter, PTO Drop Box

1шт.

34

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

1шт.

Not Shown

1шт.

35

84212098

HOSE ASSY.

PTO Lube Return, Wheeled

1шт.

36

84212099

HOSE ASSY.

PTO Lube Supply

1шт.

37

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

Not Shown

1шт.

38

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

Not Shown

1шт.

39

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

Not Shown

1шт.

40

L18331

CABLE TIE,375.9mm L, Nylon, Black

Nylon, 15

1шт.

Not Shown

1шт.
