Запчасти Case IH STEIGER 500 (88.014.01) - DIA KIT - PTO (NON-EUROPE) (88) - ACCESSORIES

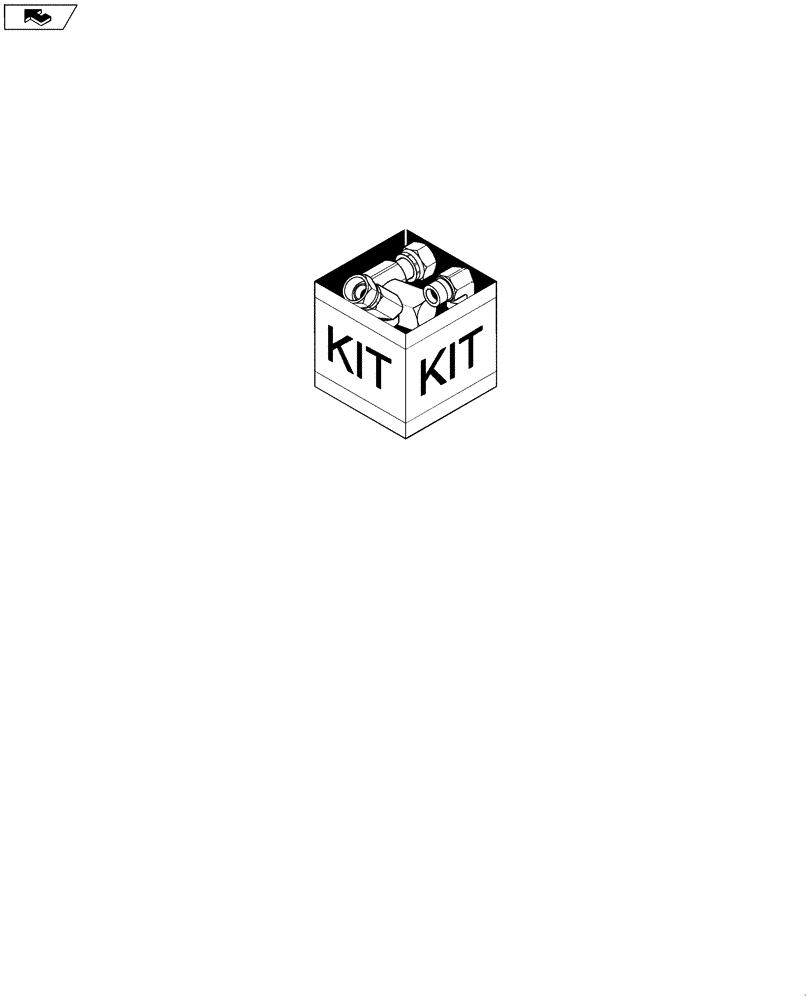

Схема запчастей Case IH STEIGER 500 - (88.014.01) - DIA KIT - PTO (NON-EUROPE) (88) - ACCESSORIES
home

Артикул

Название

Примечание

Количество

1

84366438

KIT

PTO (Non-Euro), Incl 2 - 64

1шт.

2

47874120

INSTRUCTION

Manual

1шт.

3

84211194

KIT

PTO Mounting, Refer To 14.102.01

1шт.

4

435437A1

CABLE TIE,3/16" x 7 1/4"

1шт.

5

87449451

SENSOR

VR Speed, 40mm Thread Length

1шт.

6

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

7

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

8

84311770

HARNESS

PTO, Refer To 55.100.32

1шт.

9

403073A1

GEARBOX ASSY

PTO Transfer Case, Refer To 14.102.07

1шт.

403073A1R

REMAN-PTO GEARBOX A.

QUADTRAC® 450, QUADTRAC® 500, QUADTRAC® 550, QUADTRAC® 600 & STEIGER 500, STEIGER 550, STEIGER 600 all (4/11-)

1шт.

403073A1C

CORE-PTO GEARBOX A.

Return Number

1шт.

10

405394A1

BRACE

PTO Shield Mounting

2шт.

11

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

10шт.

12

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

13

84416945

SHIELD

PTO, Right

1шт.

14

84416949

SHIELD

PTO, Left

1шт.

15

84416980

SHIELD

PTO, Flip-Up

1шт.

16

892-11012

LOCK WASHER,M12

4шт.

17

829-1412

NUT,M12, Cl 10.9

4шт.

18

365853A1

SPRING

PTO Shield

2шт.

19

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

20

733-2012

COTTER PIN,M2 x 12

2шт.

21

327567A3

DECAL

PTO Safety

1шт.

22

392706A1

DECAL

PTO Safety ISO

1шт.

23

84271889

BRACKET

Optional PTO

1шт.

24

383716A1

SHIELD

PTO

1шт.

25

827-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

4шт.

26

405398A1

BRACKET

1шт.

27

47412194

COVER

Wire Harness

1шт.

28

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

Splitter Box

2шт.

29

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4шт.

30

701-411

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

31

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

1шт.

32

84199773

FITTING

Orfice, 3mm

1шт.

33

86992408

FITTING

Tube Adapter, PTO Drop Box

1шт.

34

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

1шт.

35

84212098

HOSE ASSY.

PTO Lube Return, Wheeled

1шт.

36

84212099

HOSE ASSY.

PTO Lube Supply

1шт.

37

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

38

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

39

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

40

L18331

CABLE TIE,375.9mm L, Nylon, Black

Nylon, 15

1шт.

41

84214140

HOSE ASSY.

PTO Lube Return, QuadTrac

1шт.

42

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

43

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

44

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

45

700-345

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

46

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

47

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

48

84283861

BRACKET

PTO Clutch Tube Support

1шт.

49

84283540

HYD TUBE

PTO Clutch Lube, PS4 Transmission

1шт.

50

84283542

HYD TUBE

PTO Clutch Control, PS4 Transmission

1шт.

51

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

52

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

53

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

54

84283544

HYD TUBE

PTO Clutch Lube, PS6 Transmission

1шт.

55

84283546

HYD TUBE

PTO Clutch Control, PS6 Transmission

1шт.

56

404603A1

BEARING ASSY

PTO Hanger, Refer To 14.102.10

1шт.

57

404798A1

SHAFT

PTO Articulation, Refer To 14.102.10

1шт.

58

404799A1

DRIVE SHAFT

PTO Rear, Refer To 14.102.10

1шт.

59

L116943

SECURING STRAP

8шт.

60

868-10020

12 PT SCREW,M10 x 20mm, Cl 12.9

16шт.

61

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

62

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

4шт.

63

827-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 10.9

4шт.

64

84317510

DRIVE

PTO, Clutch W/ Aux Pump Drive, Refer To 14.102.03

1шт.

Выбрано товаров: 66
