Запчасти Case IH STEIGER 500 (88.014.01[02]) - DIA KIT - PTO (NON-EUROPE) (88) - ACCESSORIES

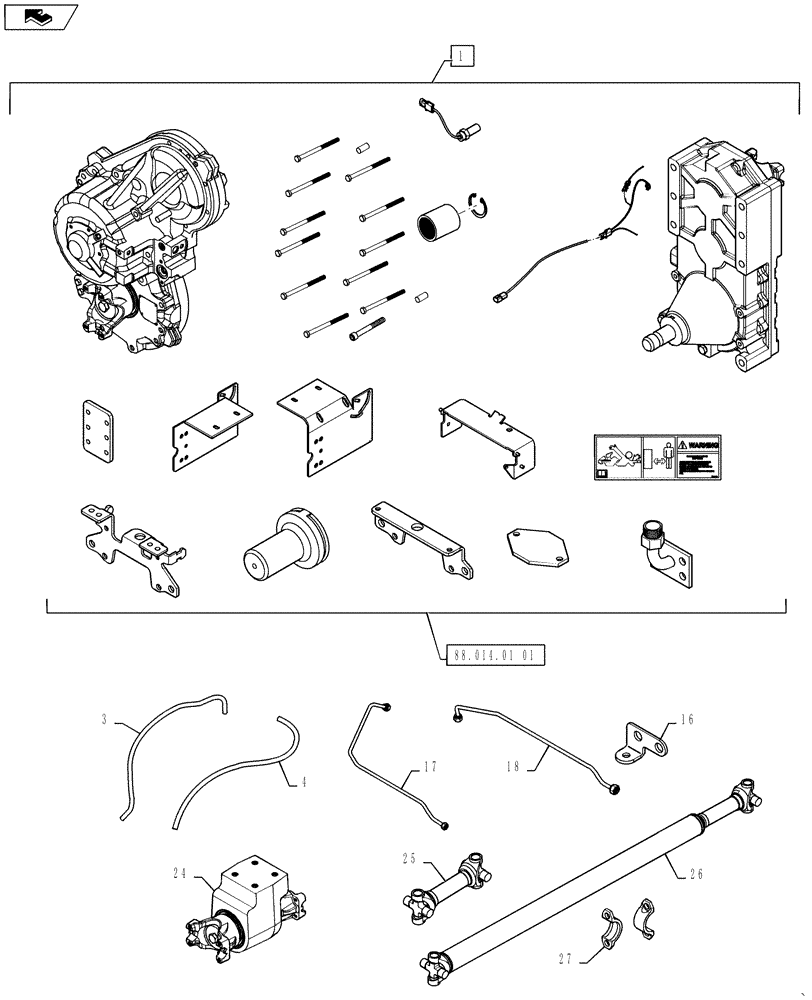

Схема запчастей Case IH STEIGER 500 - (88.014.01[02]) - DIA KIT - PTO (NON-EUROPE) (88) - ACCESSORIES
24
4
16
25
17
88.014.01 01
3
1
27
home
18
26

Артикул

Название

Примечание

Количество

1

84366438

KIT

PTO (Non-Euro), Incl 2 - 31, Also Incl Parts on Fig 88.014.01 (01)

1шт.

2

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

1шт.

Not Shown

1шт.

3

84212098

HOSE ASSY.

PTO Lube Return, Wheeled

1шт.

4

84212099

HOSE ASSY.

PTO Lube Supply

1шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

Not Shown

1шт.

6

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

Not Shown

1шт.

7

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

Not Shown

1шт.

8

L18331

CABLE TIE,375.9mm L, Nylon, Black

Nylon, 15

1шт.

Not Shown

1шт.

9

84214140

HOSE ASSY.

PTO Lube Return, QuadTrac

1шт.

Not Shown

1шт.

10

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

Not Shown

1шт.

11

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

Not Shown

1шт.

12

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

Not Shown

1шт.

13

700-345

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

Not Shown

1шт.

14

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

Not Shown

1шт.

15

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

Not Shown

1шт.

16

84283861

BRACKET

PTO Clutch Tube Support

1шт.

17

84283540

HYD TUBE

PTO Clutch Lube, PS4 Transmission

1шт.

18

84283542

HYD TUBE

PTO Clutch Control, PS4 Transmission

1шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

Not Shown

1шт.

20

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

Not Shown

1шт.

21

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

Not Shown

1шт.

22

84283544

HYD TUBE

PTO Clutch Lube, PS6 Transmission

1шт.

Not Shown

1шт.

23

84283546

HYD TUBE

PTO Clutch Control, PS6 Transmission

1шт.

Not Shown

1шт.

24

404603A1

BEARING ASSY

PTO Hanger, Refer To 14.102.10

1шт.

25

404798A1

SHAFT

PTO Articulation, Refer To 14.102.10

1шт.

26

404799A1

DRIVE SHAFT

PTO Rear, Refer To 14.102.10

1шт.

27

L116943

SECURING STRAP

8шт.

28

868-10020

12 PT SCREW,M10 x 20mm, Cl 12.9

16шт.

Not Shown

1шт.

29

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

Not Shown

1шт.

30

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

4шт.

Not Shown

1шт.

31

827-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 10.9

4шт.

Not Shown

1шт.

Выбрано товаров: 52
