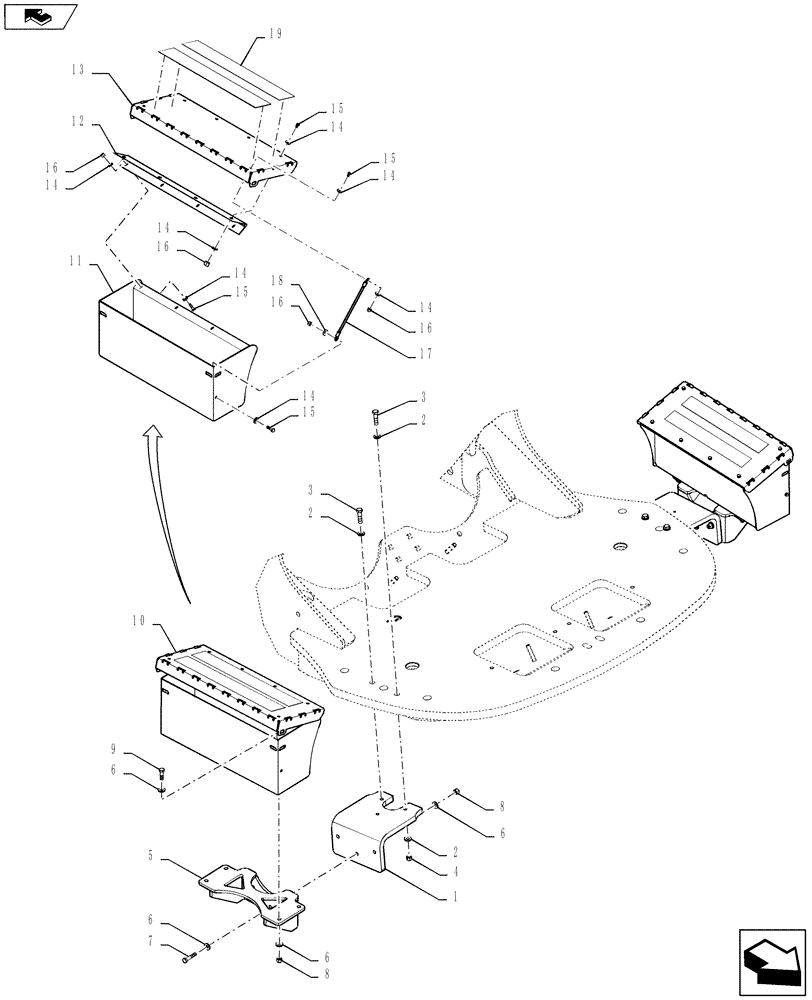

Запчасти Case IH STEIGER 500 (88.000.01) - TOOL BOX AND MOUNTING (88) - ACCESSORIES

1

84187145

BRACKET

Storage Box

2шт.

2

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

3

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

4шт.

4

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

5

84187148

BRACKET

Storage Box

2шт.

6

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

28шт.

7

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

6шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

14шт.

9

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

10

NS

NOT SERVICED

Storage Box Assembly, Incl 11 - 19

2шт.

11

84206438

BOX

Storage

1шт.

12

70-6748T1

HINGE

Storage Box

1шт.

13

84206439

LID

Storage Box

1шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

17шт.

15

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

9шт.

16

832-10406

NUT,M6 x 1, Cl 8

9шт.

17

87422371

CABLE

Retainer

1шт.

18

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

19

1-6835

ADHESIVE STRIP

Anti-Skid

2шт.
