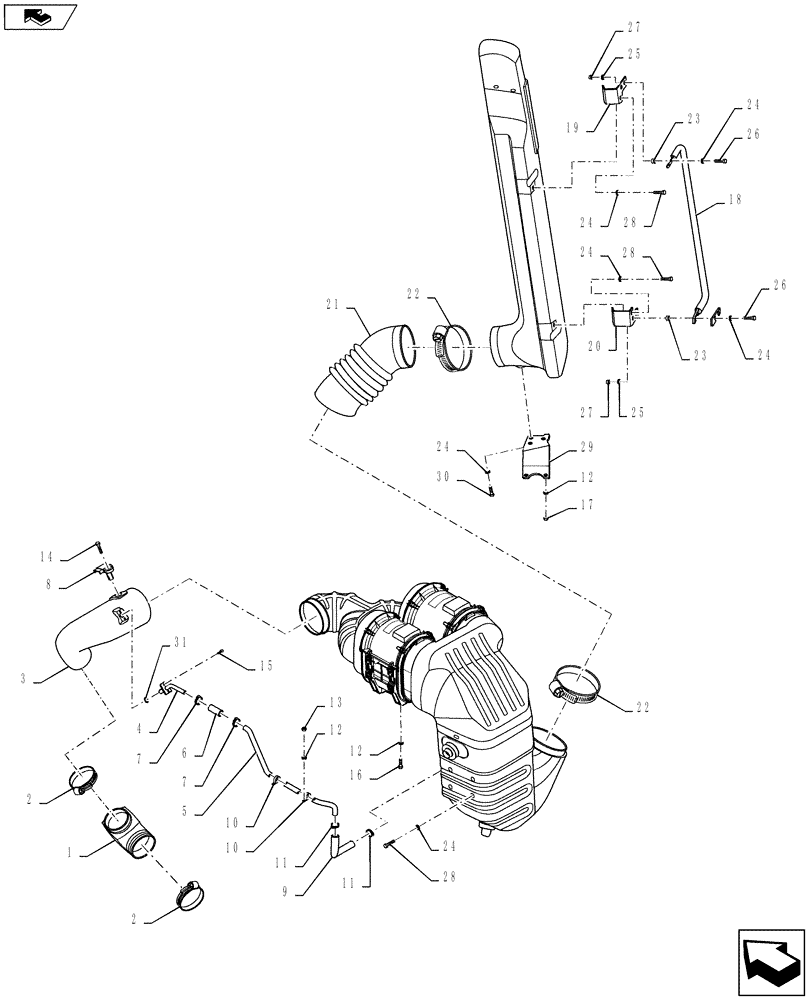

Запчасти Case IH STEIGER 500 (10.202.01[02]) - AIR INTAKE - STEIGER 500, QUADTRAC 450 & 500 (10) - ENGINE

1

84385558

AIR INTAKE TUBE

Turbo Hose Inlet

1шт.

2

84129690

CLAMP,5.44" - 5.75"

Hose, T-Bolt, #146 Spring 5.75/5.44 IN, Years: -01-JUN-12

2шт.

2

L129159

CLAMP,5-1/4" - 6-1/8", Worm Gear

, Start Year: 02-JUN-12

2шт.

3

84384816

TUBE

Air Intake - Pre- Cleaner

1шт.

4

84211661

RETURN PIPE

CCV

1шт.

5

84216944

VENTILATION PIPE

Breather

1шт.

6

87486602

HOSE

Breather To Breather Tube

1шт.

7

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

8

87482355

SENSOR

Temp. / Humidity Sensor

1шт.

9

84216946

HOSE

Breather 1" ID 14" Length

1шт.

10

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

2шт.

11

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

2шт.

12

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

12шт.

13

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

14

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

Flange, M6 X 16 FULL 10.9 ZND

2шт.

15

87698753

FLANGE BOLT,M6 x 12mm, Cl 10.9, Full Thd

Flange, M6 X 12 FULL 10.9 ZND

2шт.

16

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

9шт.

17

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

18

84255661

HANDLE

Grab

1шт.

19

84354283

BRACKET

Top Air Duct Mounting

1шт.

20

84354282

BRACKET

Bottom Air Duct Mounting

1шт.

21

84374254

BELLOWS

Rubber Intake HHP

1шт.

22

84270867

HOSE CLAMP,210mm - 232mm

8.25/9.125 Constant Torque

2шт.

23

434177A1

ISOLATOR

Mount Rubber

4шт.

24

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

31шт.

25

895-25010

WASHER,11mm ID x 30mm OD x 2.5mm Thk

4шт.

26

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

8шт.

27

832-46410

NUT,M10 x 1.5, Cl 8

8шт.

28

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

12шт.

29

84343284

BRACKET, SUPPORTING

Air Duct Support

1шт.

30

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

3шт.

31

238-6214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1шт.
