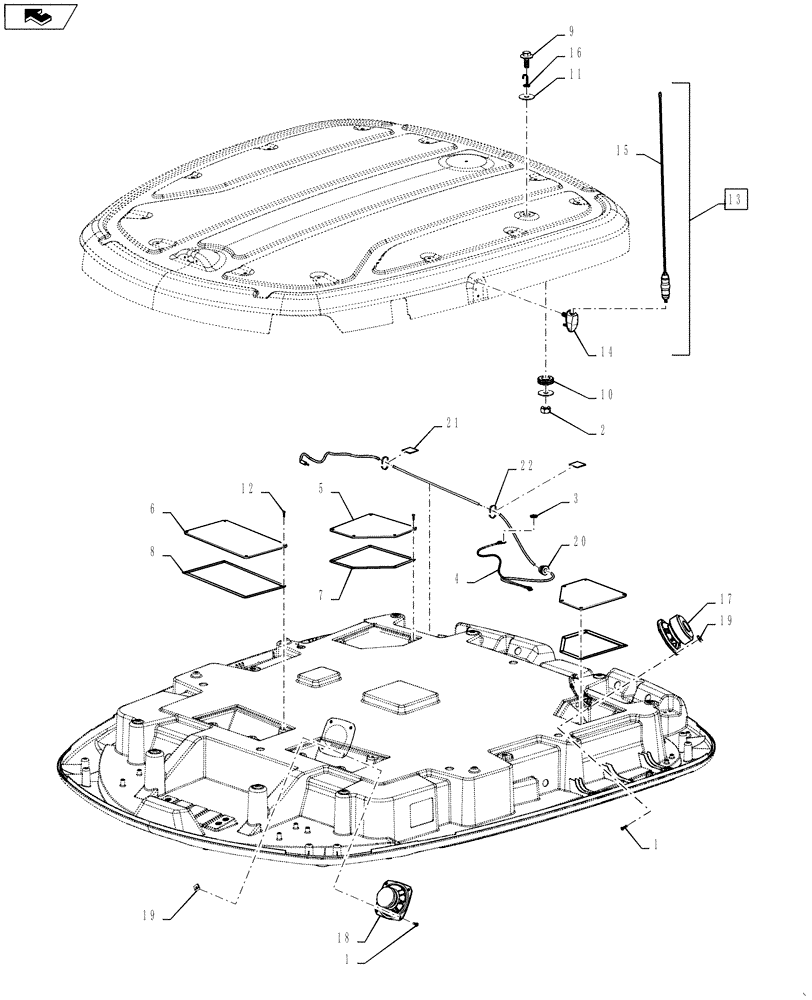

Запчасти Case IH STEIGER 500 (55.510.04) - SPEAKERS AND ANTENNA (55) - ELECTRICAL SYSTEMS

1

760-17316

SELF-TAP SCREW,Pan Hd, M4.2 x 16

16шт.

2

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

3

893-10008

LOCK WASHER,Ext Tooth, M8

1шт.

4

84140077

ANTENNA

Cable

1шт.

5

84303106

COVER

Rear Speaker

2шт.

6

84303108

COVER

Front Speaker

2шт.

7

84303116

SEAL

Foam, 773mm

2шт.

8

84303118

SEAL

Foam, 1016

2шт.

9

86015350

SCREW,Hex, M10 x 1.5 x 30mm, Cl 8.8

M10 x 1.5 x 30mm

1шт.

10

86026822

GROMMET,3/4" ID x 1-3/8" OD x 7/16" Thk

1шт.

11

86505938

WASHER

.40G x 1.39 x .075

2шт.

12

86900238

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 3/4"

18шт.

13

87471319

ANTENNA

Assembly

1шт.

14

87615704

ANTENNA

Base

1шт.

15

84143970

ANTENNA

Mast Assy

1шт.

16

87484206

HOOK

Antenna Restraint

1шт.

17

87576280

SPEAKER

Rear

2шт.

18

87621241

SPEAKER

Front

2шт.

19

177269A1

SPRING NUT,M4.2

16шт.

20

182049A1

GROMMET

1шт.

21

435436A1

RUBBER MOUNTING

2шт.

22

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.
