Запчасти Case IH STEIGER 500 (55.100.36) - HARNESS, BATTERY EQUALIZER - EUROPE ONLY (55) - ELECTRICAL SYSTEMS

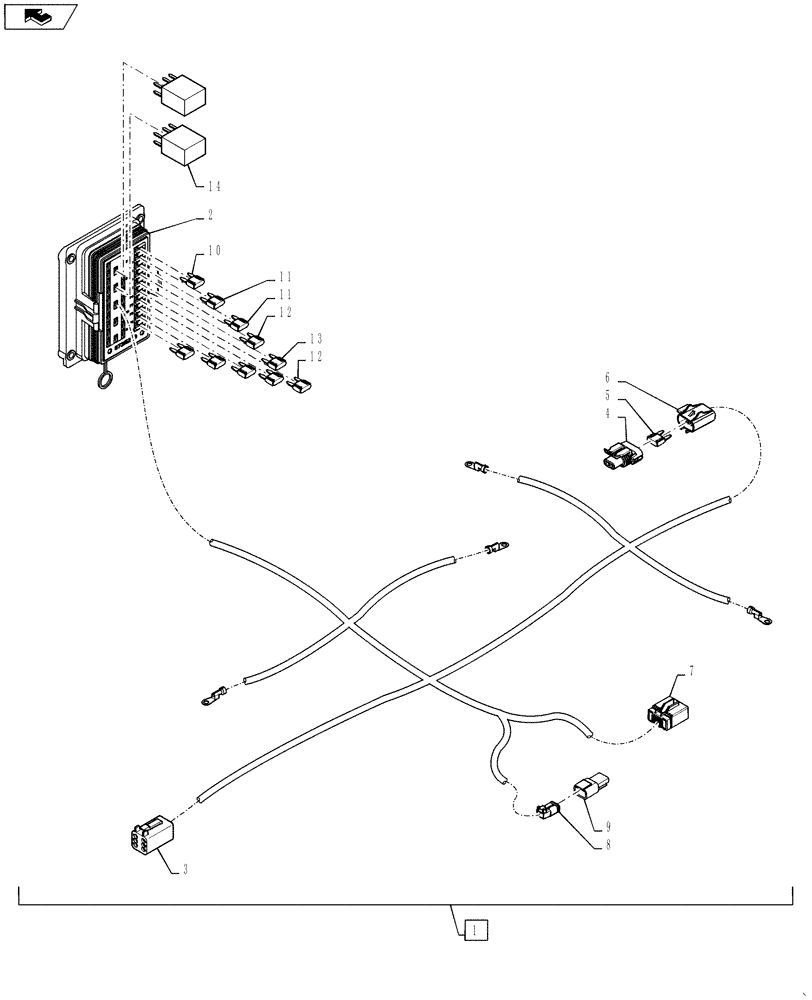

Схема запчастей Case IH STEIGER 500 - (55.100.36) - HARNESS, BATTERY EQUALIZER - EUROPE ONLY (55) - ELECTRICAL SYSTEMS
6
5
home
14
10
11
8
1
4
2
9
3
11
7
12
13
12

Артикул

Название

Примечание

Количество

1

84406525

WIRE HARNESS

Battery Equalizer - 24 Volt System

1шт.

2

87315249

FUSE BOX

1шт.

3

225351C1

ELEC CONNECTOR,Female, 6 Pin

Battery Equalizer (C155)

1шт.

4

NSS

NOT SOLD SEPARAT

Connector, Packard P/N: 12085030 (C128M)

1шт.

5

A149804

FUSE

30A

1шт.

6

NSS

NOT SOLD SEPARAT

Cover , Fuse, Packard P/N: 12146104

1шт.

7

87382923

ELEC CONNECTOR,Male, 10 Cavities

10 Pin, To Front Frame Harness (C135M)

1шт.

8

225316C1

ELEC CONNECTOR,Female, 2 Pin

To Front Frame Harness (C310M)

1шт.

9

225315C1

ELEC CONNECTOR,Male, 2 Pin

To Front Frame Harness (DC310F)

1шт.

10

121414A1

FUSE,20A, Mini, Yellow

1шт.

11

121410A1

FUSE,5A, Mini, Tan

2шт.

12

121412A1

FUSE,10A, Mini, Red

2шт.

13

121413A1

FUSE,15A, Mini, Blue

1шт.

14

87655334

RELAY,12V, 35A, Micro

NOX 24V, Key Switch

2шт.

Выбрано товаров: 14
