Запчасти Case IH STEIGER 500 (55.100.31) - HARNESS - FRONT & REAR MARKER LIGHTS (EUROPE) (55) - ELECTRICAL SYSTEMS

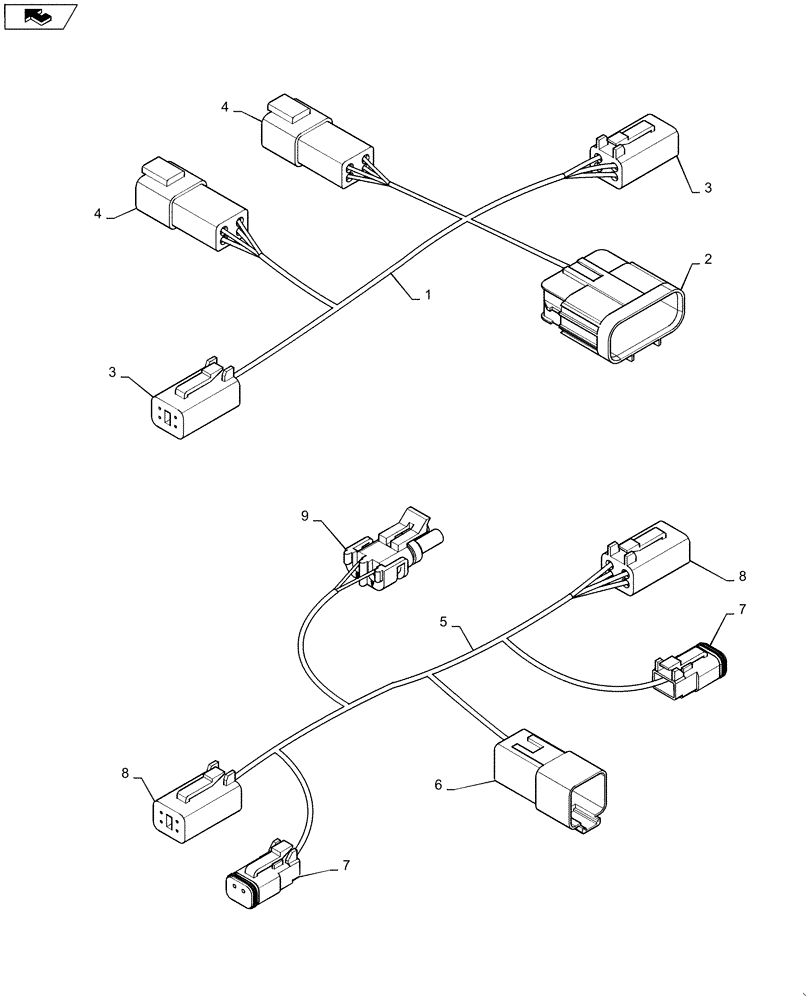

Схема запчастей Case IH STEIGER 500 - (55.100.31) - HARNESS - FRONT & REAR MARKER LIGHTS (EUROPE) (55) - ELECTRICAL SYSTEMS
1
4
5
6
2
3
9
3
8
home
7
8
7
4

Артикул

Название

Примечание

Количество

1

84367630

WIRE HARNESS

Front Marker Lights, Europe, Incl 2 - 4

1шт.

2

87698254

ELEC CONNECTOR

To Front Frame Harness, C300F

1шт.

3

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

Left & Right Marker Lamp, C301, C302

2шт.

4

225326C1

ELEC CONNECTOR,Male, 4 Pin

Left & Right Headlamp, Euro, C303, C304

2шт.

5

84374405

WIRE HARNESS

Rear Marker Lights, Europe, Incl 6 - 9

1шт.

6

225350C1

ELEC CONNECTOR,Male, 6 Pin

To Rear Frame Harness, C252F

1шт.

7

225316C1

ELEC CONNECTOR,Female, 2 Pin

Left & Right Position Lamp, C256, C257

2шт.

8

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

Left & Right Marker Lamp, C254, C255

2шт.

9

245482C1

ELEC CONNECTOR,2 Pin

Liscense Plate Lamp, C253

1шт.

Выбрано товаров: 9
