Запчасти Case IH STEIGER 500 (55.100.29) - HARNESS - ISO, CHASSIS & CAB (55) - ELECTRICAL SYSTEMS

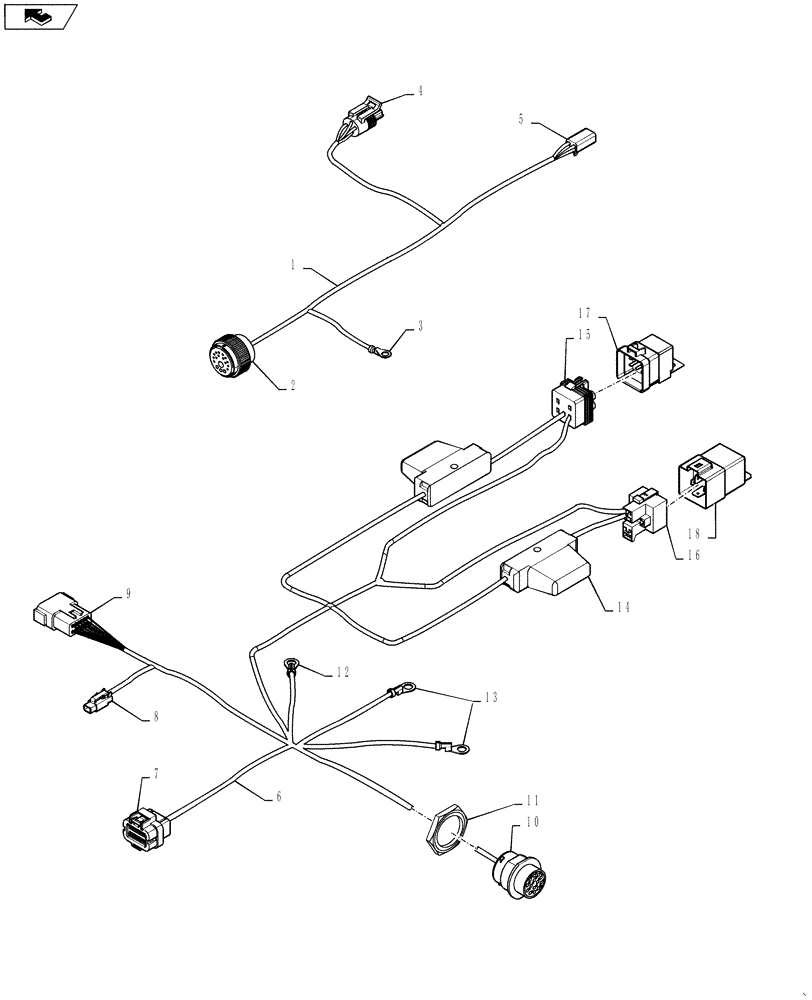

Схема запчастей Case IH STEIGER 500 - (55.100.29) - HARNESS - ISO, CHASSIS & CAB (55) - ELECTRICAL SYSTEMS
14
1
3
15
11
9
16
12
10
4
13
17
18
7
2
5
8
home
6

Артикул

Название

Примечание

Количество

1

84198786

HARNESS

ISO Chassis, Incl 2 - 5

1шт.

2

84178653

ELEC CONNECTOR

To ISO Cab Harness, C008M

1шт.

3

PL

PROCURE LOCALLY

Ring Terminal, M10 Stud

1шт.

4

87533827

ELEC CONNECTOR,Female

IMP Breakaway, C862M

1шт.

5

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

Implement Bus, C863M

1шт.

6

84198808

HARNESS

ISO Cab, Incl 7 - 18

1шт.

7

87410946

MULTIPOLE CONNECTOR,Female, 34 Cavities

To Tractor ECU (TECU), C088F

1шт.

8

222135A1

CONNECTOR, ELEC

To Antenna, C848M

1шт.

9

223682A1

ELEC CONNECTOR

To Main Cab Harness, C608F

1шт.

10

84177899

ELEC CONNECTOR

To ISO Chassis Harness, C008F

1шт.

11

87696184

NUT

Locking

1шт.

12

PL

PROCURE LOCALLY

Ring Terminal, M13 Stud

1шт.

13

PL

PROCURE LOCALLY

Ring Terminal, M10 Stud

2шт.

14

NSS

NOT SOLD SEPARAT

In-Line Fuse Holder

2шт.

15

297910A1

ELEC CONNECTOR,Female, 5 Pin

Low Power Relay, C851

1шт.

16

310220A1

TERMINAL CONNECTOR

High Power relay, C850

1шт.

17

293256A2

RELAY,12V

Low Power

1шт.

18

84172275

RELAY

High Power

1шт.

Выбрано товаров: 18
