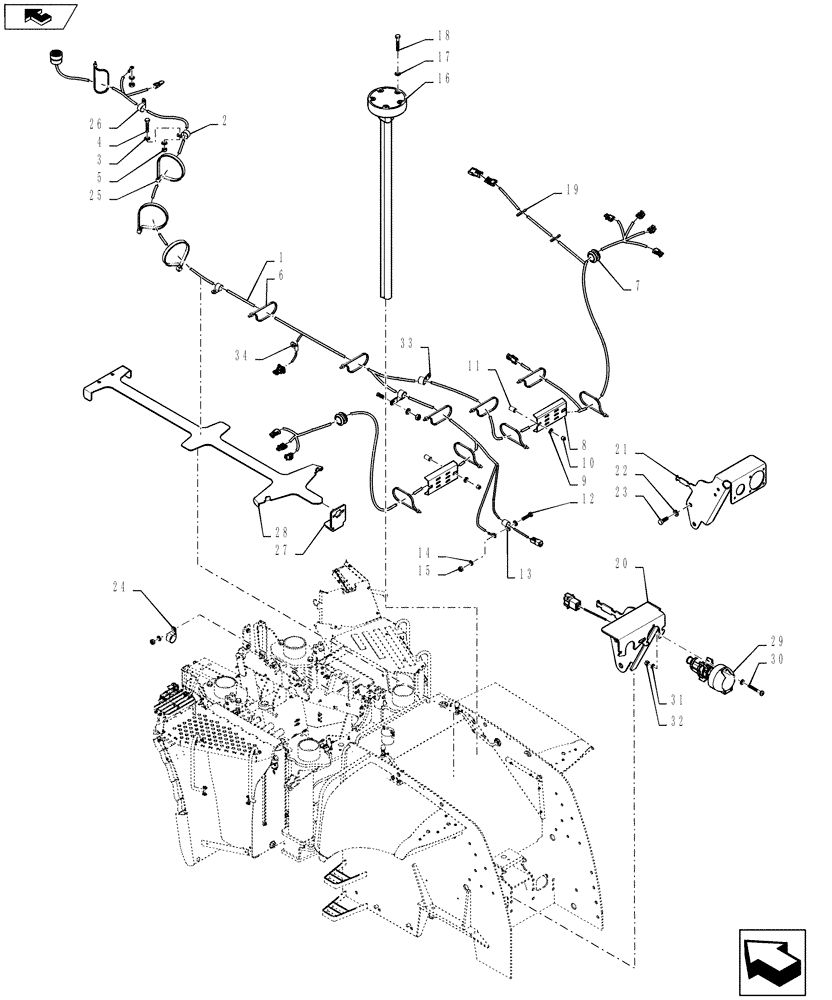

Запчасти Case IH STEIGER 500 (55.100.13) - HARNESSES - REAR FRAME WIRING LAYOUT (EUROPE) (55) - ELECTRICAL SYSTEMS

1

84293940

HARNESS

Rear Frame

1шт.

Refer To 55.100.15

1шт.

2

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

2шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

4

614-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

1шт.

5

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

9шт.

6

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15" IN

13шт.

7

328265A1

GROMMET

Rubber

2шт.

8

84345696

COVER

Rear Wiring Access

2шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

11

47564256

SPACER,11mm ID x 15.9mm OD x 24mm L

16mm OD 10mm ID 24mm

4шт.

12

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

13

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

1шт.

14

892-11010

LOCK WASHER,M10

1шт.

15

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

16

87393112

SENSOR

Fuel Level

1шт.

17

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

8шт.

18

814-5030

BOLT,Hex, M5 x 0.8 x 30mm, Cl 8.8

5шт.

19

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

7шт.

20

84345626

BRACKET

7-Pin And TPH Bulkhead

1шт.

21

84345625

BRACKET

AFS And ISO Bulkhead

1шт.

22

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

23

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

24

515-23508

CLAMP,2", Insul, 3/8" Bolt

1шт.

25

440567A1

CABLE TIE

Tie

3шт.

26

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

27

84197692

BRACKET

L

1шт.

28

84367859

MOUNT

Center Link Electrical, Serial Range: -ZCF129192

1шт.

28

84488090

MOUNTING PLATE

Center Link Electrical, Start Serial: ZCF129192

1шт.

29

84275821

HARNESS

7-Pin Trailer Adapter

1шт.

Refer To 55.100.15

1шт.

30

840-1535

SCREW,Pan, M5 x 35mm, Cl 4.8

3шт.

31

892-11005

LOCK WASHER,M5

3шт.

32

824-1405

NUT,M5, Cl 5

3шт.

33

R43926

CLAMP

90 Twist, 3/4 CLP, 3/8 MTG

2шт.

34

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

2шт.
