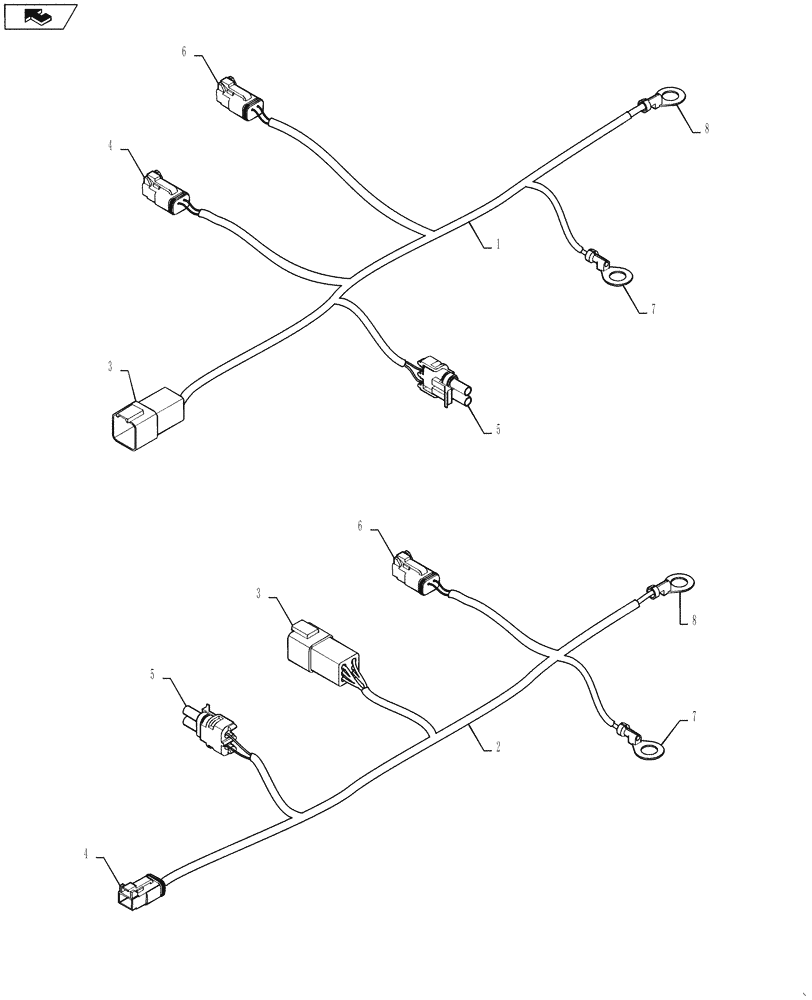

Запчасти Case IH STEIGER 500 (55.100.10) - HARNESS - HYDRAULIC SUB ASSEMBLY (55) - ELECTRICAL SYSTEMS

1

84250841

HARNESS

Hydraulic Sub Assembly, Wheeled

1шт.

2

84250842

HARNESS

Hydraulic Sub Assembly, QuadTrac

1шт.

3

225350C1

ELEC CONNECTOR,Male, 6 Pin

To Front Frame Harness, C131F

1шт.

4

225316C1

ELEC CONNECTOR,Female, 2 Pin

Park Brake Solenoid, C138

1шт.

5

245482C1

ELEC CONNECTOR,2 Pin

Park Brake Pressure Switch, C137M

1шт.

6

225316C1

ELEC CONNECTOR,Female, 2 Pin

Hydraulic Oil Temp, C132M

1шт.

7

PL

PROCURE LOCALLY

M10 Stud, Hydraulic Oil Filter Restriction Switch Ground, C129

1шт.

8

PL

PROCURE LOCALLY

M5 Stud, Hydraulic Oil Filter Restriction Switch, C136

1шт.
