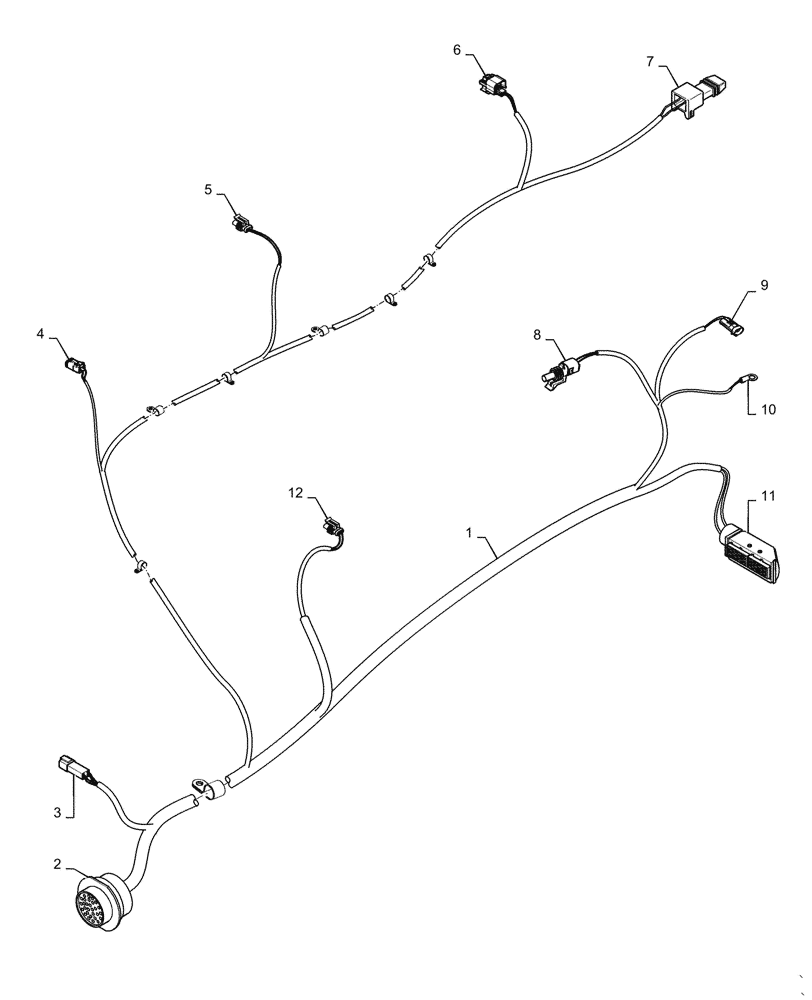

Запчасти Case IH STEIGER 500 (55.100.04[01]) - HARNESS - ENGINE - 13L SINGLE STAGE - STEIGER 500, QUADTRAC 450 & 500 (55) - ELECTRICAL SYSTEMS

1

504149935

HARNESS

Injector (Separate From 504269121) (Not Shown)

1шт.

1

84392267

WIRE HARNESS

Engine, 13L HHP

1шт.

2

87703918

TERMINAL CONNECTOR

To Front Main Harness, C100M

1шт.

3

225350C1

ELEC CONNECTOR,Male, 6 Pin

To Front Main Harness, C150F

1шт.

4

225316C1

ELEC CONNECTOR,Female, 2 Pin

Hydraulic Fan Solenoid, C172

1шт.

5

371614A1

ELEC CONNECTOR,Female, 2 Pin

Fuel Filter Restriction Switch, C178

1шт.

6

87709809

ELEC CONNECTOR

Temp/Humidity Sensor, C151

1шт.

7

291718A1

ELEC CONNECTOR,Female, 2 Pin

Air Filter Restriction Switch, C179

1шт.

8

245480C1

ELEC CONNECTOR,1 Pin

A/C High Pressure Switch, C174

1шт.

9

292549A1

CONNECTOR, ELEC

A/C High Pressure Switch, C175

1шт.

10

PL

PROCURE LOCALLY

M5 Stud To Alternator "D" Terminal, C177

1шт.

11

8602412

CONTACT

Housing, Vehicle Connector, C176

1шт.

11

8602413

COVER

Housing, Vehicle Connector, C176

1шт.

11

84130602

TERMINAL CONNECTOR

Vehicle Connector, C176

1шт.

12

371614A1

ELEC CONNECTOR,Female, 2 Pin

Grid Heater Relay, C173

1шт.
