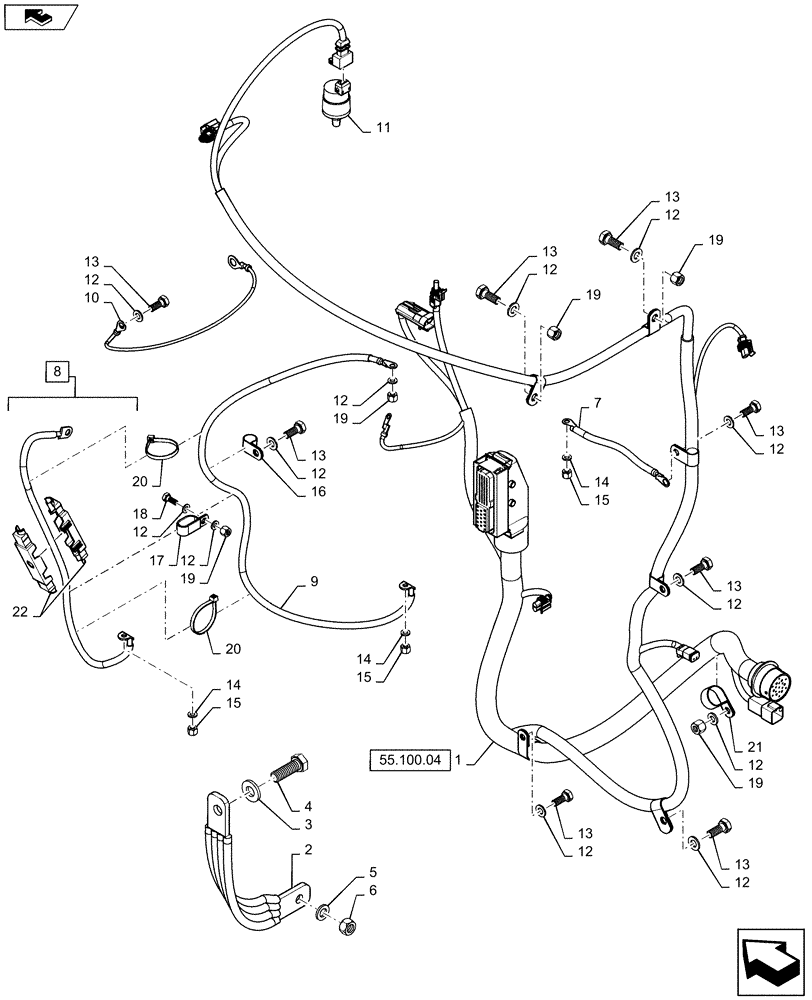

Запчасти Case IH STEIGER 500 (55.100.03[01]) - ENGINE HARNESS GROUP - 13L SINGLE STAGE - STEIGER 500, QUADTRAC 450 & 500 (55) - ELECTRICAL SYSTEMS

1

84392267

WIRE HARNESS

Engine, IVECO 13L Single Stage, Refer To 55.100.04(01)

1шт.

2

87362573

GROUND CABLE

Engine To Chassis Ground, 500 mm

1шт.

3

896-15018

WASHER,20mm ID x 41mm OD x 5mm Thk

1шт.

4

87384304

BOLT,Hex, M18 x 2 x 50mm, Cl 10.9

Hex Head, M18 X 2 X 50 CL 10.9 ZND

1шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

6

829-1412

NUT,M12, Cl 10.9

1шт.

7

87548592

CABLE

Grid Heater To Ground, 210 mm

1шт.

8

87542685

CABLE

Alternator To Grid Heater, W/ Fuse Assembly, Incl 22

1шт.

9

87548591

CABLE

Grid Heater Relay To Grid Heater, 900 mm

1шт.

10

87353517

GROUND CABLE

A/C Compressor, 325 mm

1шт.

11

293797A1

RESTRICTION SWITCH

Air, Male Thread

1шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

12шт.

13

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

8шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

15

832-10406

NUT,M6 x 1, Cl 8

3шт.

16

515-23175

CLAMP,11/16", Insul, 3/8" Bolt

1шт.

17

L101181

CLAMP,0.75" D Clamping pipes x 2

Insulated, Double, 19.1 Dia.

1шт.

18

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

19

832-10408

NUT,M8 x 1.25, Cl 8.8

5шт.

20

L11541

CABLE TIE,203.2mm L, Nylon

7-8 Inch Nylon

2шт.

21

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

22

87319927

FUSE

250 Amp (Not Shown)

1шт.
