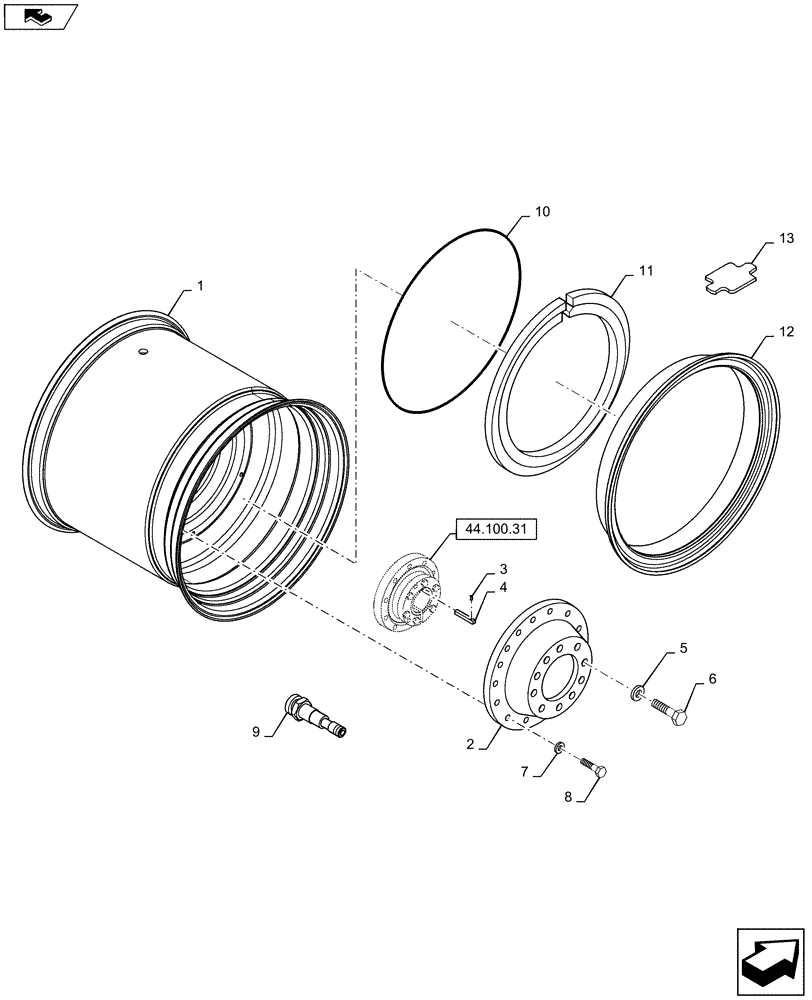

Запчасти Case IH STEIGER 500 (44.511.02) - WHEELS - DUAL HUB (44) - WHEELS

1

87756401

WHEEL ASSY

MW23A x 38, Dual Hub, Fits IF650/85R38

4шт.

1

87756399

WHEEL ASSY

MW27B x 38, Dual Hub, Fits IF800/70R38 or 850/60-38 R1W Tire

4шт.

1

84335368

RIM

42XF-DW30B-10-13.189 Dual Hub, Fits 900/60R42 Tire

4шт.

1

87312787

WHEEL

DWM44 x 32, 2.05 Outset Dual Hub, Incl 2, 10 - 13, Serial Range: -

4шт.

Scraper Tractors Only

1шт.

2

87380429

DISC

Demountable

4шт.

3

38-11608

LOCK PIN,1/4" x 1/2", Slotted

, Serial Range: -

4шт.

4

87380074

KEY

, Serial Range: -

4шт.

5

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

, Serial Range: -

40шт.

6

827-22080

BOLT,Hex, M22 x 2.5 x 80mm, Cl 10.9

, Serial Range: -

40шт.

7

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

64шт.

8

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

Outer Disc Install

64шт.

9

87380452

VALVE STEM

4шт.

10

87380444

O-RING,7mm Thk x 757mm ID, 65 Duro

32 Rim Base

4шт.

11

87380409

RING

Lock

4шт.

12

87380382

RING

Side, W/ Driver Pocket

4шт.

13

87380372

KEY

Driver

4шт.
