(05.100.03[01]) - FILTERS, 500 TIER 4A

Запчасти Case IH STEIGER 500 (05.100.03[01]) - FILTERS, 500 TIER 4A (05) - SERVICE & MAINTENANCE

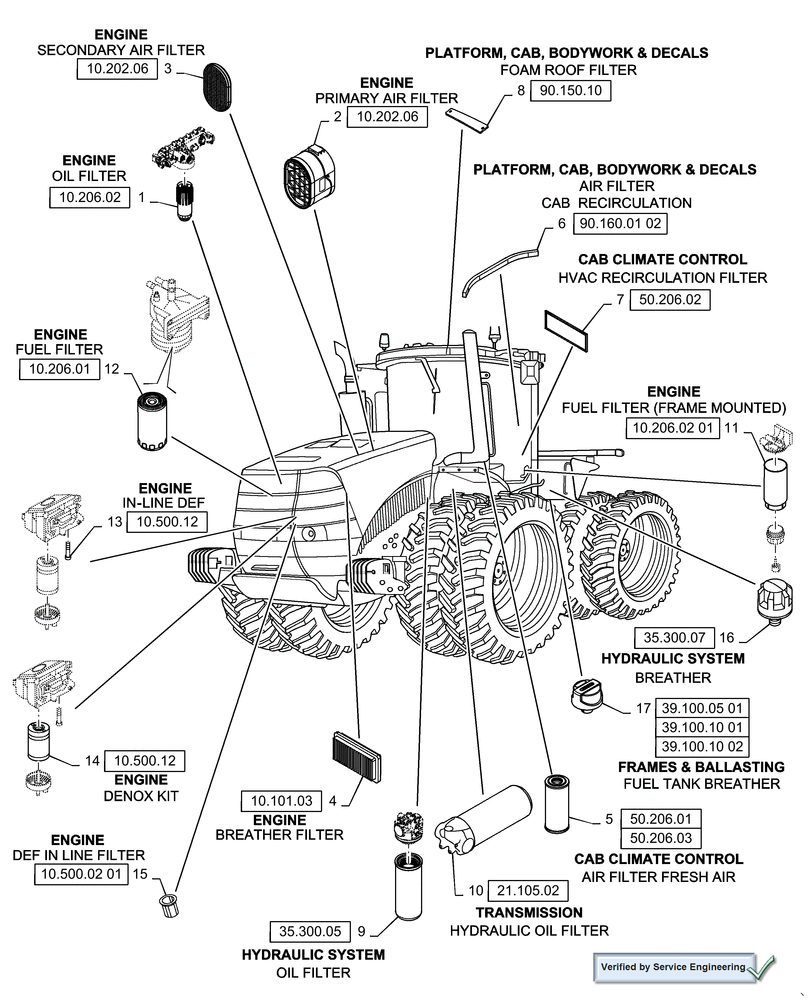

Схема запчастей Case IH STEIGER 500 - (05.100.03[01]) - FILTERS, 500 TIER 4A (05) - SERVICE & MAINTENANCE
10.500.12
21.105.02
11
15
9
1
3
5
10.206.02 01
10.101.03
10.500.02 01
39.100.10 01
50.206.02
8
90.150.10
4
10.202.06
50.206.03
13
7
10
39.100.10 02
6
10.206.02
35.300.05
50.206.01
90.160.01 02
39.100.05 01
10.500.12
35.300.07
17
16
2
14
10.206.01
10.202.06
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5801592277

FILTER

Engine Oil

1шт.

2

87356545

AIR FILTER

Primary

1шт.

3

87356547

AIR FILTER

Secondary

1шт.

4

504209107

AIR FILTER

Breather

1шт.

5

87684088

CAB FILTER,CAB

Cabin

1шт.

6

87409368

CAB FILTER

Recirculation

1шт.

7

87409377

FILTER

Recirculation

1шт.

8

84211797

AIR FILTER

Cab, Roof

1шт.

9

84196445

HYDRAULIC OIL FILTER

Spin-On

1шт.

10

47833556

HYDRAULIC OIL FILTER,98.8mm OD x 239.8mm L x 500 Microns

Transmission Spin-On

1шт.

11

84303715

FUEL FILTER

Frame Mounted

1шт.

12

84597068

FUEL FILTER

Engine Mounted

1шт.

13

84247272

FILTER,In-Line

DEF

1шт.

14

84254852

FILTER

Denox 2 Kit

1шт.

15

84367903

FILTER

DEF Element

1шт.

16

1971726C1

BREATHER,1/4" - 18

Hydraulic Tank

1шт.

17

84412494

BREATHER

Fuel Tank

1шт.

Выбрано товаров: 17
