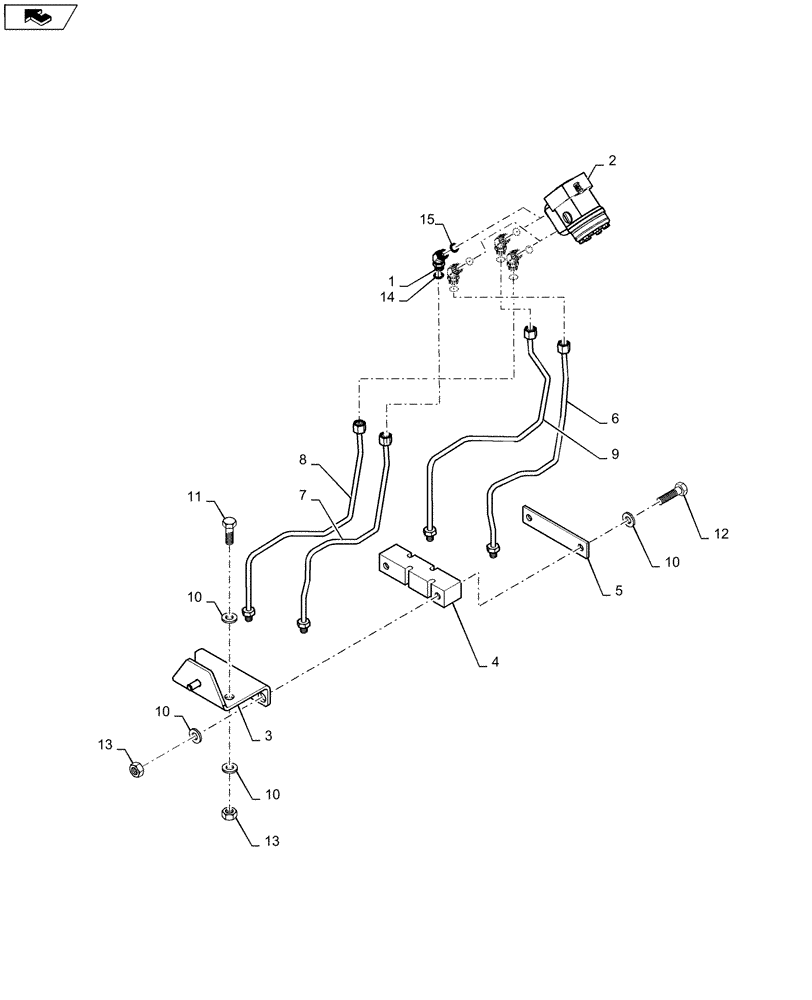

Запчасти Case IH STEIGER 500 (41.200.01[03]) - STEERING - HYDRAULIC CONTROL - WHEELED (41) - STEERING

1

700-446

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 14 - 15

4шт.

2

87667045

STEERING VALVE

Orbital, Pilot Steering

1шт.

3

84340158

BRACKET, SUPPORTING

Steering Support, Cab

1шт.

4

87403324

BRACKET

Hydraulic Tube Mounting

2шт.

5

87436024

MOUNTING PARTS

Bar Hose

2шт.

6

87312087

TUBE,9.52 mm OD

Port R, Signal Right

1шт.

7

87312089

TUBE,9.52 mm OD

Port L, Signal Left

1шт.

8

87312091

TUBE,9.52 mm OD

Port P, Signal Pressure

1шт.

9

87312093

TUBE,9.52 mm OD

Port T, Signal Tank

1шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

16шт.

11

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

12

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

2шт.

13

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

14

84432614

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

Incl in 1

4шт.

15

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Incl in 1

4шт.
