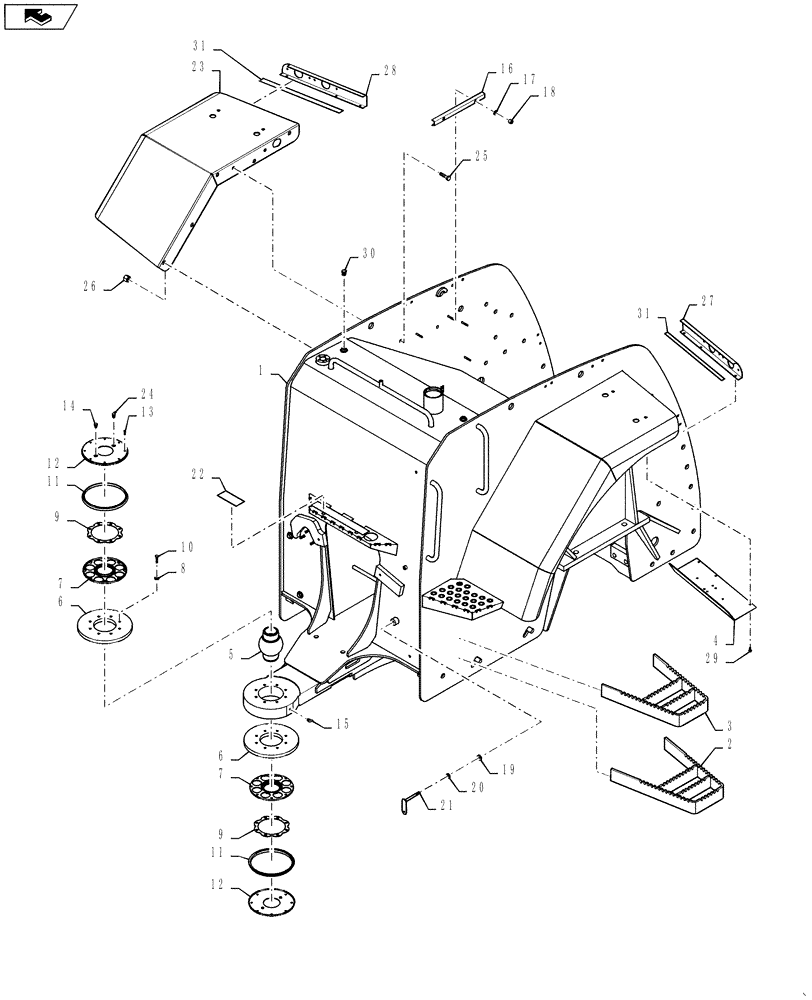

Запчасти Case IH STEIGER 500 (39.100.05[02]) - REAR FRAME / FUEL TANK AND FENDERS - STEIGER 500 ASN ZBF126024 (39) - FRAMES AND BALLASTING

1

47423459

FRAME

Rear, Incl 2 - 4

1шт.

For Breather and Filler Cap See Fig 39.100.10 (01) (North America) or 39.100.10 (02) (Europe)

1шт.

2

248672A1

STEP

Lower Rear

1шт.

3

249875A1

STEP

Center Rear

1шт.

4

426743A2

CHANNEL

Light LH

1шт.

5

87644205

BEARING ASSY,119mm ID x 139.7mm OD x 182mm W

Spherical Plain Extended

1шт.

6

84179787

RING

Retaining

2шт.

7

84151002

HOUSING

Assy

2шт.

8

432444A1

SPACER

Retainer

16шт.

9

87644212

RETAINING PLATE

2шт.

10

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

16шт.

11

84307902

RUBBER SEAL

Articulation Joint

2шт.

12

87644215

COVER

Articulation Joint

2шт.

13

463-61010

SCREW,Hex, #10 - 32 x 5/8"

16шт.

14

217-402

PLUG,Hex Hd, 1/8" - 27 NPT

3шт.

15

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

16

84348150

CHANNEL

Wire Guide

3шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

18

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

19

321232A1

BUSHING,11mm ID x 31mm OD x 6mm L

Rubber

2шт.

20

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

8шт.

21

406390A1

HANDLE

Linkage Channel

1шт.

22

87750668

PAD,2" x 4-1/2"

Non-Slip

3шт.

23

47423433

FENDER

RH, Rear, Years: -30-SEP-15

1шт.

23

48024644

FENDER

RH, Rear

1шт.

24

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

, Start Year: 01-OCT-15

1шт.

25

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

26

832-10412

NUT,M12 x 1.75, Cl 8

5шт.

27

84162377

COVER

RH Fender Light

1шт.

28

84162390

COVER

LH Fender Light

1шт.

29

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

6шт.

30

217-410

PLUG,Hex Hd, 1/2" - 14 NPT

2шт.

31

47419481

SEAL

Foam Fender

2шт.
