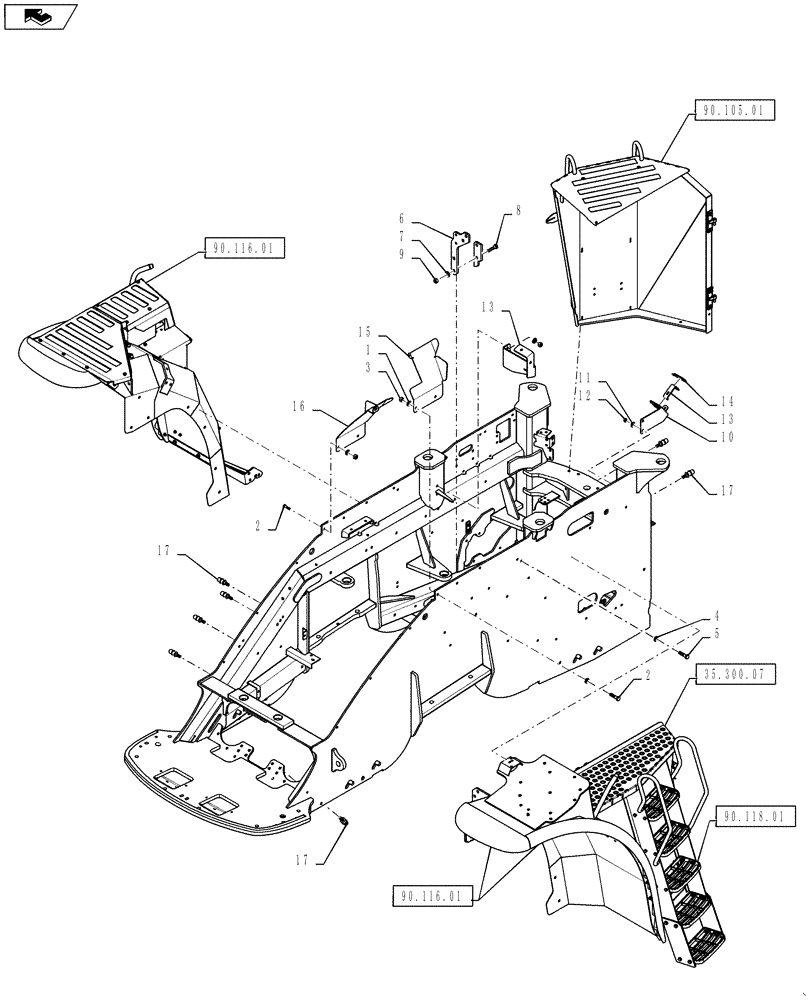

Запчасти Case IH STEIGER 500 (39.100.02) - FRONT FRAME - WITH SUSPENDED CAB - WHEELED (39) - FRAMES AND BALLASTING

1

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

10шт.

2

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

3

829-1412

NUT,M12, Cl 10.9

6шт.

4

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

5

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

6

84270878

SUPPORT

Fender

1шт.

7

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

8шт.

8

627-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9, Full Thd

M16 X 55 CLASS 10

4шт.

9

829-1416

NUT,M16, Cl 10

4шт.

10

84473652

BRACKET

DEF, LH Fill

1шт.

11

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

12

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

13

84360092

BRACKET, SUPPORTING

DEF, LH Fill Lock

1шт.

14

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15" IN

1шт.

15

84376409

FAN BOTTOM SHIELD

LH Side

1шт.

16

84376411

FAN BOTTOM SHIELD

RH Side

1шт.

17

426285A1

STUD

Threaded, Captive

29шт.
