(37.140.01) - WHEEL WEIGHTS - 500 & 1000 LBS.

Запчасти Case IH STEIGER 500 (37.140.01) - WHEEL WEIGHTS - 500 & 1000 LBS. (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

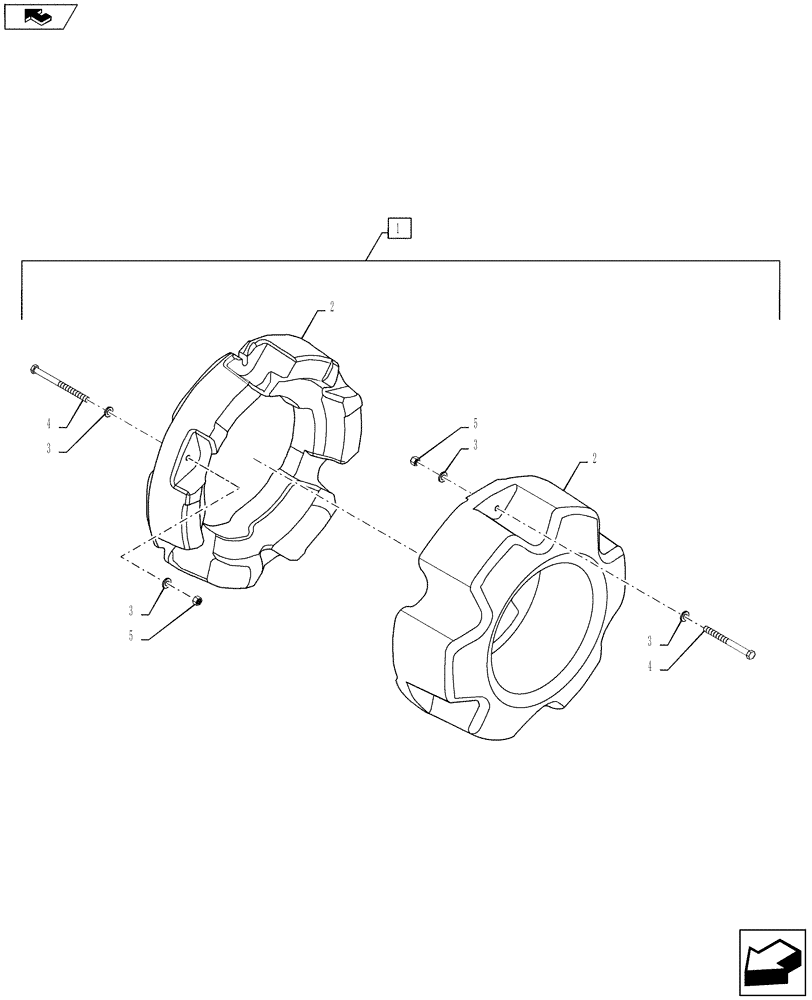

Схема запчастей Case IH STEIGER 500 - (37.140.01) - WHEEL WEIGHTS - 500 & 1000 LBS. (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
3
4
3
4
2
5
3
2
home
1
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

403138A1

WHEEL WEIGHT

Assembly, 2X - 500 LBS, Incl 2 - 5

1шт.

1

403137A1

WHEEL WEIGHT

Assembly, 2X - 1000 LBS, Incl 2 - 5

1шт.

2

87310406

WHEEL WEIGHT

Steel, 500 lbs.

2шт.

2

405830A1

WEIGHT

Steel, 1000 lbs.

2шт.

3

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

4

43281

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

6шт.

5

412066

NUT,M16 x 2.0, Cl 8

6шт.
