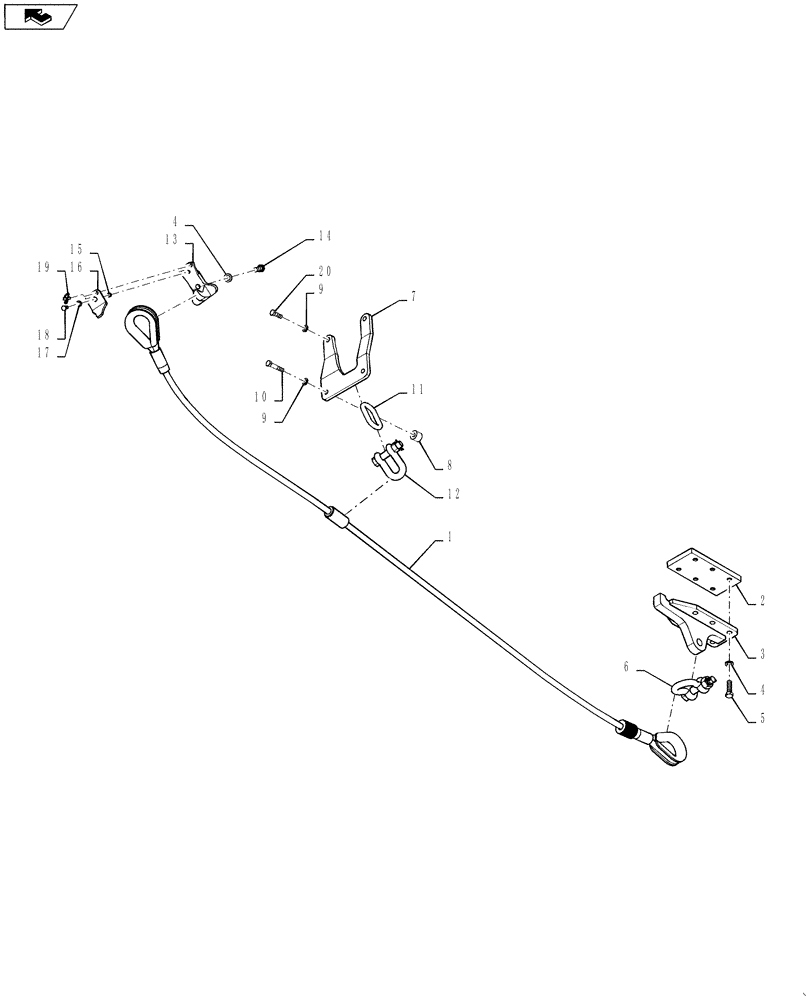

Запчасти Case IH STEIGER 500 (37.100.06) - TOW CABLE - 450 SERIES AXLE (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

379523A1

CABLE ASSY.,31.75mm OD x 4750mm L

Tow

1шт.

2

87548081

MOUNTING PLATE

Tow Cable

1шт.

3

87548080

MOUNTING PLATE

Tow Cable

1шт.

4

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

7шт.

5

827-24080

BOLT,Hex, M24 x 3 x 80mm, Cl 10.9

6шт.

6

87539843

SHACKLE

Anchor

1шт.

7

84335072

MOUNT

Tow Cable, Center

1шт.

8

409751A1

SPACER,21.5mm ID x 50mm OD x 40mm Thk

M20 x 40mm

1шт.

9

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

10

827-20100

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

4шт.

11

409753A1

LINK,196.85mm L

1"

1шт.

12

369838A1

SHACKLE

Tow Cable

1шт.

13

84194283

MOUNT

Front Tow Cable

1шт.

14

827-24100

BOLT,Hex, M24 x 3 x 100mm, Cl 10.9

1шт.

15

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

22mm OD 17mm ID x 11mm

1шт.

16

84194615

LATCH HOOK

Tow Cable

1шт.

17

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

18

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

1шт.

19

19-1041

LOCK PIN,7/16" x 2"

1шт.

20

627-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd

2шт.
