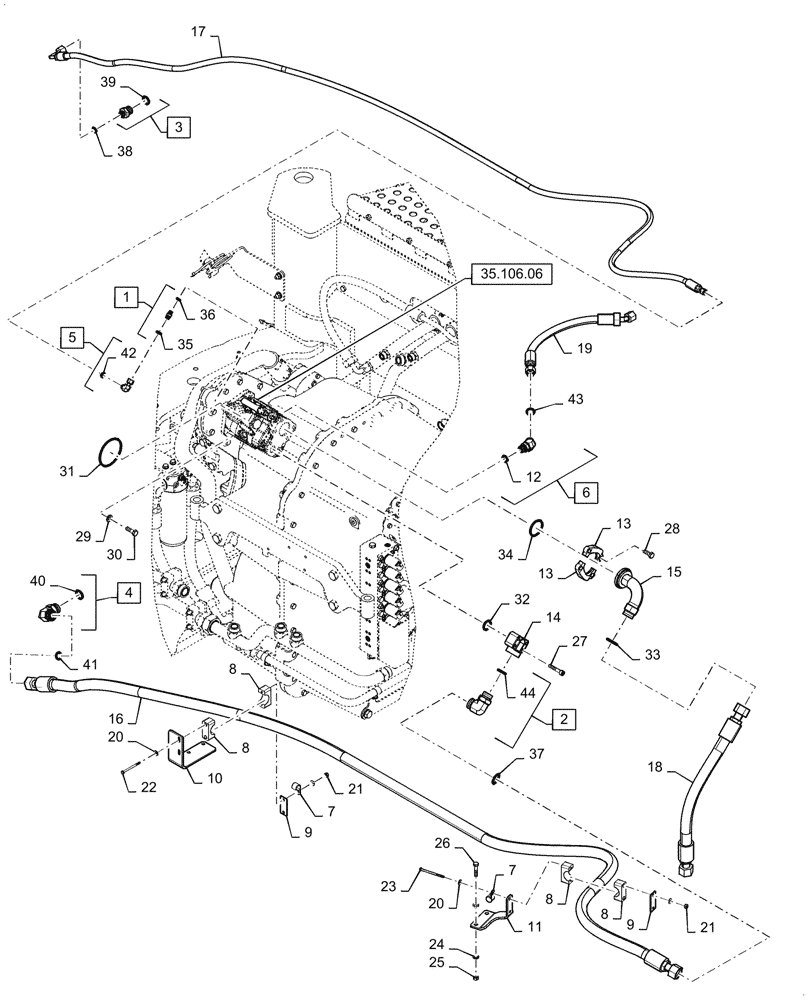

Запчасти Case IH STEIGER 500 (35.322.01) - HIGH FLOW HYDRAULICS - HOSES & PUMP - WHEELED (35) - HYDRAULIC SYSTEMS

1

1957867C1

FILTER SCREEN

Incl 35, 36

1шт.

1

84602714

FITTING

1шт.

2

9846955

90 ELBOW,1-7/16"-12 ORFS x 1-5/16"-12 ORB

Incl 44

1шт.

3

86597761

HYD CONNECTOR,13/16"-16 ORFS x M27 x 2.0 ORB

Incl 39

1шт.

4

86580180

90 ELBOW,90 Degree, 1-7/16"-12 ORFS x M33 x 2.0 ORB

Incl 40

1шт.

5

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

1шт.

5

84989411

ELBOW,90 Degree, 9/16"-18 ORFS x 9/16"-18 Fem Sw

1шт.

6

87301491

45 ELBOW

Incl 12

1шт.

7

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

2шт.

8

429384A1

CLAMP,40mm ID x 30mm W x 71mm L

4шт.

9

429414A1

COVER PLATE,70mm L x 30mm W x 3mm Thk

2шт.

10

47507060

BRACKET

1шт.

11

84299706

BRACKET, SUPPORTING

1шт.

12

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

13

A14141

FLANGE

2шт.

14

84195080

FLANGE

1шт.

15

84194169

HYD TUBE

1шт.

16

84260065

HOSE ASSY.,25.4mm ID x 3460mm L, SAE 100R17

, Serial Range: -ZCF129191

1шт.

16

84423457

HOSE ASSY.

, Start Serial: ZCF129192

1шт.

17

84260066

HOSE ASSY.

, Serial Range: -ZCF129191

1шт.

Also Order 1957867C1, 84989392

1шт.

17

84588982

HOSE ASSY.,9.53mm ID x 3607mm L, SAE 100R17

, Start Serial: ZCF129192

1шт.

Also Order 84602714, 84989411

1шт.

18

84225629

HOSE ASSY.

1шт.

19

84282889

HOSE ASSY.

1шт.

20

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

21

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

22

827-6080

BOLT,Hex, M6 x 80mm, Cl 10.9

2шт.

23

11032331

BOLT,Hex, M6 x 90mm, Cl 10.9

2шт.

24

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

25

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

26

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.

27

827-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

, Serial Range: -ZCF129191

4шт.

27

87530644

SCREW,M10 x 55mm, Cl 8.8

, Start Serial: ZCF129192

4шт.

28

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

29

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

30

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

31

87778093

O-RING

1шт.

32

86529541

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

33

87473574

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

34

86637769

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

35

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

, Serial Range: -ZCF129191

1шт.

Services 1957867C1

1шт.

35

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

, Start Serial: ZCF129192

1шт.

Services 84602714

1шт.

36

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

37

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

38

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

39

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

40

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

41

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

42

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

, Serial Range: -ZCF129191

1шт.

Services 84989392

1шт.

42

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

, Start Serial: ZCF129192

1шт.

Services 84989411

1шт.

43

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

44

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.
