Запчасти Case IH STEIGER 500 (35.220.01[02]) - REMOTE HYDRAULIC HOSES - WHEELED (35) - HYDRAULIC SYSTEMS

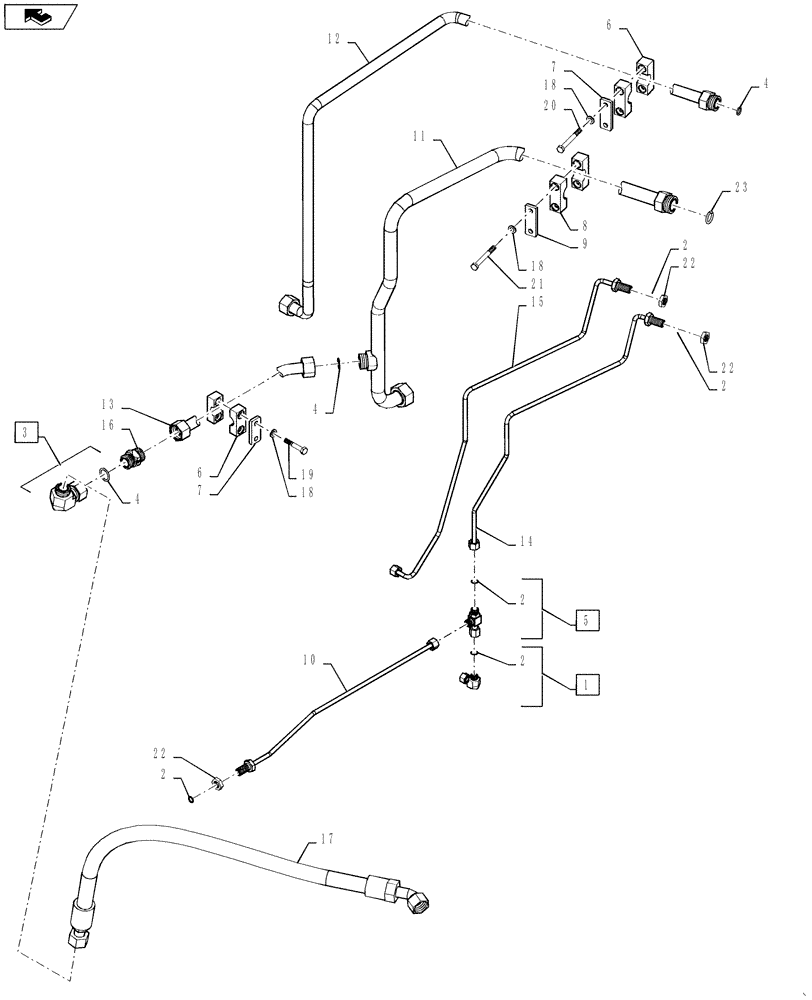

Схема запчастей Case IH STEIGER 500 - (35.220.01[02]) - REMOTE HYDRAULIC HOSES - WHEELED (35) - HYDRAULIC SYSTEMS
14
13
16
6
10
1
home
7
17
11
19
18
6
22
2
22
23
22
21
18
3
2
2
7
2
15
20
18
2
4
5
8
12
4
9
4

Артикул

Название

Примечание

Количество

1

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 2

1шт.

2

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

7шт.

3

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

Incl 4

1шт.

4

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

4шт.

5

300209A1

VALVE

Shuttle, Incl 2

1шт.

6

367489A1

BLOCK

Tube Mounting

2шт.

7

367658A1

PLATE

Clamp Cover

2шт.

8

84196601

CLAMP,32mm ID

Tube Mounting

1шт.

9

8500858

PLATE

Clamp Cover

1шт.

10

84204596

TUBE

Load Sense, Pump

1шт.

11

84214884

TUBE

Auxiliary Return

1шт.

12

84214886

TUBE

Auxiliary Supply

1шт.

13

84214892

TUBE

Auxiliary Relief

1шт.

14

84214888

TUBE

Auxiliary Load Sense

1шт.

15

84214890

TUBE

Auxiliary Pilot Pressure

1шт.

16

84194878

CHECK VALVE

150 PSI

1шт.

17

84492082

HOSE ASSY.,25.4mm ID x 1345mm L, SAE 100R11

Auxiliary Relief

1шт.

18

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

19

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

2шт.

20

827-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9

2шт.

21

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

2шт.

22

701-909

NUT,11/16" - 16

3шт.

23

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

Выбрано товаров: 23
