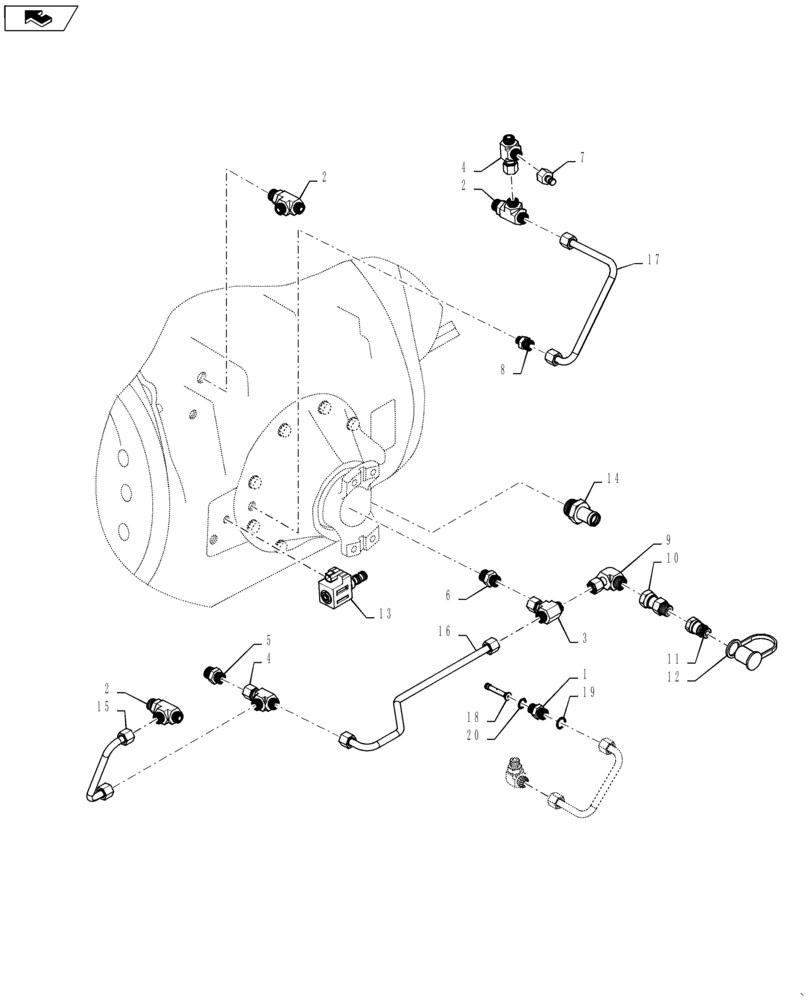

Запчасти Case IH STEIGER 500 (35.128.07) - 500 & 600 SERIES WHEELED AXLE - AXLE LUBE FRONT - HOMOLOGATION (35) - HYDRAULIC SYSTEMS

1

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

2

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

3шт.

3

701-411

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

4

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

2шт.

5

84513641

CHECK VALVE,M22 x 1.5 ORB x 13/16" - 16 ORFS

Axle Lube Port

1шт.

6

84214146

FITTING

Orifice Adapter

1шт.

7

190316A1

COUPLING

Diagnostic Coupler

1шт.

8

341195A1

ORIFICE

Differential Lock Pressure Port

1шт.

9

84168350

90 ELBOW,1" - 14 ORFS x 13/16" - 16 Female Swivel

1шт.

10

87643583

HYD CONNECTOR,5/8" ORFS x M22 x 1.5 ORFS

1шт.

11

392690A1

COUPLING

1шт.

12

399032A1

CAP

1шт.

13

384977A1

VALVE

Differential Lock Solenoid

1шт.

14

390348A1

STEM

Axle Drain Port

1шт.

15

84214262

TUBE

Axle Lube Crossover

1шт.

16

84214264

TUBE

Axle Lube Crossover

1шт.

17

416697A1

TUBE

1шт.

18

87400028

ORIFICE

1шт.

19

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

20

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

1шт.
