Запчасти Case IH STEIGER 500 (35.128.06) - 450 SERIES AXLE LUBE - BRAKE DRAIN LINE, ASN ZCF133036 (35) - HYDRAULIC SYSTEMS

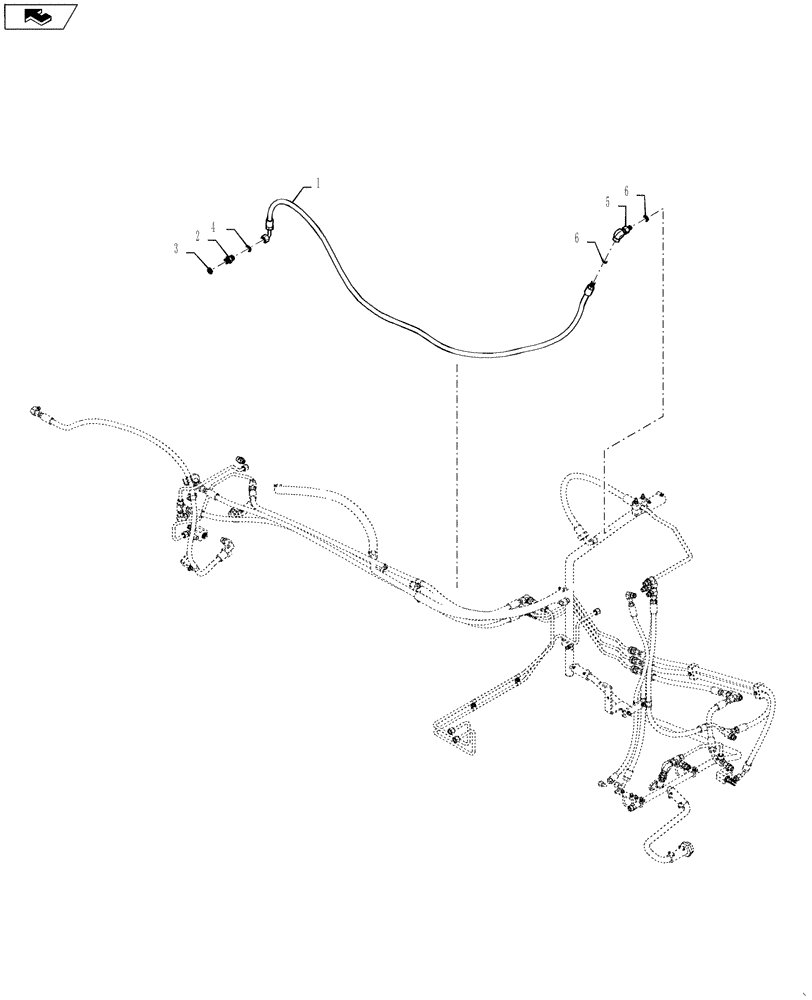

Схема запчастей Case IH STEIGER 500 - (35.128.06) - 450 SERIES AXLE LUBE - BRAKE DRAIN LINE, ASN ZCF133036 (35) - HYDRAULIC SYSTEMS
2
4
5
6
6
3
home
1

Артикул

Название

Примечание

Количество

1

47415651

HYDRAULIC HOSE,12.7mm ID x 2641mm L

Brake Drain

1шт.

2

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

1шт.

3

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

4

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

84989393

ELBOW,90 Degree, 1"-14 ORFS x 1"-14 Fem Sw

1шт.

6

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

Выбрано товаров: 6
