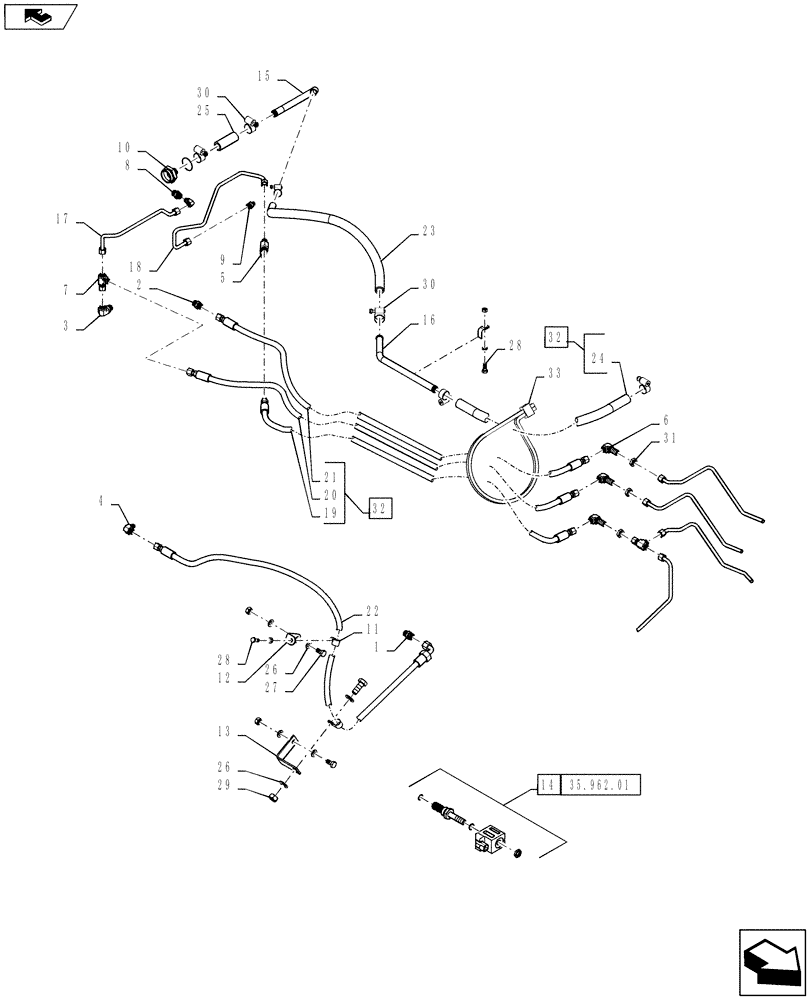

Запчасти Case IH STEIGER 500 (35.128.01[02]) - 450 SERIES AXLE - AXLE LUBE REAR, WITH & WITHOUT DIFFERENTIAL LOCK (35) - HYDRAULIC SYSTEMS

1

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

1шт.

2

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

1шт.

3

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

1шт.

4

700-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

5

700-447

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Axle W/ Diff Lock Only

1шт.

6

701-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

3шт.

7

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

8

84513641

CHECK VALVE,M22 x 1.5 ORB x 13/16" - 16 ORFS

Check Relief, 25 PSI, Start Serial: ZBF128637

1шт.

9

341195A1

ORIFICE

Axle W/ Diff Lock Only

1шт.

10

337545A1

HYD CONNECTOR

Axle Discharge

1шт.

11

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

2шт.

12

369960A1

BRACKET

1шт.

13

416512A1

BRACKET

Axle Plate

1шт.

14

384977A1

VALVE

Solenoid, Axle W/ Diff Lock Only

1шт.

15

416729A1

TUBE

1шт.

16

84217058

HYD TUBE

Rear Axle To Tank

1шт.

17

84280342

RIGID TUBE

Axle Lube Rear

1шт.

18

84280344

RIGID TUBE

Rear Diff Lock Supply, Axle W/ Diff Lock Only

1шт.

19

84281582

HOSE ASSY.,12.7mm ID x 1867mm L, SAE 100R1

Park Brake Pressure

1шт.

20

84281581

HOSE ASSY.,12.7mm ID x 2045mm L, SAE 100R1

Axle Supply

1шт.

21

84281581

HOSE ASSY.,12.7mm ID x 2045mm L, SAE 100R1

Axle Supply

1шт.

22

84281577

HOSE ASSY.,12.7mm ID x 2032mm L, SAE 100R1

Aux Drain

1шт.

23

404991A1

HOSE,1.00" ID x 38.00"

1шт.

24

87602668

HOSE

1" ID x 32" OAL

1шт.

25

31-2757

HOSE,1.00" ID x 4.00"

1шт.

26

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

27

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

28

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

29

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

30

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

6шт.

31

701-903

NUT,13/16" - 16

3шт.

32

387840A1

SLEEVE

Protective, Covers Ref 19, 20, 21, & 24

1шт.

33

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Used W/ Ref 32

2шт.
