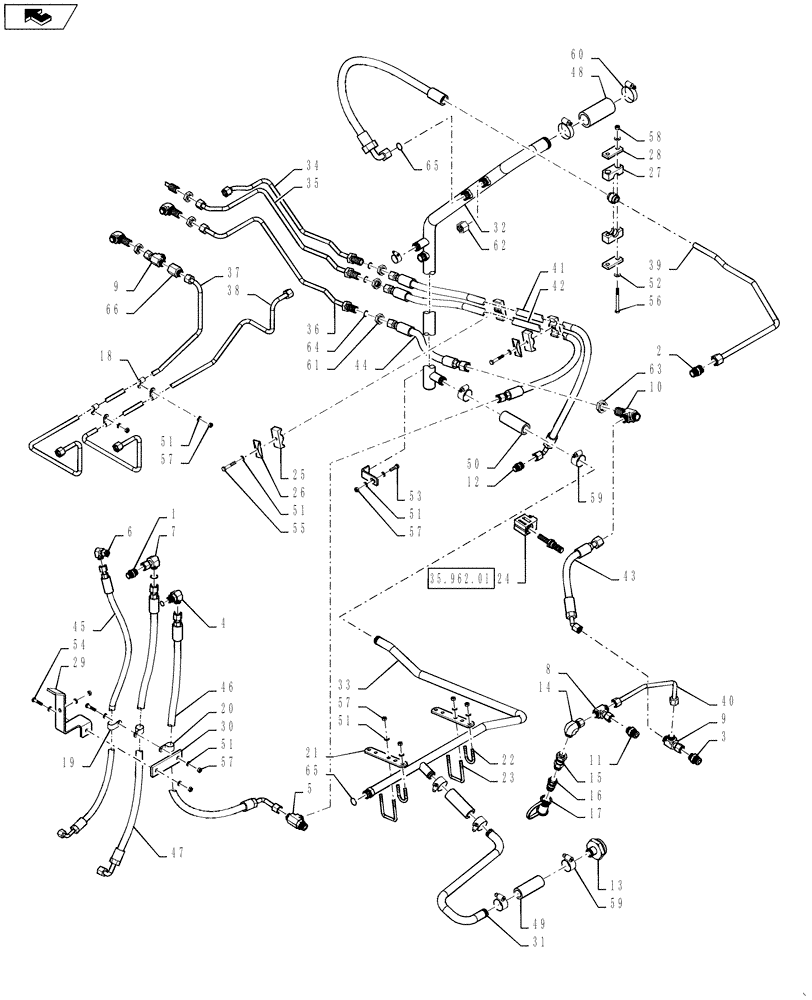

Запчасти Case IH STEIGER 500 (35.128.01[01]) - 450 SERIES AXLE - AXLE LUBE FRONT, WITH & WITHOUT DIFFERENTIAL LOCK (35) - HYDRAULIC SYSTEMS
![Схема запчастей Case IH STEIGER 500 - (35.128.01[01]) - 450 SERIES AXLE - AXLE LUBE FRONT, WITH & WITHOUT DIFFERENTIAL LOCK (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/caseih/874385.png)
№
Артикул
Название
Примечание
Количество
1
700-102
HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB
1шт.
2
700-103
HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB
1шт.
3
700-162
HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB
1шт.
4
700-305
ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB
1шт.
5
700-445
TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB
1шт.
6
701-319
ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS
1шт.
7
701-320
ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS
1шт.
8
701-411
TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS
1шт.
9
701-416
TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS
2шт.
10
84191902
RUN TEE
Bulkhead, ORFS-ORFS-ORFS 16MM
1шт.
11
84513641
CHECK VALVE,M22 x 1.5 ORB x 13/16" - 16 ORFS
Check Relief, 25 PSI, Start Serial: ZBF128637
1шт.
12
341195A1
ORIFICE
Axle W/ Diff Lock Only
1шт.
13
337545A1
HYD CONNECTOR
Axle Discharge
1шт.
14
84168350
90 ELBOW,1" - 14 ORFS x 13/16" - 16 Female Swivel
JUMP SWIVEL ORFS 5/8 - 1/2
1шт.
15
87643583
HYD CONNECTOR,5/8" ORFS x M22 x 1.5 ORFS
M22X1.5 ORB X 1-14 SWL ORFS
1шт.
16
392690A1
COUPLING
Male
1шт.
17
399032A1
CAP
Dust Plug
1шт.
18
515-23127
CLAMP,1/2", Insul, 3/8" Bolt
4шт.
19
515-23206
CLAMP,13/16", Insul, 3/8" Bolt
1шт.
20
515-23238
CLAMP,15/16", Insul, 3/8" Bolt
2шт.
21
87535336
BRACKET
Cross Tube LF
2шт.
22
253105A1
U-BOLT,Coined, M8 x 1.25 x 33.8 x 50mm
BOLT "U"
2шт.
23
396490A1
U-BOLT
M8 - 1.25, Rectangular
2шт.
25
50-2551T1
CLAMP
Tube
4шт.
26
50-2533T1
PLATE
Cover
2шт.
27
84341623
CLAMP,16mm ID
Tube Clamp Isolation
1шт.
28
367658A1
PLATE
Clamp Cover
2шт.
29
84214397
BRACKET, SUPPORTING
Brale Lines
1шт.
30
L50641
CONNECTING STRIP
Clamp, Return Tube
1шт.
31
416727A1
TUBE
1шт.
32
84281569
RIGID TUBE
Main Axle Drain
1шт.
33
84248762
TUBE
Axle Drain, Front
1шт.
34
84281559
RIGID TUBE
Park Brake Pressure, Axle W/ Diff Lock Only
1шт.
35
84281561
RIGID TUBE
Service Brake Pressure
1шт.
36
84281563
RIGID TUBE
Axle Lube Pressure
1шт.
37
84281565
RIGID TUBE
Park Brake Pressure
1шт.
38
84215623
TUBE
Steering Drain
1шт.
39
84341620
TUBE
Brake Drain
1шт.
40
84224484
RIGID TUBE
Axle Lube Crossover
1шт.
41
84281578
HOSE ASSY.,12.7mm ID x 1410mm L, SAE 100R1
Park Brake Pressure, Axle W/ Diff Lock Only
1шт.
42
84281580
HOSE ASSY.,12.7mm ID x 1194mm L, SAE 100R1
Service Brake Pressure
1шт.
43
84244571
HOSE ASSY.,12.7mm ID x 424mm L, SAE 100R1
Axle Lube, Front
1шт.
44
84244572
HOSE ASSY.
Axle Lube
1шт.
45
84341616
HOSE ASSY.,9.53mm ID x 1029mm L, SAE 100R17
Brake LS
1шт.
46
84341618
HOSE ASSY.,12.7mm ID x 1181mm L, SAE 100R17
Brake Signal
1шт.
47
84341615
HOSE ASSY.,12.7mm ID x 1067mm L, SAE 100R17
Brake Supply
1шт.
48
1-4571
HOSE
1.5" ID x 4.5" OAL
1шт.
49
31-2757
HOSE,1.00" ID x 4.00"
1" ID x 4" OAL
2шт.
50
435457A1
HOSE,1.00" ID x 4.00"
1шт.
51
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
19шт.
52
895-15008
WASHER,9mm ID x 20mm OD x 1.6mm Thk
4шт.
53
627-8030
BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd
1шт.
54
627-8035
BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd
2шт.
55
827-8050
BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9
2шт.
56
827-8090
BOLT,Hex, M8 x 1.25 x 90mm, Cl 10.9
2шт.
57
829-1408
NUT,Hex, M8 x 1.25, Cl 10.9
14шт.
58
832-10408
NUT,M8 x 1.25, Cl 8.8
2шт.
59
214-1420
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
6шт.
61
701-903
NUT,13/16" - 16
3шт.
62
701-906
CAP,1" - 14
2шт.
63
701-919
BHD LOCK NUT,1" - 14
1шт.
64
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
3шт.
65
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
4шт.
66
701-905
CAP,13/16" - 16
Axle W/Out Diff Lock Only
1шт.
Выбрано товаров: 66
