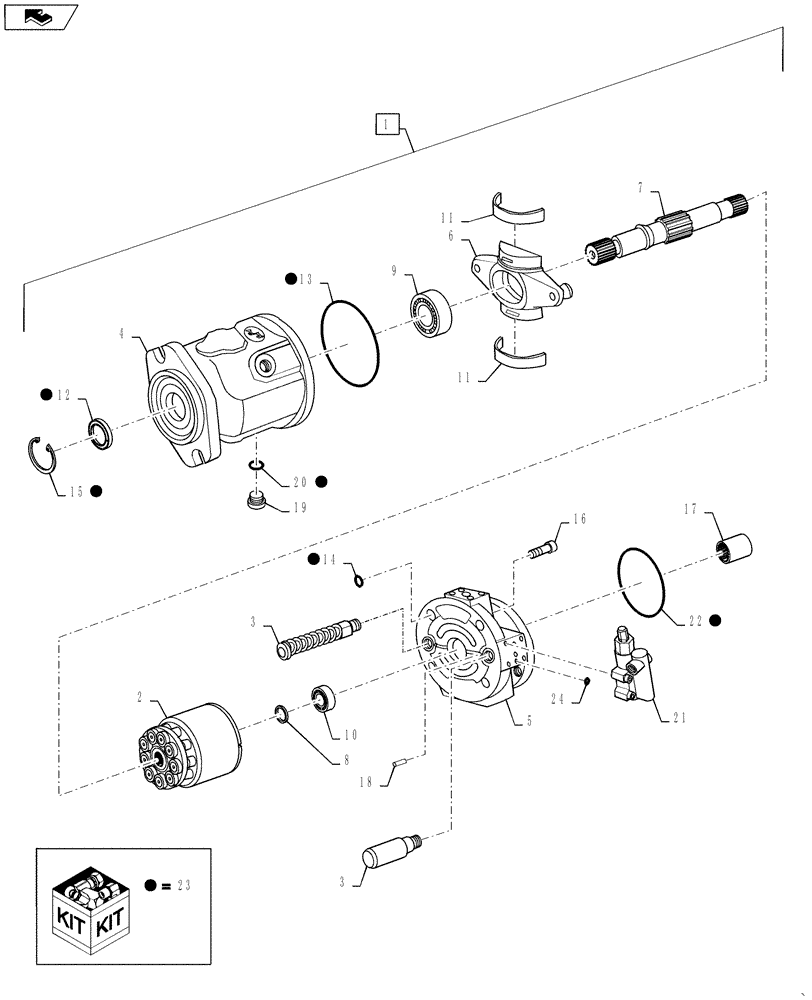

Запчасти Case IH STEIGER 500 (35.106.05) - HYDRAULIC PUMP - HIGH OUTPUT HYDRAULICS - PISTON PUMP, 100CC (35) - HYDRAULIC SYSTEMS

1

87308196

PUMP

Piston, 100 cc, Incl 2 - 25

1шт.

1

87308196R

REMAN-HYD PUMP,100 CC

Remanufactured Hydraulic Pump

1шт.

1

87308196C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Cylinder Assy, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Piston Assy, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Block, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Plate, Swash, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Spacer, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Bearing, Roller, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Bearing, Roller, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Support, Incl in 1

2шт.

12

NSS

NOT SOLD SEPARAT

Seal, Incl in 23

1шт.

13

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 23

1шт.

14

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 23

4шт.

15

NSS

NOT SOLD SEPARAT

Ring, Retaining, Incl in 23

1шт.

16

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

4шт.

17

NSS

NOT SOLD SEPARAT

Coupling, Incl in 1

1шт.

18

NSS

NOT SOLD SEPARAT

Pin, Dowel, Incl in 1

1шт.

19

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

2шт.

20

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 23

2шт.

21

87308198

PUMP

Incl 24 and Mounting Hardware

1шт.

21

87308198R

REMAN-HYD VALVE

Incl 24 and Mounting Hardware

1шт.

21

87308198C

CORE-VALVE HYD

Return Number

1шт.

22

436514A1

O-RING

1шт.

23

388292A1

SEAL KIT

Incl 12 - 15, 20, 22

1шт.

24

8604965

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

3шт.
