Запчасти Case IH STEIGER 500 (33.110.03[01]) - PARK BRAKE- HYDRAULICS, WHEELED - HOMOLOGATION (33) - BRAKES & CONTROLS

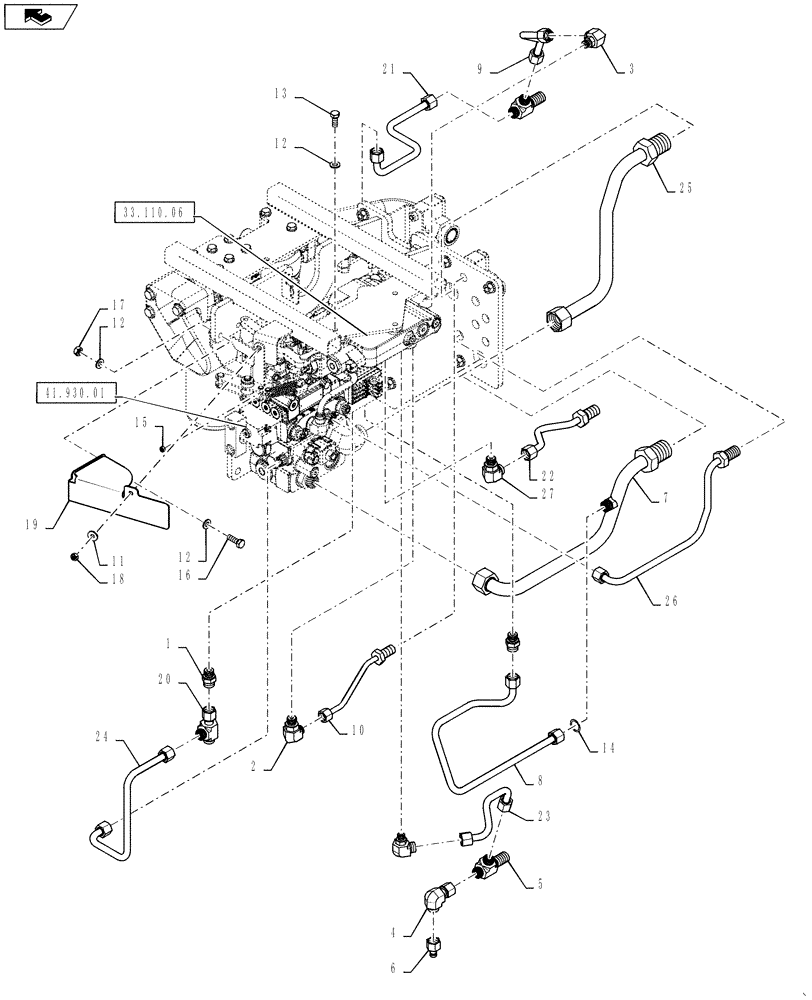

Схема запчастей Case IH STEIGER 500 - (33.110.03[01]) - PARK BRAKE- HYDRAULICS, WHEELED - HOMOLOGATION (33) - BRAKES & CONTROLS
12
27
21
9
14
2
16
3
6
12
25
23
13
7
11
8
4
17
19
33.110.06
41.930.01
15
home
18
10
5
20
1
26
12
24
22

Артикул

Название

Примечание

Количество

1

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

2

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

3

700-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

4

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

5

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

1шт.

6

190316A1

COUPLING

Coupler

1шт.

7

84382892

HYD TUBE

IP Pressure

1шт.

8

84182851

HYD TUBE

Tow Valve Pressure Inlet

1шт.

9

84542996

TUBE

Tow Valve Tank return

1шт.

10

84182857

HYD TUBE

Tow Valve Regulated Outlet

1шт.

11

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

1шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

13

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

14

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

15

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

16

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

17

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

18

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

19

84408239

BRACKET

Park Brake Lever Cover

1шт.

20

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

21

84382900

HYD TUBE

Tow Valve Drain

1шт.

22

84382902

HYD TUBE

Pressure Accumulator

1шт.

23

84182849

TUBE

Park Brake Pressure

1шт.

24

84382898

HYD TUBE

Steering Drain

1шт.

25

84382894

HYD TUBE

EF Pressure

1шт.

26

84382896

HYD TUBE

SEC Pump Pressure

1шт.

27

700-345

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

Выбрано товаров: 27
