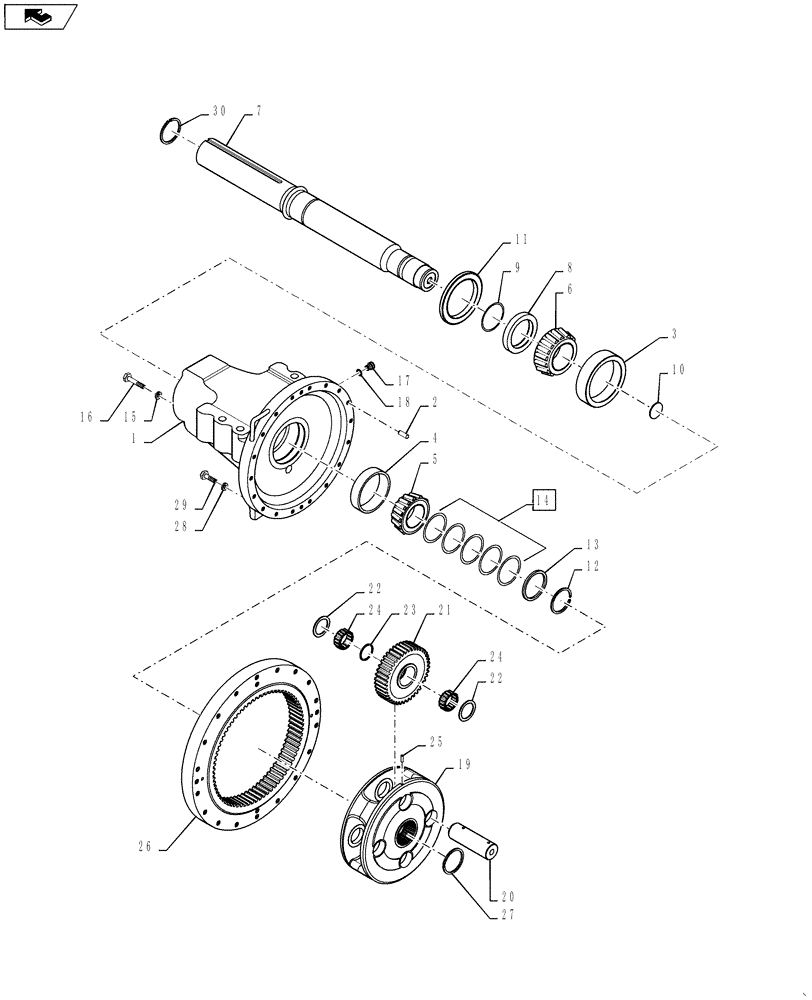

Запчасти Case IH STEIGER 500 (27.100.08) - 450 SERIES AXLE - FINAL DRIVE - STEIGER 500 (27) - REAR AXLE SYSTEM
№
Артикул
Название
Примечание
Количество
1
87363036
HOUSING
Asy., Final Drive, Inc. 2 - 4
1шт.
2
837-16040
DOWEL,M16 x 40
2шт.
3
237698A1
BEARING CUP,212.74mm OD x 53.87mm W
1шт.
4
A136253
BEARING, CUP,171.45mm OD x 38.1mm W
1шт.
5
A136255
ROLLER BEARING,95.25mm ID x 48.26mm W
1шт.
6
237700A1
TAPERED BEARING,114.3127 mm ID x 66.7766 mm
1шт.
7
87363294
AXLE CARRIER
115 mm (4-1/2 in), Axle, Inc. 8 - 10
2шт.
8
87593684
BUSHING
Outboard
1шт.
10
1981270C1
INSERT
Axle Wear
1шт.
12
243856A1
RING, SNAP
RING SNAP Axle Retaining
1шт.
13
124744C1
WASHER,95.63mm ID x 120mm OD x 8mm Thk
Thrust
1шт.
14
143921C1
SHIM,95mm ID x 120mm OD x 0.76mm Thk
1шт.
14
143922C1
SHIM,95mm ID x 120mm OD x 0.3mm Thk
1шт.
14
143923C1
SHIM,95mm ID x 120mm OD x 0.13mm Thk
1шт.
14
143924C1
SHIM,95mm ID x 120mm OD x 0.1mm Thk
1шт.
14
143925C1
SHIM,95mm ID x 120mm OD x 0.08mm Thk
1шт.
15
95-31038
WASHER,5/16"
4шт.
16
628-8016
BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd
4шт.
17
221578A1
PLUG,M18 x 1.5 ORB
Incl. 18
1шт.
18
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
19
388370A1
PINION CARRIER
GEAR CARRIER Planetary
1шт.
20
310697A3
SHAFT,31.75mm ID x 63.4mm OD x 130mm L
Planet Gear
4шт.
21
310694A2
PLANETARY GEAR,29T
29T
4шт.
22
385900A1
THRUST WASHER
Planet Gear Thrust
8шт.
23
310728A2
RING
Needle Spacer
4шт.
25
838-3826
PIN,M8 x 26, Coiled
4шт.
26
360761A1
GEAR, RING
76 T
2шт.
27
101-11350
SNAP RING,#350, Ext
2шт.
28
896-12016
WASHER,17.5mm ID x 30mm OD x 4mm Thk
36шт.
29
84233538
BOLT,Hex, M16 x 150mm, Cl 12.9
M16 X 150 12.9 PHC, Suction Tube Side Of Axle
18шт.
29
84233539
BOLT,Hex, M16 x 180mm, Cl 12.9
M16 X 180 12.9 PHC, Serial Number Plate Side Of Axle
16шт.
29
390873A1
SPECIAL BOLT
M16 X 180 CLASS 10.9 PHC, Same as 628-16180 W/LOCTITE 516, Serial Number Plate Side Of Axle
3шт.
30
800-11115
SNAP RING,M115, Ext
4шт.
1
87363036
HOUSING
Asy., Final Drive, Incl 2 - 4
1шт.
2
837-16040
DOWEL,M16 x 40
2шт.
3
237698A1
BEARING CUP,212.74mm OD x 53.87mm W
1шт.
4
A136253
BEARING, CUP,171.45mm OD x 38.1mm W
1шт.
5
A136255
ROLLER BEARING,95.25mm ID x 48.26mm W
1шт.
6
237700A1
TAPERED BEARING,114.3127 mm ID x 66.7766 mm
1шт.
7
87363294
AXLE CARRIER
115 mm (4-1/2 in), Axle, Incl 8 - 10
2шт.
8
87593684
BUSHING
Outboard
1шт.
10
1981270C1
INSERT
Axle Wear
1шт.
12
243856A1
RING, SNAP
Axle Retaining
1шт.
13
124744C1
WASHER,95.63mm ID x 120mm OD x 8mm Thk
Thrust
1шт.
14
143921C1
SHIM,95mm ID x 120mm OD x 0.76mm Thk
1шт.
14
143922C1
SHIM,95mm ID x 120mm OD x 0.3mm Thk
1шт.
14
143923C1
SHIM,95mm ID x 120mm OD x 0.13mm Thk
1шт.
14
143924C1
SHIM,95mm ID x 120mm OD x 0.1mm Thk
1шт.
14
143925C1
SHIM,95mm ID x 120mm OD x 0.08mm Thk
1шт.
15
95-31038
WASHER,5/16"
4шт.
16
628-8016
BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd
4шт.
17
221578A1
PLUG,M18 x 1.5 ORB
Incl 18
1шт.
18
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
19
388370A1
PINION CARRIER
Planetary
1шт.
20
310697A3
SHAFT,31.75mm ID x 63.4mm OD x 130mm L
Planet Gear
4шт.
21
310694A2
PLANETARY GEAR,29T
29T
4шт.
22
385900A1
THRUST WASHER
Planet Gear Thrust
8шт.
23
310728A2
RING
Needle Spacer
4шт.
25
838-3826
PIN,M8 x 26, Coiled
4шт.
26
360761A1
GEAR, RING
76 T
2шт.
27
101-11350
SNAP RING,#350, Ext
2шт.
28
896-12016
WASHER,17.5mm ID x 30mm OD x 4mm Thk
36шт.
29
84233538
BOLT,Hex, M16 x 150mm, Cl 12.9
M16 X 150 12.9 PHC, Suction Tube Side Of Axle
18шт.
29
84233539
BOLT,Hex, M16 x 180mm, Cl 12.9
M16 X 180 12.9 PHC, Serial Number Plate Side Of Axle
16шт.
29
390873A1
SPECIAL BOLT
M16 X 180 CLASS 10.9 PHC, Same as 628-16180 W/LOCTITE 516, Serial Number Plate Side Of Axle
3шт.
30
800-11115
SNAP RING,M115, Ext
4шт.
Выбрано товаров: 72
