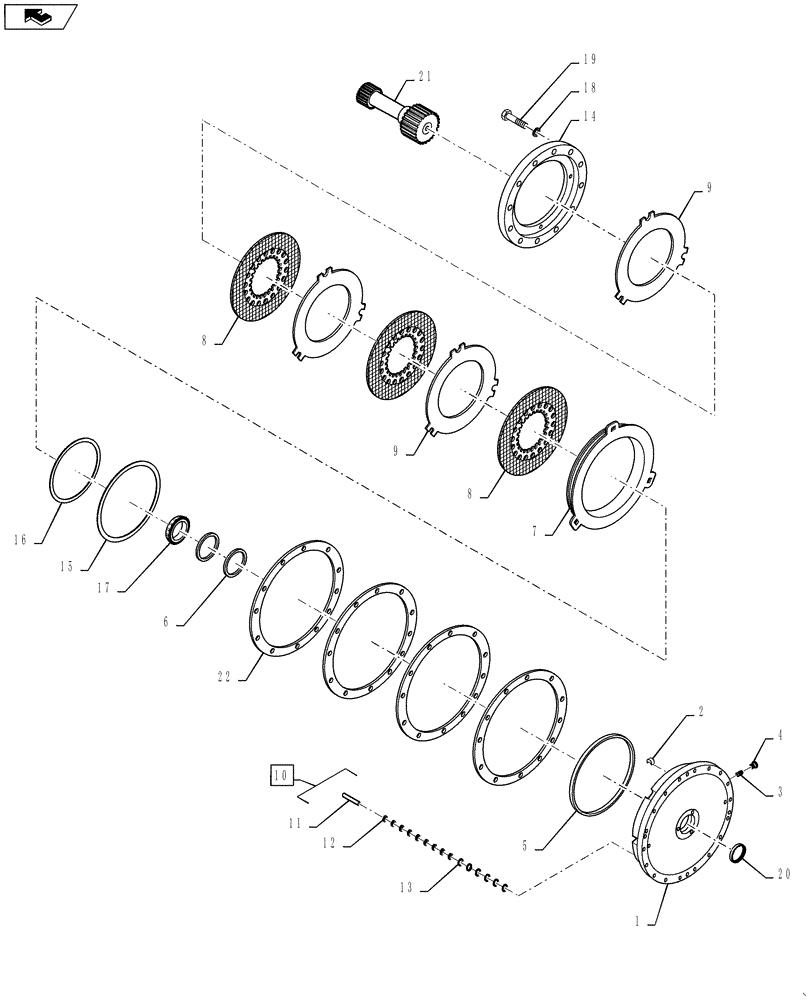

Запчасти Case IH STEIGER 500 (27.100.07) - 450 SERIES AXLE - BRAKE AND RIGHT-HAND CARRIER - STEIGER 500 (27) - REAR AXLE SYSTEM

1

84301303

BEARING CARRIER

Brake, Inc. 2 - 4

1шт.

2

87520605

EXPANSION PLUG,12mm

Plug, Expansion, 12mm

1шт.

3

13789620

SET SCREW,Hex Soc, M8 x 10mm, Flat Pt

1шт.

4

10118511

PLUG,M10 x 1

HEX SOC M10 X 1 X 11 STL

1шт.

5

238-5387

O-RING,0.21" Thk x 17.955" ID, -387, Cl 5, 75 Duro

Outer, Brake Carrier

1шт.

6

247881A1

SEALING RING,Locking, 124mm ID x 131.6mm OD x 5.8mm Thk

Ring, Diff Lock

2шт.

7

84301259

PISTON

Service Brake

1шт.

8

353363A1

PLATE

Brake, Friction

3шт.

9

228193A1

PLATE

Brake, Separator

3шт.

10

235507A5

ADJUSTER

Inc. 11 - 13

3шт.

11

37-1832

DOWEL,1/2" x 2"

1шт.

12

1342928C1

BELLEVILLE WASHER

Brakek Adjuster

9шт.

13

100-1450

SNAP RING,#50, Ext

6шт.

14

84330366

BACKING PLATE,326mm ID x 482mm OD x 43mm Thk

Brake

1шт.

15

238-7281

O-RING,0.139" Thk x 14.984" ID, -281, Cl 7, 75 Duro

1шт.

16

14469781

O-RING,12.984" ID x 13.265" OD x 0.139"

-279, CL 7, 12.984" ID x .139" Thk

1шт.

17

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

1шт.

18

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

12шт.

19

828-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

12шт.

20

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

Oil

1шт.

21

310692A1

SHAFT

Sun Gear, Long

1шт.

22

178553A1

SHIM,0.076mm Thk

1шт.

22

178554A1

SHIM,0.101mm Thk

1шт.

22

178555A1

SHIM,0.130mm Thk

1шт.

22

198843A1

SHIM,0.508mm Thk

1шт.

1

84301303

BEARING CARRIER

Brake, Incl 2 - 4, Use With 386.95 mm Dia Service Brake Piston

1шт.

1

84466551

BEARING CARRIER

Brake, Incl 2 - 4, Use With 388.9 mm Dia Service Brake Piston

1шт.

2

87520605

EXPANSION PLUG,12mm

Plug, Expansion, 12mm

1шт.

3

13789620

SET SCREW,Hex Soc, M8 x 10mm, Flat Pt

1шт.

4

10118511

PLUG,M10 x 1

HEX SOC M10 X 1 X 11 STL

1шт.

5

238-5387

O-RING,0.21" Thk x 17.955" ID, -387, Cl 5, 75 Duro

Outer, Brake Carrier

1шт.

6

247881A1

SEALING RING,Locking, 124mm ID x 131.6mm OD x 5.8mm Thk

Ring, Diff Lock

2шт.

7

84301259

PISTON

Service Brake, 386.95 mm Dia

1шт.

7

84466102

PISTON

Service Brake, 388.9 mm Dia

1шт.

8

353363A1

PLATE

Brake, Friction

3шт.

9

228193A1

PLATE

Brake, Separator

3шт.

10

235507A5

ADJUSTER

Incl 11 - 13

3шт.

11

37-1832

DOWEL,1/2" x 2"

1шт.

12

1342928C1

BELLEVILLE WASHER

Brake Adjuster

9шт.

13

100-1450

SNAP RING,#50, Ext

6шт.

14

84330366

BACKING PLATE,326mm ID x 482mm OD x 43mm Thk

Brake

1шт.

15

238-7281

O-RING,0.139" Thk x 14.984" ID, -281, Cl 7, 75 Duro

Use With 386.95 mm Dia Service Brake Piston

1шт.

15

84470492

O-RING

Use With 388.9 mm Dia Service Brake Piston

1шт.

16

14469781

O-RING,12.984" ID x 13.265" OD x 0.139"

Use With 386.95 mm Dia Service Brake Piston

1шт.

16

84470491

O-RING

Use With 388.9 mm Dia Service Brake Piston

1шт.

17

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

1шт.

18

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

12шт.

19

828-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

12шт.

20

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

Oil

1шт.

21

310692A1

SHAFT

Sun Gear, Long

1шт.

22

178553A1

SHIM,0.076mm Thk

1шт.

22

178554A1

SHIM,0.101mm Thk

1шт.

22

178555A1

SHIM,0.130mm Thk

1шт.

22

198843A1

SHIM,0.508mm Thk

1шт.
