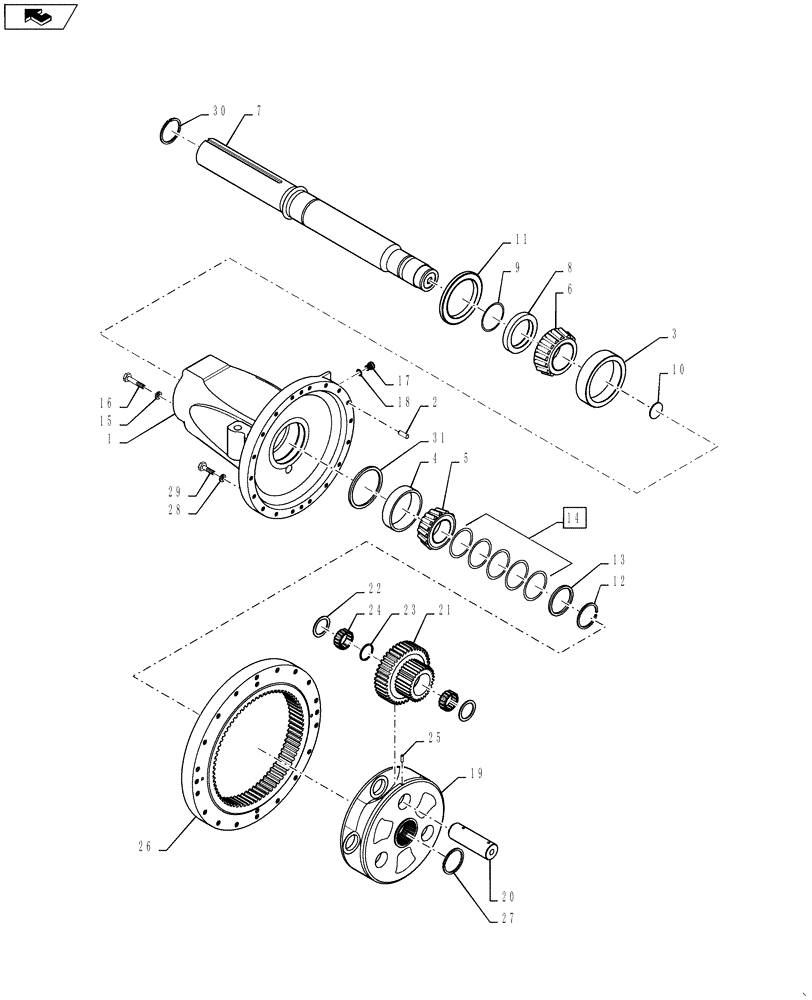

Запчасти Case IH STEIGER 500 (25.100.17) - 500 SERIES AXLE - FINAL DRIVE - STEIGER 500HD & 550 (25) - FRONT AXLE SYSTEM

1

435221A1

AXLE CARRIER

Assy., Incl 2 - 4

1шт.

2

837-16040

DOWEL,M16 x 40

2шт.

3

237698A1

BEARING CUP,212.74mm OD x 53.87mm W

1шт.

4

1975500C1

BEARING CUP,180.987 mm OD x 38.15 mm

1шт.

5

1975499C1

TAPERED BEARING,104.187 mm ID x 47.68 mm

1шт.

6

237700A1

TAPERED BEARING,114.3127 mm ID x 66.7766 mm

1шт.

7

84230413

SHAFT

Axle, 115 mm (4-1/2 in), Incl 8 - 10

1шт.

8

239529A1

BUSHING,114.91mm ID x 155mm OD x 26mm L

115mm Axle

1шт.

9

238-5246

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

1шт.

10

1981270C1

INSERT

Axle Wear

1шт.

11

239942A3

OIL SEAL,153mm ID x 214.31mm OD x 20.5mm Thk

Rear Axle Oil

1шт.

12

435222A1

RING, SNAP

Rear Axle Retaining

1шт.

13

436752A1

THRUST BEARING,105.4mm ID x 130.9mm OD x 7.5mm Thk

131mm OD x 105mm ID x 8mm

1шт.

14

437392A1

SHIM,105.85mm ID x 130mm OD x 0.76mm Thk

0.760mm

1шт.

14

437393A1

SHIM,105.85mm ID x 130mm OD x 0.3mm Thk

0.300mm

1шт.

14

437394A1

SHIM,105.85mm ID x 130mm OD x 0.13mm Thk

0.130mm

1шт.

14

437395A1

SHIM,105.85mm ID x 130mm OD x 0.1mm Thk

0.100mm

1шт.

14

437396A1

SHIM,105.85mm ID x 130mm OD x 0.076mm Thk

0.076mm

1шт.

15

95-31038

WASHER,5/16"

4шт.

16

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

4шт.

17

221578A1

PLUG,M18 x 1.5 ORB

Incl 18

1шт.

18

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

19

435215A1

AXLE CARRIER

Planetary, Large Spline

1шт.

20

446312A1

SHAFT, PLANETARY CAR

3шт.

21

357347A2

GEAR,44T/18T

18 T / 44 T

3шт.

22

397449A1

THRUST WASHER,59mm ID x 84mm OD x 3mm Thk

6шт.

23

377650A1

SPACER

Compound Planet

3шт.

24

360785A1

NEEDLE

Bearing Compound Planet

156шт.

25

838-31025

PIN,M10 x 25, Coiled

3шт.

26

357346A1

GEAR

69 T, Ring

2шт.

27

101-11350

SNAP RING,#350, Ext

2шт.

28

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

36шт.

29

828-16130

BOLT,Hex, M16 x 2 x 130mm, Cl 10.9

36шт.

30

800-11115

SNAP RING,M115, Ext

4шт.

31

435216A1

SPACER,90.85mm ID x 109.95mm OD x 17mm L

Compound Planet Carrier

2шт.
