Запчасти Case IH STEIGER 500 (25.100.03) - 450 SERIES AXLE - PARK/EMERGENCY BRAKE - STEIGER 500 (25) - FRONT AXLE SYSTEM

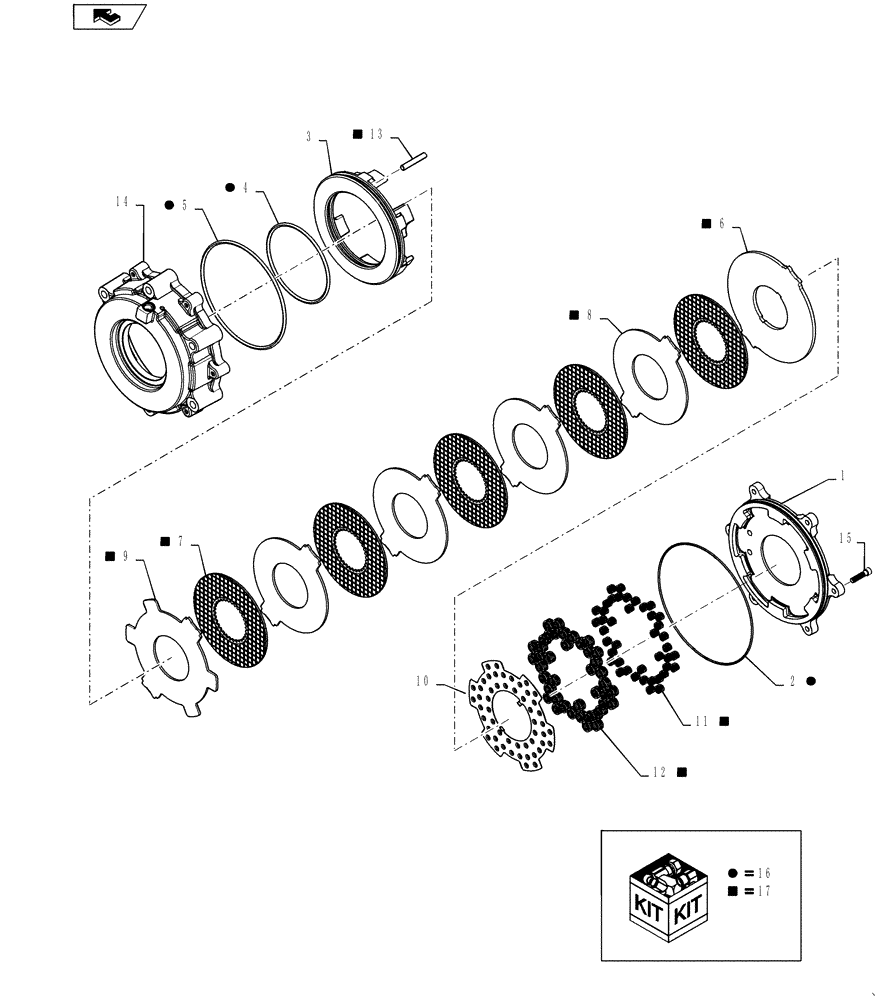

Схема запчастей Case IH STEIGER 500 - (25.100.03) - 450 SERIES AXLE - PARK/EMERGENCY BRAKE - STEIGER 500 (25) - FRONT AXLE SYSTEM
16
17
17
17
15
17
9
11
17
7
17
13
10
16
8
home
5
16
16
3
1
17
17
6
12
2
4
16
17
14
13

Артикул

Название

Примечание

Количество

1

84259293

COVER

1шт.

2

84259305

O-RING

Housing Seal, Incl in 16

1шт.

3

84259299

PISTON

1шт.

4

84259303

O-RING

Piston I.D., Incl in 16

1шт.

5

84259304

O-RING

Piston O.D., Incl in 16

1шт.

6

84259302

PLATE

Disc, Primary, Incl in 17

1шт.

7

NSS

NOT SOLD SEPARAT

Disc, Friction, Incl in 17

5шт.

8

84259301

BRAKE DISC

Stationary, Incl in 17

4шт.

9

84477882

PLATE

DISC Stationary, Incl in 17

1шт.

10

84259295

RETAINER

Spring

1шт.

11

84259296

SPRING

Inner, Incl in 17

42шт.

12

NSS

NOT SOLD SEPARAT

Spring, Outer, Incl in 17

42шт.

13

NSS

NOT SOLD SEPARAT

Pin, Torque, Incl in 17

4шт.

14

84259298

COVER

Brake Assembly

1шт.

15

84259307

BOLT

Screw

6шт.

16

84312962

O-RING KIT

Park/Emergency Brake, Incl 2, 4, 5

1шт.

17

84259306

KIT

Disc Stack, Incl 6 - 9, 11 - 13

1шт.

Выбрано товаров: 17
