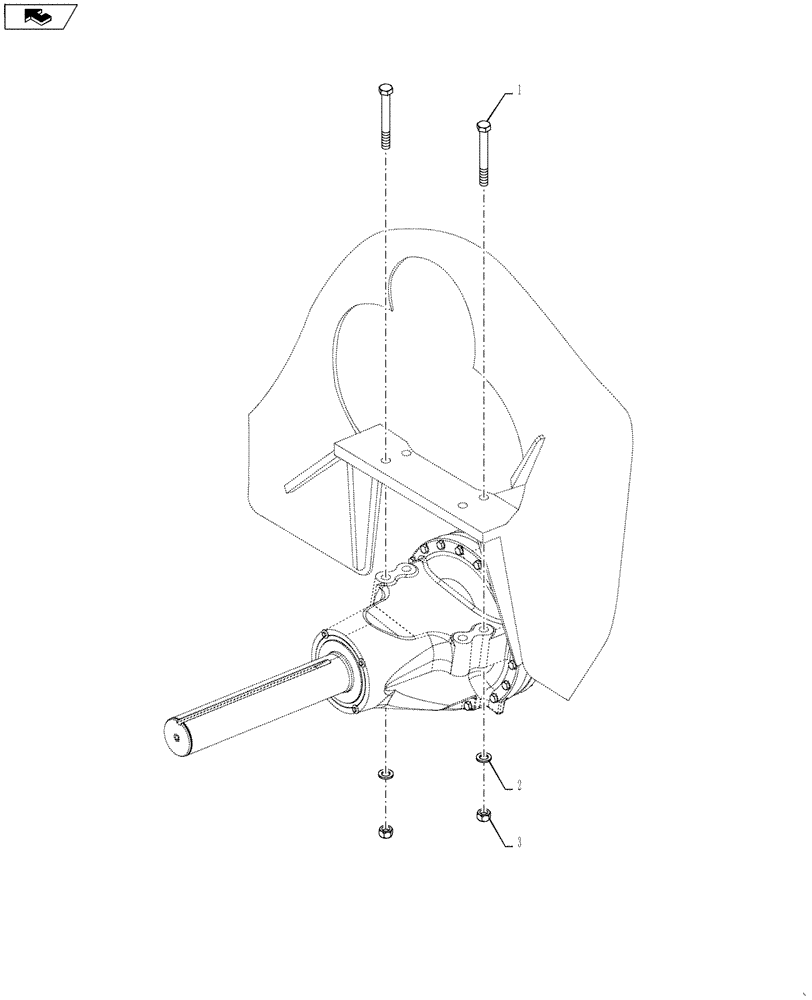

Запчасти Case IH STEIGER 500 (25.100.01) - FRONT AXLE MOUNTING - WHEELED (25) - FRONT AXLE SYSTEM

1

827-24200

BOLT,Hex, M24 x 3 x 200mm, Cl 10.9

450 Series Axle

8шт.

1

827-24270

BOLT,Hex, M24 x 3 x 270mm, Cl 10.9

500 & 600 Series Axle

8шт.

2

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

8шт.

3

829-1424

NUT,M24, Cl 10

8шт.
