Запчасти Case IH STEIGER 485 (04-03) - RADIO AND SPEAKERS (04) - ELECTRICAL SYSTEMS

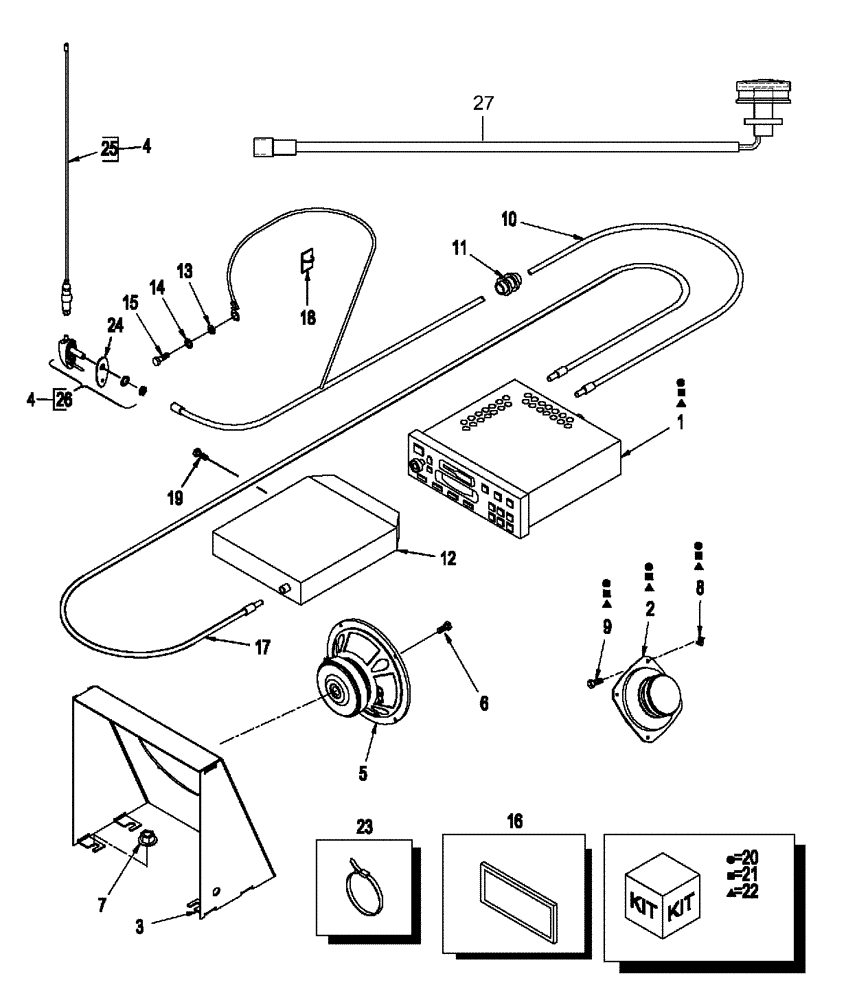

Схема запчастей Case IH STEIGER 485 - (04-03) - RADIO AND SPEAKERS (04) - ELECTRICAL SYSTEMS
21
20
19
4
4
20
3
22
7
26
22
21
11
25
22
8
13
20
2
21
12
22
20
9
15
14
10
21
23
5
17
20
21
21
27
24
22
16
6
18
22
1
20

Артикул

Название

Примечание

Количество

1

87552288

RADIO

AM / FM / WB / CD

1шт.

1

355623A2

RADIO

AM / FM / WB / Cassette

1шт.

1

325061A2

RADIO

AM/FM/WB, With Cassette Tape, CD Changer Ready

1шт.

1

86998222

RADIO

AM / FM / WB, Serial Range: -Z8F110054

1шт.

1

87714994

RADIO

AM / FM / WB with Front Aux Input Jack for Portable Sirius and XM Players and Ipods, Start Serial: Z8F110054

1шт.

2

87621241

SPEAKER

Co-Axial, 5-1/4"

2шт.

3

87537767

HOUSING

Subwoofer

1шт.

4

87471319

ANTENNA

Radio, Inc. 25 & 26

1шт.

5

87659034

SPEAKER

Subwoofer, 8"

1шт.

6

760-14413

SELF-TAP SCREW,Pan Hd, M4.8 x 13

Australian Models

4шт.

7

825-5148

SERRATED NUT,M8, Flg Ser

4шт.

8

177269A1

SPRING NUT,M4.2

8шт.

9

1270741C1

SELF-TAP SCREW,Cross Pan Hd, #8 x 1"

8шт.

10

360432A2

HARNESS

Antenna, Inc. 11

1шт.

11

NSS

NOT SOLD SEPARAT

Grommet

1шт.

12

317688A1

COMPACT DISC PLAYER

Delco, 6 Disc

1шт.

13

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

14

893-11006

LOCK WASHER,Ext Tooth, M6

1шт.

15

779-14613

SELF-TAP SCREW,Hex Hd, M6.3 x 13

1шт.

16

1535219C1

COVER

Without Radio

1шт.

17

449071A1

HARNESS

CD Player, 5486 mm (216 in)

1шт.

18

388489A1

CLIP,ELECTRICAL

2шт.

18

435436A1

RUBBER MOUNTING

Adhesive Backed

1шт.

19

864-5012

HEX SOC SCREW,M5 x 12mm, Cl 8.8

3шт.

20

334229A1

KIT

AM / FM / WB / Cassette / CD, Inc. 1, 2, 8, 9

1шт.

21

87607896

KIT

AM / FM / WB, Inc. 1, 2, 8, 9, Serial Range: -Z8F110054

1шт.

21

87474604

KIT

AM / FM / WB with Auxiliary Input, Inc. 1, 2, 8, & 9, Start Serial: Z8F110054

1шт.

22

719582003

KIT

Single CD Player / Radio

1шт.

23

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

1шт.

24

87471321

SPACER

1шт.

25

87363131

ANTENNA

Radio

1шт.

26

87615704

ANTENNA

Antenna Radio

1шт.

27

360431A1

CABLE TERMINAL

Business Band Radio Antenna

1шт.

Выбрано товаров: 33
