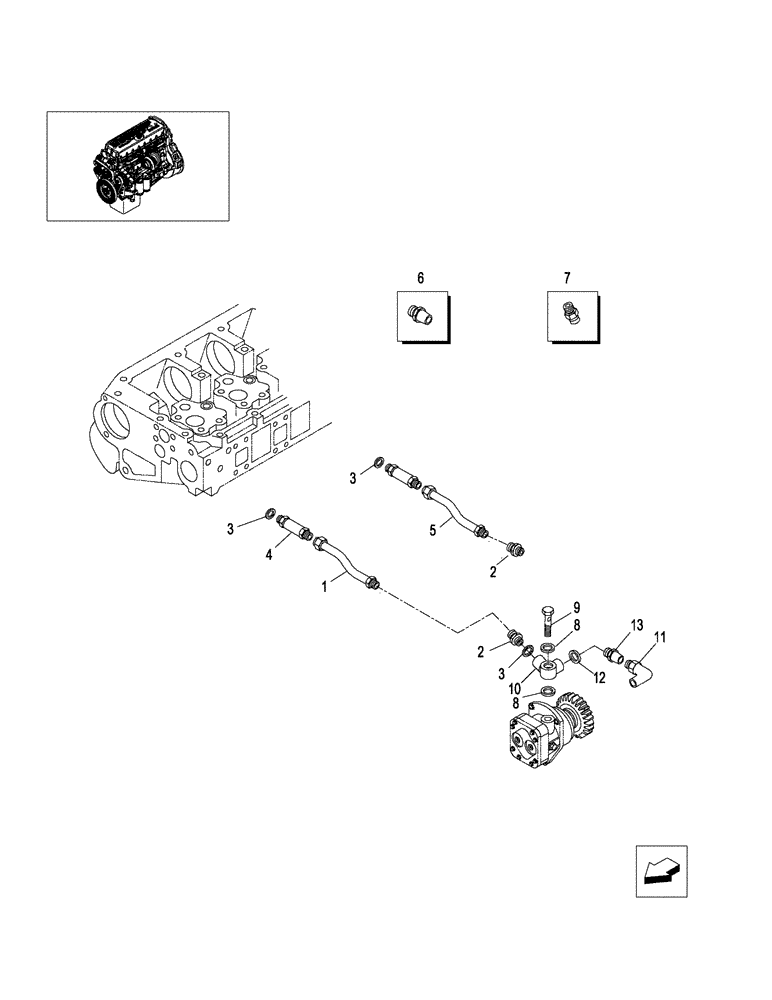

Запчасти Case IH STEIGER 485 (02-84) - FUEL LINES, STEIGER 485 (02) - ENGINE

1

500352447

RIGID TUBE

Return to Fuel Pump

1шт.

2

16500314

FITTING

M16

4шт.

3

99489019

SEALING WASHER

6шт.

4

500310076

FITTING

1шт.

5

504146519

TUBE

Fuel Line to Cylinder Head

1шт.

6

504112433

VALVE

Reduction

1шт.

7

504125079

UNION

1шт.

8

98474309

GASKET,16mm ID x 24mm OD x 1.9mm Thk

Washer, 16 x 24 mm

2шт.

9

504081282

HYD CONNECTOR

1шт.

10

500348306

ELBOW

Fuel Pump Connector

1шт.

11

500350162

ELBOW

Coupling

1шт.

12

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

1шт.

13

500328251

VALVE PRESSURE RELIE

1шт.
