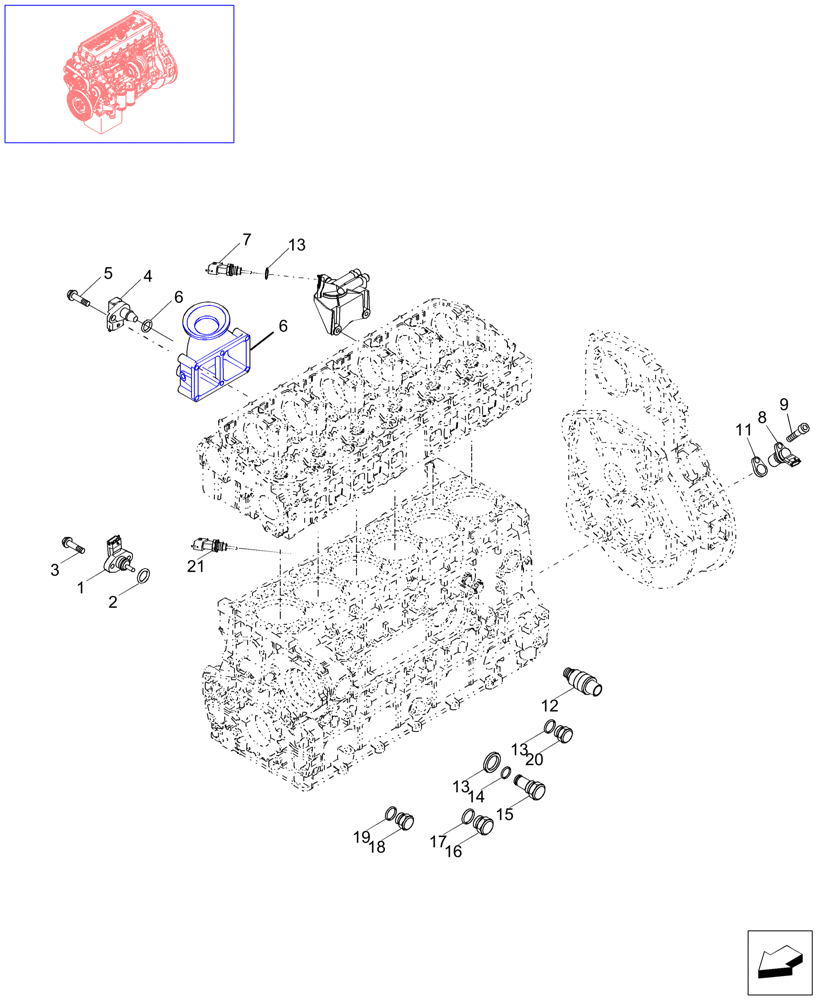

Запчасти Case IH STEIGER 485 (02-76) - MOTOR SENSORS, STEIGER 485 (02) - ENGINE

1

4890193

SENSOR

Oil Pressure &Temperature, Inc. 2

1шт.

2

4895477

O-RING,2.62mm Thk x 13.94mm ID

1шт.

3

4899110

SCREW,Hex Flg, M6 x 1 x 20

2шт.

4

504073323

SENSOR

Sensor, Air Pressure & Temperature, 4 wire

1шт.

5

2853118

BOLT,Hex, M6 x 1 x 18mm

M6 x 18

1шт.

6

42546555

O-RING

1шт.

7

82017881

SENSOR

Fuel, Pressure & Temp Transmitter

2шт.

8

504096645

TRANSMITTER,SENSORE FOR ENGINE SPEED

Flywheel Speed Sensor, 2 wire

1шт.

8a

9861410

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

1шт.

9

84432127

HEX SOC SCREW,M6 x 25mm, Cl 12.9

1шт.

10

16689024

SCREW,M16 x 12mm

M6 x 12

1шт.

11

504163664

SPACER

Connecting Plate

1шт.

12

500346371

SENSOR

Filter Indicator

1шт.

13

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

14 x 22 mm

4шт.

14

70933922

O-RING,0.07" Thk x 0.301" ID, -11, Cl 8, 90 Duro

1шт.

15

504084571

PLUG

1шт.

16

10300714

PLUG,M16 x 1.5 x 14

M16

1шт.

17

99489019

SEALING WASHER

16 x 24 mm

1шт.

18

16887515

PLUG

1шт.

19

99489017

GASKET,9.9mm ID x 20mm OD x 2.5mm Thk

1шт.

20

16992311

PLUG

Lock, M14

2шт.

21

500346074

SENDER UNIT

Fuel Pressure Transmitter

1шт.
