Запчасти Case IH STEIGER 485 (02-63) - WATER PUMP & RELATED PARTS, STEIGER 385 / 435 & 485 (02) - ENGINE

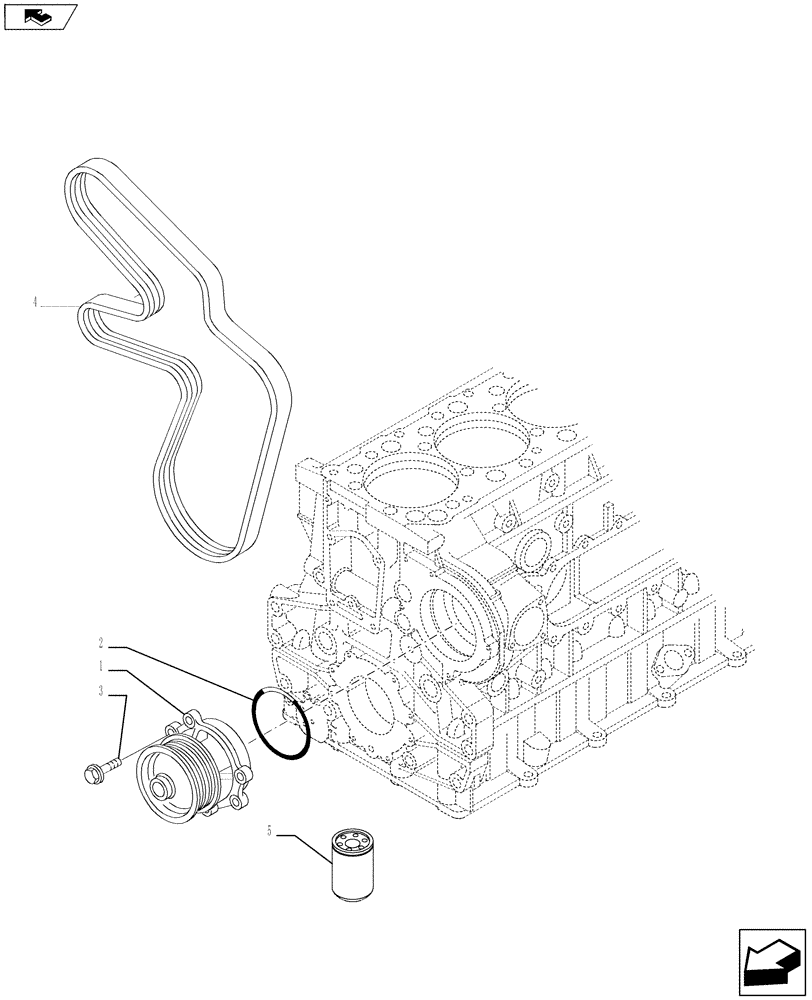

Схема запчастей Case IH STEIGER 485 - (02-63) - WATER PUMP & RELATED PARTS, STEIGER 385 / 435 & 485 (02) - ENGINE
2
5
4
3
home
1

Артикул

Название

Примечание

Количество

1

504102491

WATER PUMP

1шт.

1

504102491R

REMAN-WATER PUMP

Reman for New PN 504102491

1шт.

1

504102491C

CORE-WATER PUMP

Return Number

1шт.

2

4897111

O-RING,0.139" Thk x 4.719" ID

D=120.24 mm

1шт.

3

16586325

BOLT,Hex, M8 x 20mm, Cl 8.8

M8X1.25X20 mm

4шт.

4

87282333

V-BELT,28.28 mm W x 2515.00 mm L

Accessory Drive, A/C, Alternator & Water Pump

1шт.

5

441702A1

COOLANT FILTER

1шт.

Выбрано товаров: 7
