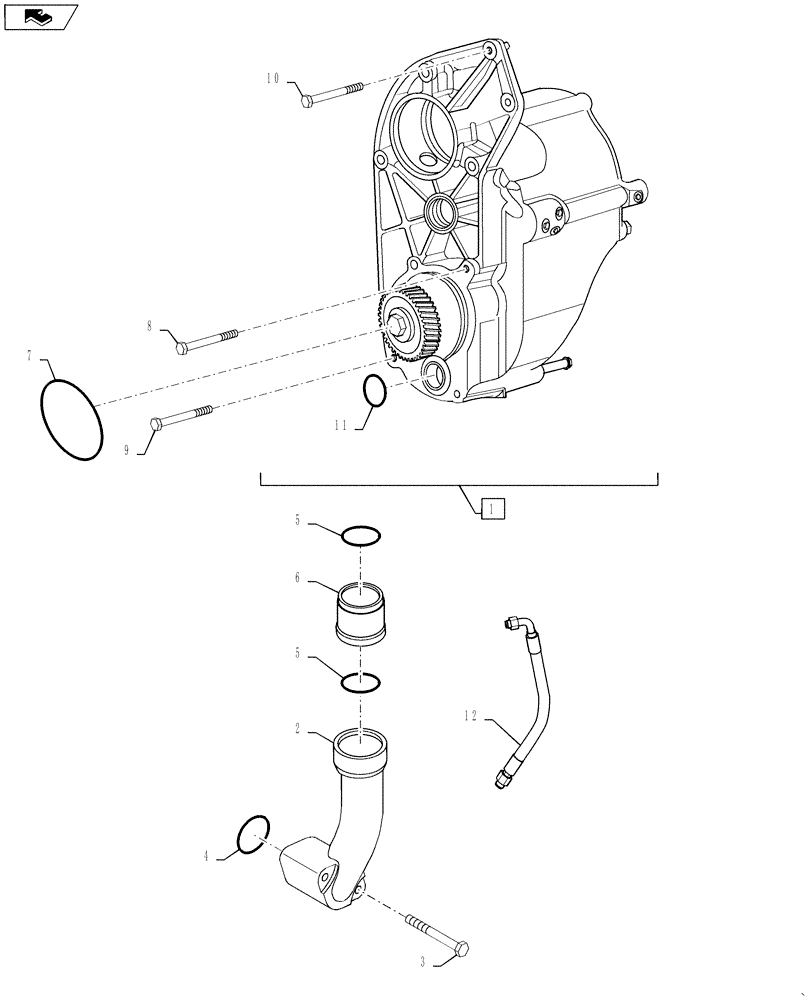

Запчасти Case IH STEIGER 485 (02-53) - HYDRAULIC COUPLING, COMPOUND TURBO, STEIGER 485 (02) - ENGINE

1

504168203

PTO

Clutch Assy., Inc. 10 & 11

1шт.

1

504346152R

REMAN-CLUTCH ASSY

Reman for New PN 504168203

1шт.

1

504346152C

CORE-CLUTCH ASSEMBLY

Return Number

1шт.

1

504168203C

CORE-CLUTCH ASSEMBLY

Return Number, PTO CLUTCH ASSY. - for N.A. Only

1шт.

1

504346152R

REMAN-CLUTCH ASSY

Remanufactured PTO Clutch; For N.A. only

1шт.

1

504346152C

CORE-CLUTCH ASSEMBLY

Return Number, PTO CLUTCH ASSY. - for N.A. Only

1шт.

2

504220962

TUBE

Oil Line Return

1шт.

3

16592525

BOLT,M8 x 1.25 x 70mm

M8 x 70

2шт.

4

14463881

O-RING,1.359" ID x 0.139" Width

1шт.

5

70925919

O-RING,-222, Cl 7, 1.484" ID x .139" Thk

2шт.

6

504224456

SLEEVE

Connector

1шт.

7

17296981

O-RING

89.0 ID x 5.33 mm thk

1шт.

8

16599325

SCREW,M10 x 150mm

M10 x 150

3шт.

9

16593125

BOLT,M10 x 100mm

M10 x 100

2шт.

10

16593025

SCREW,M10 x 90mm

2шт.

11

70925919

O-RING,-222, Cl 7, 1.484" ID x .139" Thk

1шт.

12

504168222

TUBE

Compound Turbo Oil Supply

1шт.
