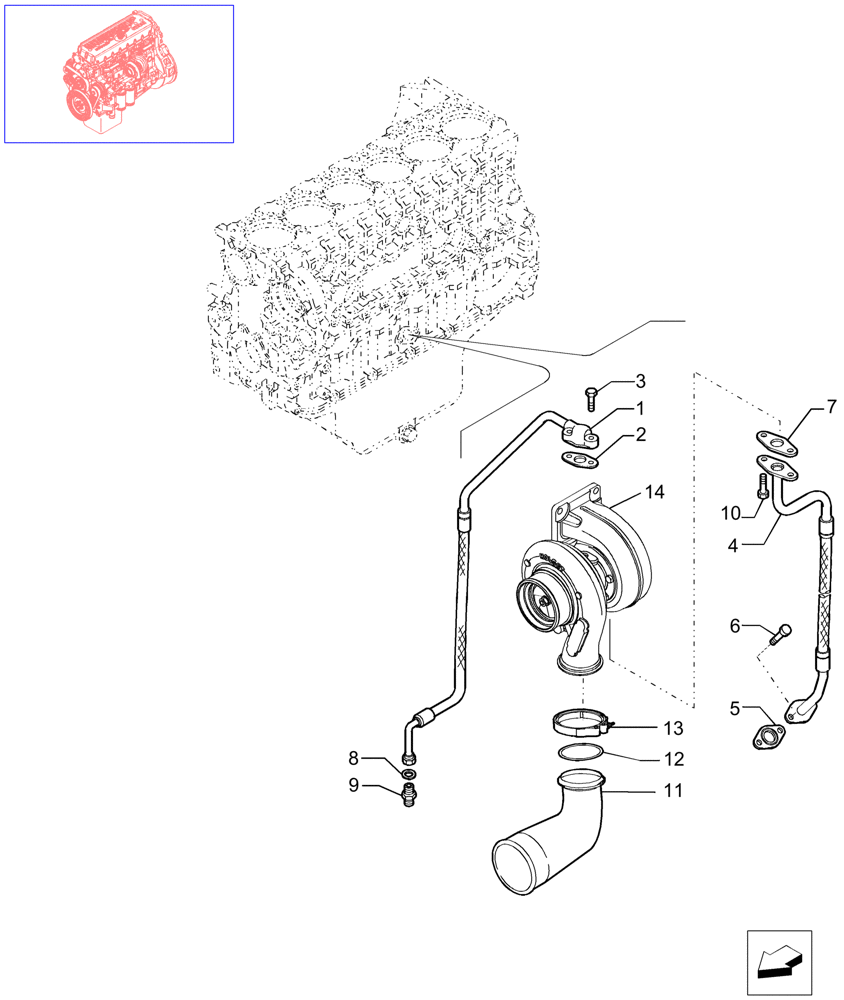

Запчасти Case IH STEIGER 485 (02-52) - TURBOCHARGER PIPES, STEIGER 485 (02) - ENGINE

1

504139847

RIGID TUBE

Return Line

1шт.

1

504262607

HOSE ASSY.

Delivery Line

1шт.

2

61318303

GASKET

1шт.

3

16586625

BOLT,M8 x 35mm

M8 x 35

2шт.

4

504229510

HOSE ASSY.

Oil Line

1шт.

5

99475979

GASKET

1шт.

6

16673735

BOLT,Hex, M8 x 1.25 x 25mm

M8 x 1.25 x 25

2шт.

7

98412509

GASKET,0.8mm Thk

1шт.

8

99489019

SEALING WASHER

1шт.

9

41031569

FITTING

1шт.

10

16673635

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd

2шт.

11

504039838

ELBOW

Turbocharger to Air Cleaner

1шт.

12

14465381

O-RING,3.109" ID x 3.387" OD x 0.139"

O-Ring, Turbocharger Outlet Pipe

1шт.

13

500307975

HOSE CLIP

Turbocharger Outlet Pipe

1шт.

14

504171476

TURBOCHARGER

1шт.

504171476R

REMAN-TURBOCHARGER

Steiger 485,

1шт.

504171476C

CORE-TURBOCHARGER

Return Number

1шт.
