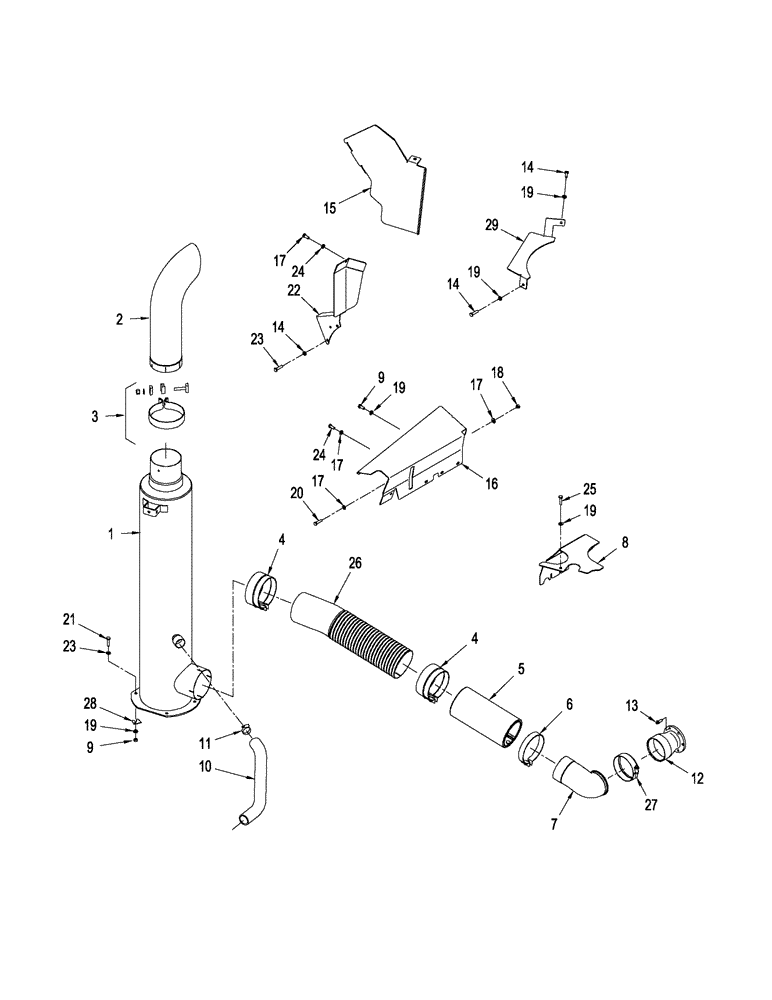

Запчасти Case IH STEIGER 485 (02-21) - EXHAUST SYSTEM - QUADTRAC TRACTOR, STEIGER 485 (02) - ENGINE

1

87350634

MUFFLER

without Spark Arrestor

1шт.

2

87430632

ELBOW

Muffler Exhaust, Inc. 3

1шт.

3

87430634

CLAMP,159.5mm ID

Muffler

1шт.

4

357686A1

ASSEMBLY

1шт.

5

87677581

INSULATION

BLANKET, Insulation, Flexible Exhaust Tube

1шт.

6

87406903

COLLAR CLAMP

1шт.

7

87516319

ELBOW

Exhaust

1шт.

8

87659959

PROTECTION PLATE

Sheild, Debris

1шт.

9

832-46410

NUT,M10 x 1.5, Cl 8

4шт.

10

87304384

HOSE,50.80 mm ID x 374.70 mm

Aspirator

1шт.

11

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

1шт.

12

87308225

ELBOW

Exhaust

1шт.

13

868-10025

12 PT SCREW,M10 x 25mm, Cl 12.9

6шт.

14

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

4шт.

15

87659961

SHIELD

Sheild, Intake

1шт.

16

87612633

SHIELD

Exhaust

1шт.

17

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

6шт.

18

832-46408

NUT,M8 x 1.25, Cl 8

1шт.

19

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

13шт.

20

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

21

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

6шт.

22

87575152

HEAT SHIELD

Sheild, Heat Breather

1шт.

23

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

24

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

3шт.

25

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

26

87591630

ELBOW

Double Wall

1шт.

27

87533215

CLAMP,109mm - 110.5mm

V-Band

1шт.

28

404824A1

SHIM

1шт.

29

87575146

BRACKET

Air Cleaner

1шт.
