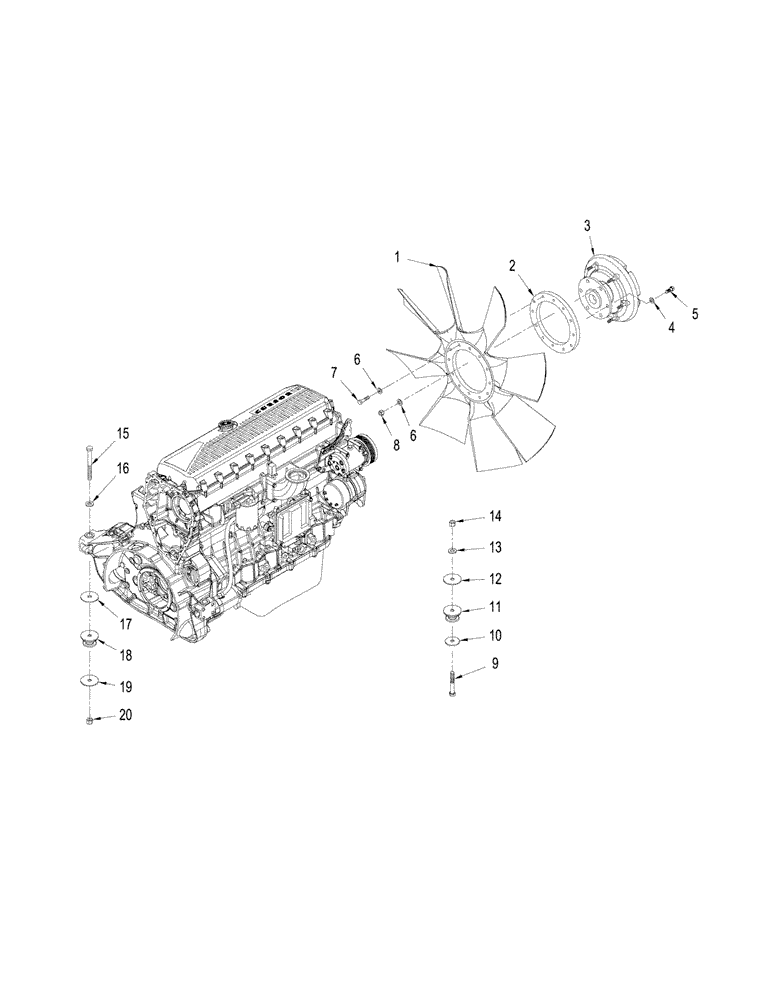

Запчасти Case IH STEIGER 485 (02-17) - ENGINE MOUNTING AND ATTACHING PARTS, STEIGER 385 / 435 & 485 (02) - ENGINE

1

87440096

FAN

Viscous, 32"

1шт.

STEIGER 385 / 435

1шт.

2

87419100

MOUNTING PLATE

Fan

1шт.

STEIGER 385 / 435

1шт.

3

430406A1

DRIVE

Viscous Fan, 810 Series

1шт.

STEIGER 385 / 435

1шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

5

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

6шт.

6

496-41034

WASHER,.344" x 1" x .098", HDN

12шт.

7

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

8

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

9

827-16160

BOLT,Hex, M16 x 2 x 160mm, Cl 10.9

2шт.

10

19-408

WASHER

Engine Mounting, Front

2шт.

11

435439A1

RUBBER MOUNTING

Engine

2шт.

12

51-128

WASHER

Engine Mounting, Front

2шт.

13

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

2шт.

14

832-10416

NUT,M16 x 2, Cl 8

2шт.

15

827-20220

BOLT,Hex, M20 x 2.5 x 220mm, Cl 10.9

2шт.

16

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

2шт.

17

379611A1

WASHER

Engine Mounting, Rear

4шт.

18

361187A1

ISOLATOR

Rubber, Engine Mounting

2шт.

19

379611A1

WASHER

Engine Mounting, Rear

4шт.

20

832-10420

NUT,M20 x 2.5, Cl 8

2шт.
