(05.100.03[01]) - FILTERS, 485

Запчасти Case IH STEIGER 485 (05.100.03[01]) - FILTERS, 485 (18) - MISCELLANEOUS

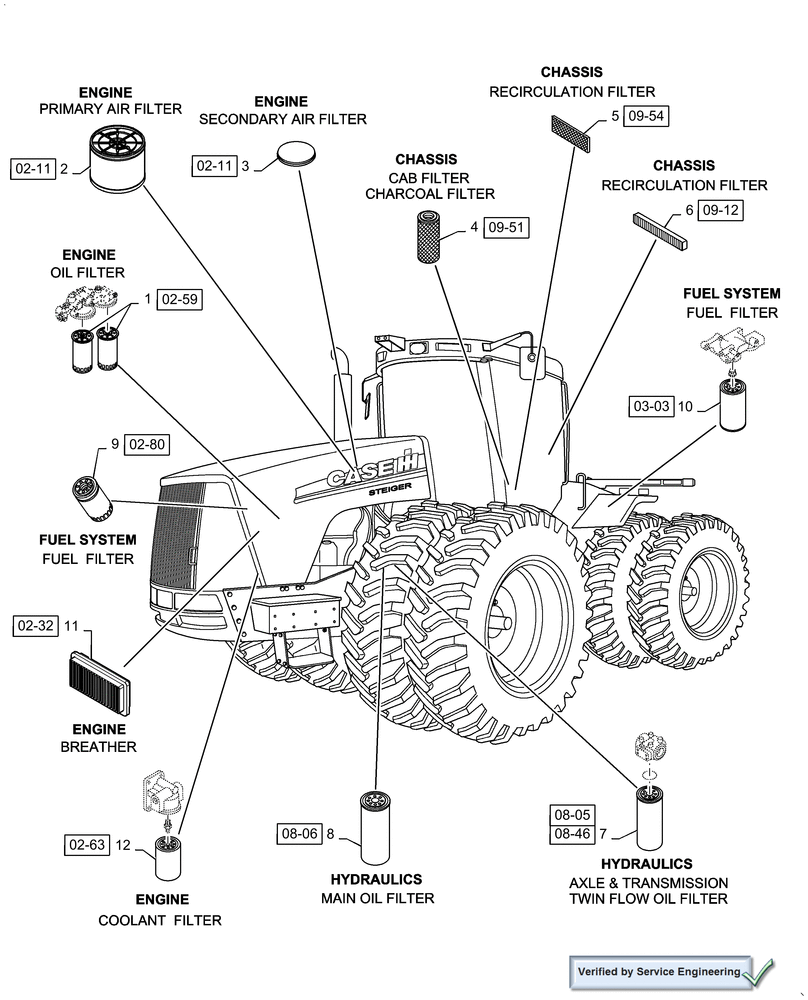

Схема запчастей Case IH STEIGER 485 - (05.100.03[01]) - FILTERS, 485 (18) - MISCELLANEOUS
02-80
02-63
02-11
10
8
09-54
2
02-32
5
02-59
09-51
02-11
6
1
12
08-06
08-05
3
9
7
11
03-03
09-12
08-46
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84346773

ENGINE OIL FILTER,110mm OD x 212mm L, M30 x 2

Spin-On

2шт.

2

87727665

AIR FILTER

Primary

1шт.

3

87443714

AIR FILTER

Secondary

1шт.

4

87684088

CAB FILTER,CAB

1шт.

4

87267363

AIR FILTER,Cab Charcoal Recirculation

1шт.

5

87409377

FILTER

Recirculation

1шт.

6

87408613

INSULATION

Recirculation

1шт.

7

84239751

HYDRAULIC OIL FILTER

Axle and Transmission

1шт.

7

84239751

HYDRAULIC OIL FILTER

High Flow

1шт.

8

84226263

HYDRAULIC OIL FILTER,116.8mm OD x 295.4mm L, 1" 3/8-12UNF

Main

1шт.

9

84597068

FUEL FILTER

Engine Mounted

1шт.

10

87410186

FUEL FILTER

Frame Mounted

1шт.

11

504209107

AIR FILTER

Engine Breather

1шт.

12

441702A1

COOLANT FILTER

1шт.

Выбрано товаров: 14
