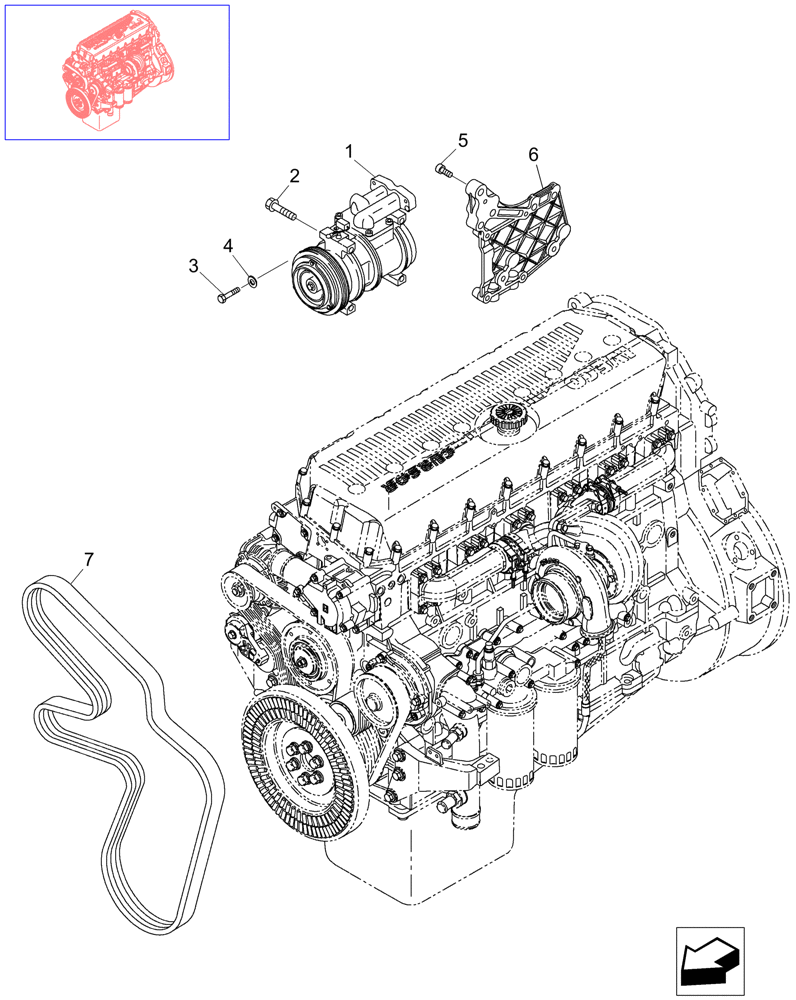

Запчасти Case IH STEIGER 485 (09-56) - COMPRESSOR, AIRCOND., STEIGER 485 (09) - CHASSIS

1

86993463

AIRCOND. COMPRESSOR

ASSY, See Figure: 09-57

1шт.

1

86993463GV

AIRCOND. COMPRESSOR

Value

1шт.

2

16598325

BOLT,Hex, M8 x 100mm

M8X100 mm

4шт.

3

504080093

BOLT

2шт.

4

17097024

WASHER

2шт.

5

16692324

BOLT

M10X35 mm

2шт.

6

504078624

BRACKET, SUPPORTING

Air Compressor

1шт.

7

87282333

V-BELT,28.28 mm W x 2515.00 mm L

Accessory Drive, Alternate, A/C & Water Pump

1шт.
