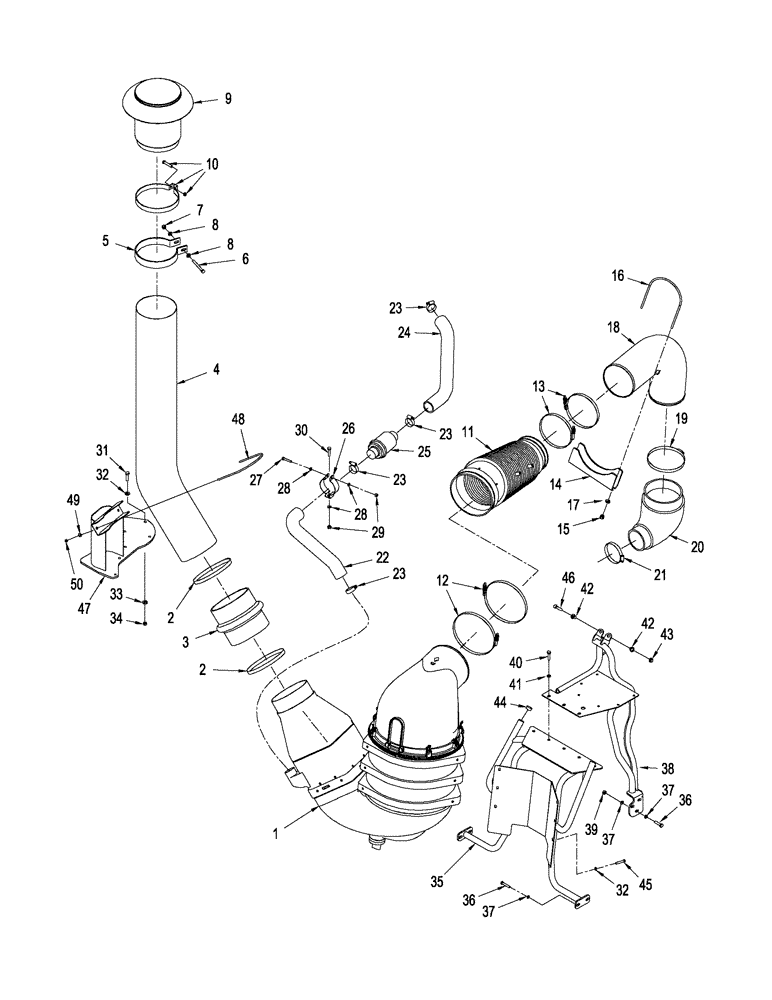

Запчасти Case IH STEIGER 485 (02-09[01]) - AIR INDUCTION SYSTEM, STEIGER 485, ASN Z8F109701 (02) - ENGINE

1

87444727

AIR CLEANER

See Figure: 02-10

1шт.

2

214-32144

HOSE CLAMP,8-1/4" - 9-1/8", HD Worm, W/ Liner

Hose

2шт.

3

87443802

HOSE

Connector, 8"

1шт.

4

87714597

AIR INTAKE TUBE,145 mm L

1шт.

Wheel Tractor

1шт.

4

87673446

AIR INTAKE TUBE

1шт.

QUADTRAC Tractor

1шт.

5

87644727

CLAMP

Air Intake

1шт.

6

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

1шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

9

87443716

PRESCREENER ASSY.

Muffler, Inc. 10

1шт.

10

87443800

COLLAR CLAMP

Intake Pre-Screen

1шт.

11

87367573

AIR DUCT

Intake

1шт.

12

87443916

SPECIAL CLAMP,8.75" - 9.62", Worm Gear

2шт.

13

87437258

CLAMP,6.75" - 7.62", Worm Gear

2шт.

14

87309822

BRACKET, SUPPORTING

Intake

1шт.

15

231-1445

NUT,5/16"-18, GB

2шт.

16

87310919

U-BOLT

7"

1шт.

17

495-11034

WASHER,5/16", SAE

2шт.

18

87377306

AIR INTAKE TUBE

Rubber

1шт.

19

214-32128

HOSE CLAMP,7-1/4" - 8-1/8", HD Worm, W/ Liner

1шт.

20

87444058

ELBOW

Rubber

1шт.

21

214-3296

HOSE CLAMP,5-1/4" - 6-1/8", HD Worm, W/ Liner

1шт.

22

87304386

HOSE,50.80 mm ID x 375.0 mm

Aspirator, from Air Cleaner to Check Valve

1шт.

Wheel Tractor

1шт.

22

87304385

HOSE,50.80 mm ID x 206.0 mm

Aspirator, from Air Cleaner to Check Valve

1шт.

QUADTRAC Tractor

1шт.

23

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

4шт.

24

87304384

HOSE,50.80 mm ID x 374.70 mm

Aspirator, from Check Valve to Muffler

1шт.

25

87443913

VALVE

Check

1шт.

26

87300581

CLAMP

Check Valve

1шт.

27

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

1шт.

28

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

29

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

30

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

31

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

4шт.

32

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

10шт.

33

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

34

832-46410

NUT,M10 x 1.5, Cl 8

4шт.

35

87521399

SUPPORT

Hood, Rear

1шт.

36

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

37

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

10шт.

38

87589707

SUPPORT

Hood

1шт.

39

829-1412

NUT,M12, Cl 10.9

3шт.

40

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.

41

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

3шт.

42

87550203

GUIDE BUSHING

Latch Pin

2шт.

43

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

44

353-408

PLUG,Dome, .750" hole, Nylon

2шт.

45

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

6шт.

46

827-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 10.9

Hood Latch Striker

1шт.

47

87620377

AIR INTAKE TUBE

Support

1шт.

48

87627519

U-BOLT

1шт.

49

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

50

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.
