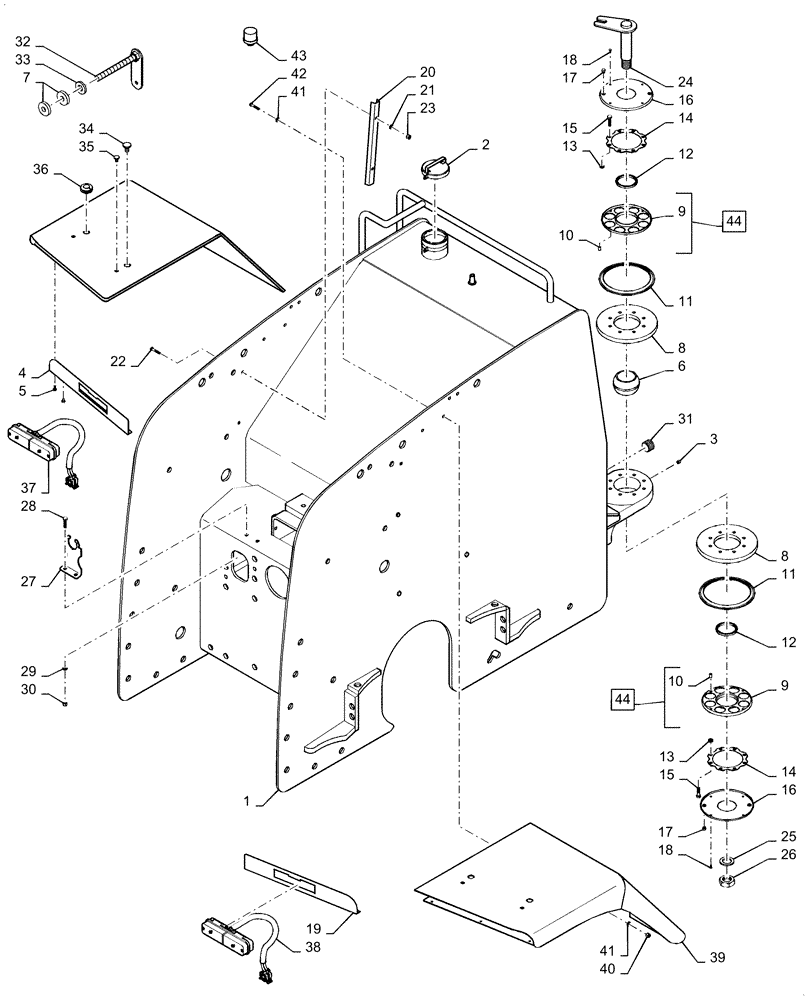

Запчасти Case IH STEIGER 485 (09-46) - REAR FRAME, WHEEL TRACTOR (09) - CHASSIS

1

87318122

DRAWBAR FRAME

Rear, Serial Range: -Z9F112998

1шт.

1

84132899

DRAWBAR FRAME

Rear, Start Serial: Z9F112998

1шт.

2

87555106

LOCKABLE FUEL CAP

1шт.

3

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

2шт.

4

417862A1

COVER

Left-Hand

2шт.

5

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

6шт.

6

87311338

SPHERICAL BEARING,50.98mm ID x 120.64mm OD x 145.2mm W

1шт.

7

321232A1

BUSHING,11mm ID x 31mm OD x 6mm L

2шт.

8

330032A1

COVER

2шт.

9

NSS

NOT SOLD SEPARAT

Housing, Incl in 44

1шт.

10

NSS

NOT SOLD SEPARAT

Spacer, Incl in 44

8шт.

11

433478A1

SEAL

2шт.

12

D95148

WIPER SEAL

2шт.

13

432444A1

SPACER

16шт.

14

430250A1

RETAINER

2шт.

15

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

16шт.

16

87365381

COVER

2шт.

17

163-47

SCREW,Hex, #10 - 32 x 1/2", Gr 5

8шт.

18

86643151

PLUG,Hex Hd, 1/8"-27 NPTF

4шт.

19

417863A1

COVER

Right-Hand

1шт.

20

330164A2

GUARD

2шт.

21

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

22

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

4шт.

23

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

24

87590638

PIN,50.8mm OD x 340mm L

1шт.

25

1-4088

WASHER,45mm ID x 69.9mm OD x 6.35mm Thk

1-3/4" x 2-3/4" x 1/4"

1шт.

26

425-1528

JAM NUT,Jam, 1 3/4"-12, G5, Hvy

1шт.

27

349568A3

PLATE

Mounting

1шт.

28

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

29

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

30

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

31

384163A1

PLASTIC PLUG

1шт.

32

406390A1

HANDLE

Mounting, Articulation Lock

1шт.

33

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

1шт.

34

353-422

PLUG,Dome, 1.250" hole, Nylon

2шт.

35

353-404

PLUG,Dome, .500" hole, Nylon

2шт.

36

87030421

GROMMET,3/8" ID x 1 1/4" Groove Dia, Str Cut

2шт.

37

429385A1

LAMP, WORK

LIGHT, WORK LH, See Figure: 04-27

1шт.

38

417788A1

LAMP, WORK

LIGHT, WORK RH, See Figure: 04-27

1шт.

39

84132900

FENDER

Rear, RH, Start Serial: Z9F112998

1шт.

40

832-10412

NUT,M12 x 1.75, Cl 8

, Start Serial: Z9F112998

5шт.

41

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

, Start Serial: Z9F112998

7шт.

42

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

, Start Serial: Z9F112998

2шт.

43

435545A1

BREATHER

Fuel Tank

1шт.

44

87365383

BEARING ASSY

Inc. 9, 10

2шт.
