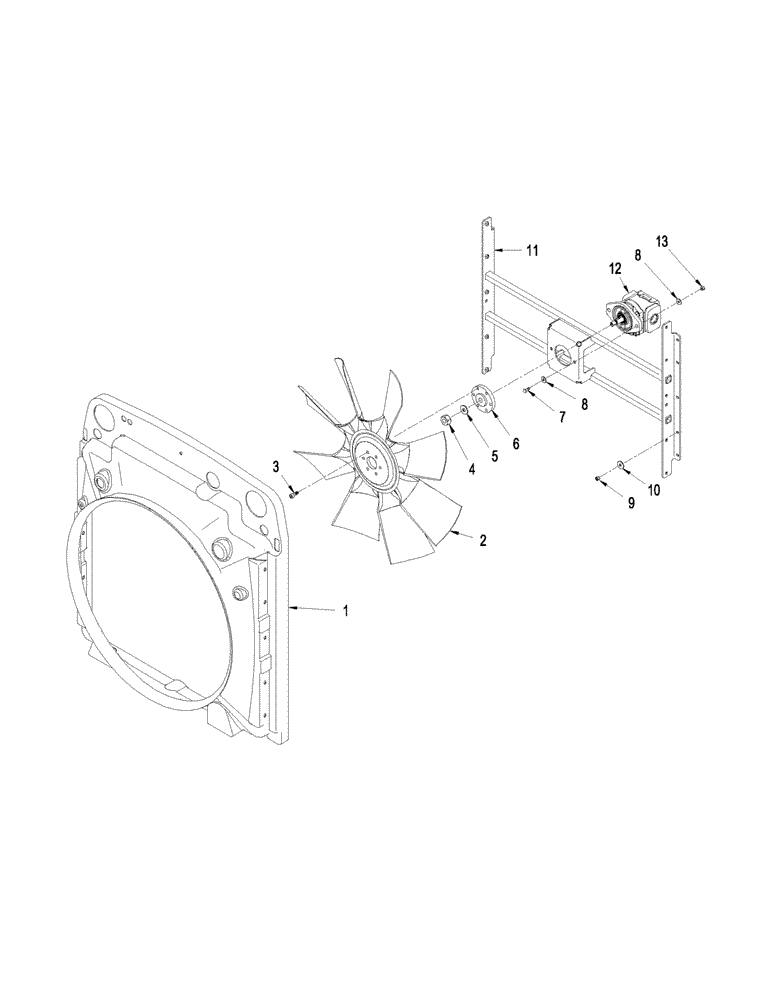

Запчасти Case IH STEIGER 485 (02-06) - HYDRAULIC FAN DRIVE - MOUNTING (02) - ENGINE

1

87392260

SHROUD

Fan, 38", Serial Range: -Z8F110157

1шт.

STEIGER 485

1шт.

1

87470194

SHROUD

Fan, 38", Start Serial: Z8F110157

1шт.

STEIGER 485

1шт.

1

87303558

SHROUD

Fan, 38", Serial Range: -Z8F110157

1шт.

STEIGER 535

1шт.

1

87470192

SHROUD

Fan, 38", Start Serial: Z8F110157

1шт.

STEIGER 535

1шт.

2

87438155

FAN

38"

1шт.

3

863-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

6шт.

4

429-1110

NUT,5/8"-18, G8

1шт.

5

495-11066

WASHER,5/8", SAE

1шт.

6

87387504

FAN

Hub

1шт.

7

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

10шт.

10

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

10шт.

11

87531090

BRACKET

Mounting, Fan

1шт.

12

87356899

HYDRAULIC MOTOR

Fan Drive, 33cc, See Figure: 02-07, Serial Range: -Z8F110157

1шт.

12

87724957R

REMAN-HYD MOTOR

1шт.

12

87724957C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

12

87724957

HYDRAULIC MOTOR,GEAR, 33 CC

Fan Drive, w/ Check Valves, See fige: 02-07, Start Serial: Z8F110157

1шт.

12

87724957R

REMAN-HYD MOTOR

1шт.

12

87724957C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

13

832-10412

NUT,M12 x 1.75, Cl 8

2шт.
